Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | Wenzhou, China |
Brand Name: | GME |
Minimum Order Quantity: | 100 Meters |
---|---|
Packaging Details: | Carton or wooden crate or as per your request |
Delivery Time: | 3~20 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 300000 Meter/Meters per Month |
Model Number: | K, J, T, E, R, S, B, Etc.. | Usage: | Industrial |
---|---|---|---|
Theory: | Temperature Sensor | Accuracy: | Class A |
Temperature Range: | 0-800c | Probe Material: | Stainless Steel |
Highlight: | mineral insulated heating cable,mineral insulated power cable |

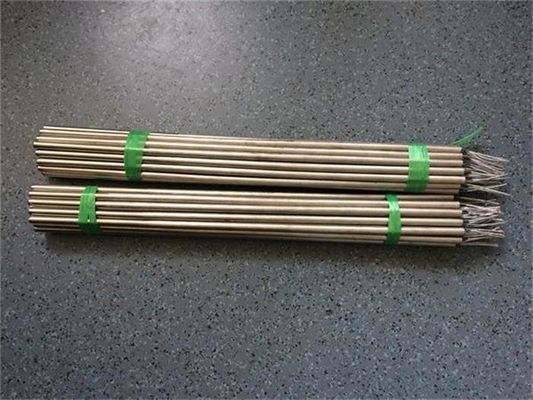

Superfine probe k type thermocouple cable mineral insulated 0.5mm 1.0mm 1.6mm dia
Mineral insulated thermocouple
A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensor for measurement and control, and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive, interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.
Application for mineral insulated thermocouple
Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
Specification for mineral insulated thermocouple
Type | K, J, T, E, R, ect |
connector | none |
Accuracy | Class I |
ltube length | 1m, 2m, 3m, etc. |
Hot Junction | Grounded, Ungrounded |
Temp.Range | 1300 |
tube material | ceramic |
