Mineral Insulated Thermocouple Cable MIC For Manufacturing Armored Thermocouples

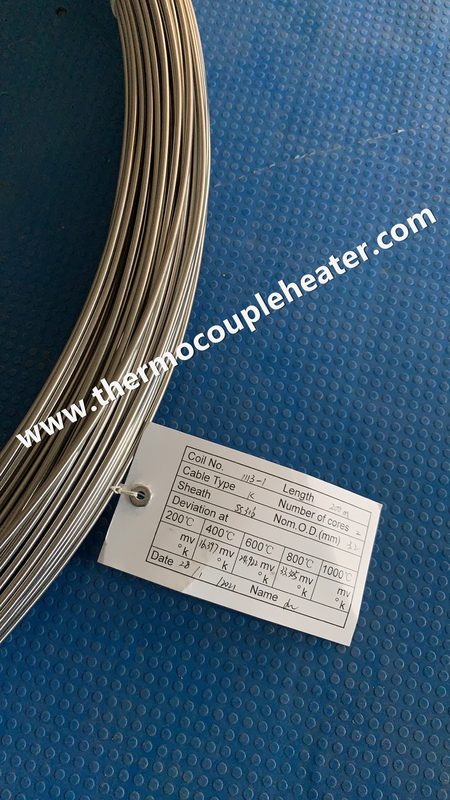

Large Image : Mineral Insulated Thermocouple Cable MIC For Manufacturing Armored Thermocouples

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	50 meters
Packaging Details:	Standard exporting packing
Delivery Time:	7-10 working days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	10,000 pieces per month

Contact Now

Detailed Product Description

Type:	K/N/T/J/E/B/S/R	Insulator:	MgO
Sheath Material:	Stainless Steel, Inconel, Etc.	Core Number:	2/4/6 Cores
Outer Diameter:	0.5-12.7mm	Usage:	Manufacturing MI Thermocouples
Highlight:	Armored Mineral Insulated Thermocouple Cable , Manufacturing Mineral Insulated Thermocouple Cable , Mineral Insulated Thermocouple Cable MIC

Mineral Insulated Thermocouple Cable MIC For Manufacturing Armored Thermocouples

1. Overview

Ml cables is the mould-pressed solid Integrity of combined stainless steel protective pipe , magnesium oxide insulation powder and thermocouple materials. Its merits include press endurance, vibration resistance, bending capability, mini size, quick respond, etc. It acts as the key material of Ml thermocouple.

2. Features

Mineral insulated cable is widly applied in industry, a proven choice for high temperature probe fabrication.

High temperature resistance, anti-corrosion, anti-oxidation, long life time and rapid heat reponse.

Sheath material can be selected to fit different applications.

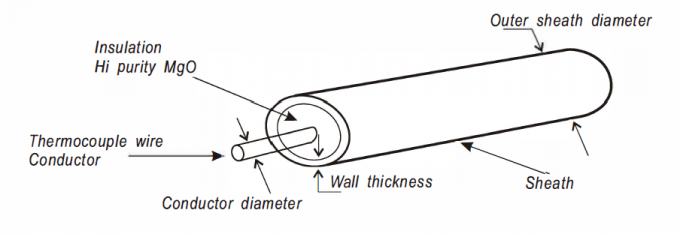

3. Structure chart

Mineral Insulated Thermocouple Cable MIC For Manufacturing Armored Thermocouples 0

4. Structure data:

Mineral Insulated Thermocouple Cable MIC For Manufacturing Armored Thermocouples 1

* High quality semi-finished Ml probe is on offer. Nice endings, high accuracy conforms to IEC584, gounded&ungrounded, minimum outer sheath diameter 0. 5mm for Ml thermocouple probe ungrounded, professional packing condition for protecting bare wires.
