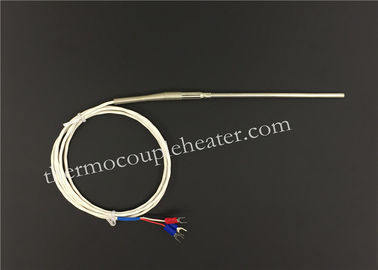

High mechanical strength Mineral Insulated Thermocouple RTD Sensor Pt100

High mechanical strength Mineral Insulated Thermocouple RTD Sensor Pt100

High mechanical strength Mineral Insulated Thermocouple RTD Sensor Pt100

Product Details:

Place of Origin: China
Certification: ISO9001/ CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or as per your request
Delivery Time: 7~20 working days
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Product Name: Mineral Insulated RTD Sensor Pt100 Application: Temperature Sensor For Industry
Max.temperature: -200 To 250°C Probe Material: 316SS
High Light:

temperature sensor rtd

,

temperature sensor rtd pt100

Mineral Insulated RTD Sensor Pt100



Product  Description:



RTDs are temperature sensors contain a resistor that changes resistance value as its temperature changes. They have been used for measuring temperature in laboratory and industrial processes, and have a good reputation for accuracy, repeatability, and stability.



Specification:



Probe Outside Diameter

3mm, 4mm, 5mm,6mm

RTD Element Type

1xPt100

2xPt100

1xPt1000

2xPt1000

RTD wire connection

2 wire configuration

3 wire configuration

4 wire configuration



Wire Description

24 Gage Stranded Stainless Steel Braid

Flexible Armor Cable

24 Gage Stranded Fiberglass Cable

24 Gage Stranded Cable

Termination type

90mm split leads and Bare Ends.

90mm split leads and spade lugs.

Standard Male Plug (2 & 3 wire configuration only)

Standard Female Jack(2 & 3 wire configuration only)

Mini Male Plug(2 & 3 wire configuration only)

Mini Female Jack(2 & 3 wire configuration only)





Calibration

Nominal resistance(0°C) Ω

Temperature measuring range °C

tolerance

R100/ Ro

w

Pt10

10

ceramic elements:-200 ~ 600

mica elements: -200 ~ 420

ClassA: ±(0.15+0.2%|t|)

ClassB: ±(0.3+0.2%|t|)

 1.3851

Pt100

100

Cu50

50

-50 ~ 100

±(0.3+0.6%|t|)

1.4280

Cu100

100




Feature:



1. Easy assembly and convenient for replacement;
2. Spring thermal element with good shock-proof performance;
3. Wide mesuring range (0~1600 degree Celsius);
4. High mechanical strength and good pressure-resistant performance


Application:


Automotive, engine test cells
Co-Energy, solar, coal-gasification, fossil fuel, & nuclear
Fuel cells
Food & Beverage
Ovens & Chillers
Industrial processes
Medical
Pharmaceuticals
Chemical & Petrochemical
R&D
