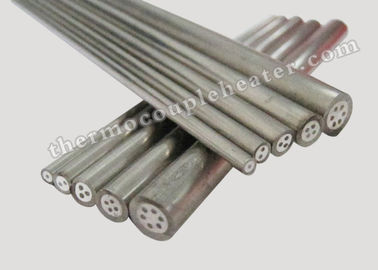

Type T Mineral Insulated Thermocouple Cable 12.7mm Triplex Inconel Sheathed

Type T Mineral Insulated Thermocouple Cable 12.7mm Triplex Inconel Sheathed

    • Type T Mineral Insulated Thermocouple Cable 12.7mm Triplex Inconel Sheathed
    • Type T Mineral Insulated Thermocouple Cable 12.7mm Triplex Inconel Sheathed
    • Type T Mineral Insulated Thermocouple Cable 12.7mm Triplex Inconel Sheathed
  • Type T Mineral Insulated Thermocouple Cable 12.7mm Triplex Inconel Sheathed

    Product Details:

    Place of Origin: China
    Certification: ISO9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 100Meters
    Price: Negotiable
    Packaging Details: Carton or wooden crate or as per your request
    Delivery Time: 3~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 300000 Meter/Meters per Month
    Contact Now
    Detailed Product Description
    Product Name: Type T 12.7mm Triplex Inconel Sheath Mineral Insulated Thermocouple Application: Industrial Temperature Sensor
    Diameter: 12.7mm Accuracy: Class I
    Calibration: Type T Core: Triplex
    Conductor: 6 Wires Sheath Material: Inconel 600
    High Light:

    mineral insulated heating cable

    ,

    mineral insulated power cable

    ,

    Mineral Insulated Thermocouple Cable 12.7mm

    Type T 12.7mm Triplex Inconel Sheath Mineral Insulated Thermocouple Cable



    Product Description:

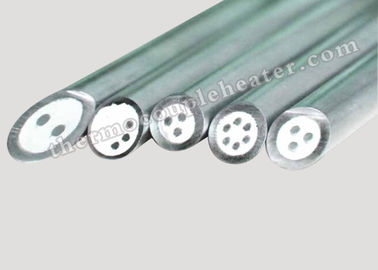

    Mineral insulated thermocouple cables have an outer sheath of metal with 2 to 8 conductors of thermocouple base material. The insulation material is made from a highly compressed metal oxid powder(MgO).
    Mineral insulated cables are designed for high-temperature applications and are used wherever there are particularly strict requirements with regard to mechanical, chemical and electrical stability.



    Type T Mineral Insulated Thermocouple Cable 12.7mm Triplex Inconel Sheathed

    Sheath Diameter available

    From 0.25mm to 12.7mm

    Calibration Available

    J, K, T , E , N



    Sheath Material

    304 Stainless Steel

    316 Stainless Steel

    310 Stainless Steel

    Inconel 600

    Incoloy800

    Wire Number

    Simplex, Duplex, Triplex



























    Sheath Material

    Continuous Max. Temperature

    Melting Temperature

    Application Notes

    304

    900°C

    1400°C

    Good resistance to corrosion and oxidation

    316

    925°C

    1370°C

    Good corrosion resistance and creep strength at elevated temperatures (Mo). Resists tendency to pit in phosphoric and aetic acids. Withstands sulphuric acid compounds.

    310S

    1100°C

    1400°C

    High temperature strength and scale resistance. Good resistance to carburising and reducing envirnoments. Withstands sulphurous gas at elevated temperatures (high Ni-Cr)

    INC600

    1150°C

    1400°C

    High corrision resistance at elevated temperatures. High hot strength. Used in sulphur-free environments. Resists oxidising and reducing atmospheres.



    Conductor

    Calibration

    Accuracy

    I

    Tolerance

    Temperature

    Ni Cr - Ni Si

    K

    1.5 or 0.4%t

    -40~1000

    Ni Cr Si- Ni Si

    N

    -40~1000

    Ni Cr - Konstantan

    E

    -40~800

    Fe - Konstantan

    J

    -40~750

    Cu - Konstantan

    T

    1.5 or 0.4%t

    -40~350

    Pt Rh 10 - Pt

    S

    1 or 1+(t-1100)x0.003

    0~1600

    Pt Rh 13 - Pt

    R

    0~1600

    Pt Rh 13 - Pt Rh 6

    B

    ---

    ---



    Feature:



    1. Stainless Steel Sheath 304, 310, 316, 321SS
    2. Inconel 600 Sheathing
    3. J, K, N, T, E Wire Calibration Available
    4. M.I. Cable with MgO
    5. High Purity and Standard MgO
    6. Inch and Metric Diameters
    7. .010” upto 0.50” Diameter
    8. Special Limits SLE or Standard Grade
    9. Can Be Welded, Bent or Formed
    10. Withstands High Temperatures and Pressures



    Application:



    The use of mineral insulated thermocouple cables is preferred in areas where mounting is difficult and where a high degree of flexibility is required. The minimum bending radius is 3 times the outer diameter of the mineral insulated cable. Innovations in technology and manufacturing have made it possible for these cables to be used increasingly frequently as a material in the manufacture of standardized thermocouples and RTDs, in particular in industrial measuring and control technology and in automotive sensor technology.
