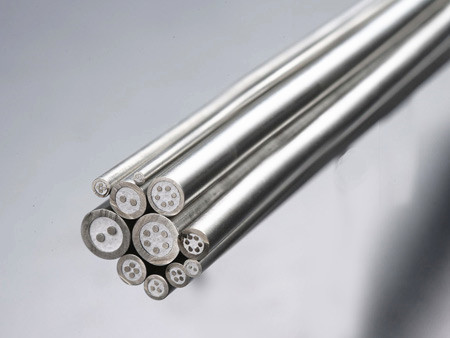

Type K 4 Core diameter 7.2MM Mineral Insulated Thermocouple Cable , Mineral Insulated Heating Cable

Large Image : Type K 4 Core diameter 7.2MM Mineral Insulated Thermocouple Cable , Mineral Insulated Heating Cable

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1000 meter
Price:	negotiation
Packaging Details:	export carton box
Delivery Time:	30 days after receiving full payment
Payment Terms:	L/C, T/T, Western Union,paypal
Supply Ability:	500000meter/month

Contact Now

Detailed Product Description

Type:

Diameter:

7.2mm

Highlight:

mineral insulated metal sheathed cable

mineral insulated heating cable

type K 4 core mineral insulate thermocouple cable

Product Details:

Name: Mineral Insulated Cable

Type: K, N, E, J, T

Conductor material: NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Insulator: 99.6% high purity MgO

Core number: 2, 4, 6

Sheath material: SS321(SS304), SS316, SS310, INCL600,601, Nicrobell,SS446,SS347,800,800H,825,INCONEL601,INCONEL625,GH4145 and GH3128

Dia(mm): from 0.25mm to 12.7mm

Application: connecting with thermocouple and instrument machine

MOQ: 1000m

Electric property:

Resistance value allowance:±10%

Dielectric property:heating cable pressure resist:1200V AC/1min

Insulation resistance:end product test:100MΩ/500VDC

Sheath continuity:all the heating cable submerged in the water 12 hours then test the insulation resistance,the value should be 50M/500VDC at least.

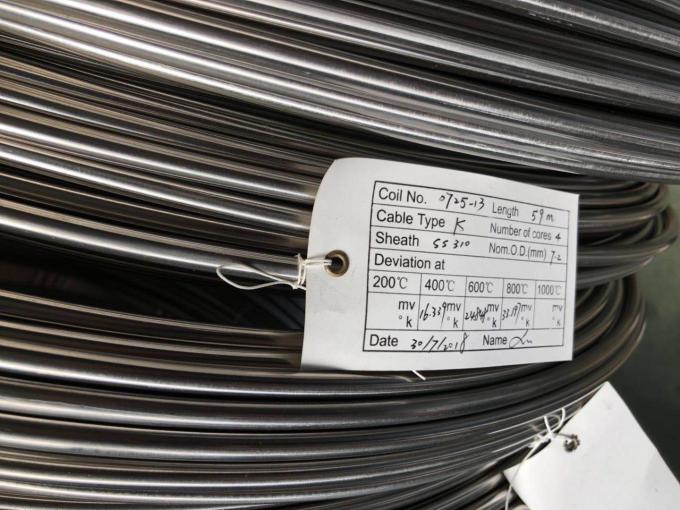

Type K 4 Core diameter 7.2MM Mineral Insulated Thermocouple Cable , Mineral Insulated Heating Cable 0

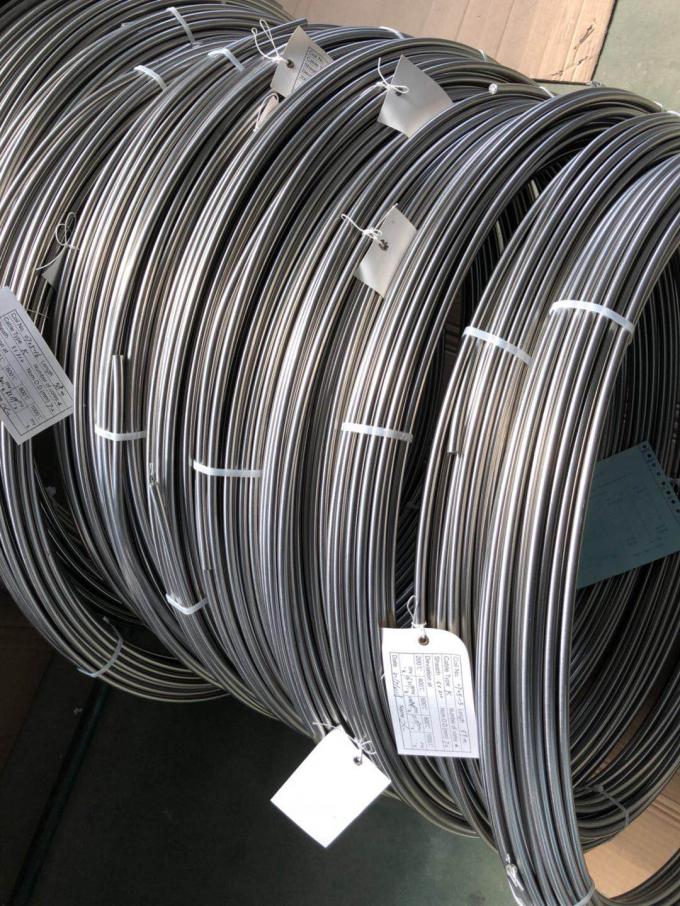

Type K 4 Core diameter 7.2MM Mineral Insulated Thermocouple Cable , Mineral Insulated Heating Cable 1
