Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE, RoHs |
| Model Number: | Type K, J |
| Minimum Order Quantity: | 100 |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 7-10 days |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 10000m/month |
| Material: | Cr20 Ni80 | Usage: | Industrial Area |
|---|---|---|---|
| Mod Type: | TypeK, J, E | Theroy: | Temperature Controller |
| Diameter: | 6mm | Wire Number: | 2 Conductors |
| Temperature: | 0℃ To 900℃ | Compensation Wire: | 1000mm |
| Highlight: | mineral insulated heating cable,mineral insulated power cable |
||

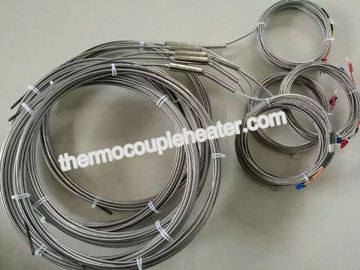

6mm diameter Mineral insulated thermocouple in SS316/310/Inconel 600 with 1000mm wire
Description:
1) Thermocouple Cables are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.
2) A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature,
3) GME providing Thermocouples are manufactured in different combinations of metals. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
Specification:
1.Graduation Mark: K; ( N,J,T,E type available)
2.Wire number: Duplex type( 4 cores);
3.Material of the outer protection tube: A-304/321(0Cr18Ni9) ;
4.Diameter of outer tube: 4.5mm; (Diameter from 0.5mm to 8.0mm)
5.Thickness of outer tube: 0.52mm;
6.Inner core element: NiCr/NiSi;
7.Diameter of core wire: 0.67mm
Performance Capabilities
| Conductor material |
Wire Calibration |
Accuracy | |||
| Class | Class | ||||
| Accuracy | Temperature range() | Accuracy | Temperature range() | ||
| Ni Cr-Ni Si | 1.5 or 0.4%t |
-40-1000 | 2.5 or 0.75%t |
-40-1000 | |
| Ni Cr Si-Ni Si | -40-1100 | -40-1200 | |||
| NiCr-Konstantan | -40-800 | -40-800 | |||
| Fe-Konstantan | -40-750 | -40-750 | |||
| Cu-Konstantan | 1 or 0.4%t |
-40-350 | 1.5 or 0.75%t |
-40-350 | |
| Pt Rh 10-Pt | 1or 1+t-1100× 0.003 |
0-1600 | 1.5 or 0.25%t |
0-1600 | |
| PtRh 13-Pt | 0-1600 | ||||
| Pt Rh30-PtRh 6 |
600-1700 |
||||
Application:
Best suited to High-temperature stationary surfaces
Automotive industries
Chemical and petrochemical industries
Energy and power plant technology
Heating, ventilation, air-conditioning
Machinery, plant and tank measurement
Plastics and rubber industries
Power and utilities
Pulp and paper
Water and wastewater treatment
Package and Delivery:
Packaging Details: Carton box package. As the order quantity and customer requirement.
Delivery Detail: By sea/ air. About 7 days, as the order quantity.
