Home ProductsHot Runner Temperature Controller

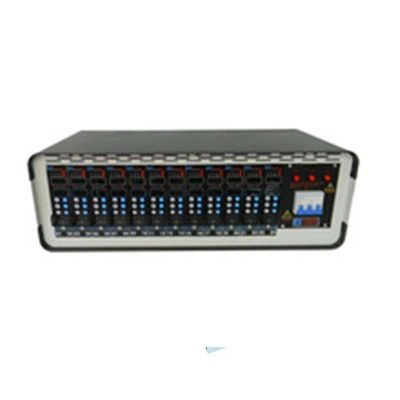

PID Temperature controller Hot Runner Temperature Controller for Injection molding

Home ProductsHot Runner Temperature Controller

PID Temperature controller Hot Runner Temperature Controller for Injection molding

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

PID Temperature controller Hot Runner Temperature Controller for Injection molding

China PID Temperature controller Hot Runner Temperature Controller for Injection molding supplier

Large Image :  PID Temperature controller Hot Runner Temperature Controller for Injection molding

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE, ROHS

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Packaging Details: Standard export packing
Delivery Time: 1 month
Payment Terms: T/T, Western Union
Supply Ability: 2000 Piece/Pieces per Week
Verified Supplier

China

  • Product Details
Detailed Product Description
Rated Voltage: 180V AC -240V AC 50HZ Power Consumption: 2.5W
Accuracy Class: ±0.5%FS Work Environment: Temperature: 0°C ~50°C, RH: 35%~85%
Display Accuracy: 0.1°C Connection Methods: Terminal
High Light:

thermostat temperature controller

,

hot runner temperature controller

1. Short Description

Rated voltage 180V AC -240V AC 50HZ Power Consumption 2.5W
Accuracy class ±0.5%FS Work environment

Temperature: 0°C ~50°C,

RH: 35%~85%

Display accuracy 0.1°C Connection methods Terminal
Color: black



Packaging & Delivery

Packaging Details: in Cartons
Delivery Detail: 1 -15 days



XMT 2C Series Temperature Controller: uses SCM to control the circuit. Analog IC uses multiple filter and high accuracy amplifier. PID and self tuning function are programmed in software. We choose high quality components for the meter as well. All these endow the meter high performance in control.



2. Product Model:



XMT 1 - 2 3 4 5 - 6 7 8 9 10 11 12



SN Name Explanation



1

Outer Dimension (mm)

A: 48X48X85 B: 48X96X82 C: 96X48X82

D: 72X72X82 E: 96X96X82 G: 160X80X70

2 Design Code 2C: 2C series product
3 Control Methods 0: PID control 1: step control
4 Input Methods 1: Thermocouple 2: RTD
5 Output Methods 1: Break Output 2: Continuous Output
6 Refrigerating Methods

0: No Refrigerating 1: Step Refrigerating

2: Proportional Refrigerating 3: PID Refrigerating

7 Alarm Methods 0: No alarm 1: upper limit upward alarm 2: lower limit downward alarm 3: upper/lower limit alarm 4: lower limit upward alarm 5: upper & lower limit alarm 6: upper/lower limit upward alarm 7: lower limit downward keep alarm 8: absolute value alarm 9: upper & lower limit keep alarm
8 Input Type 1: K 2:E 3:S 4:Pt100 5: Cu50 6:J
9 Output Type

1: relay contact switch output

2: logic electrical level output (to control SSR)

3: single phase SCR Zero-crossing trigger outputto control thyristor

4: 4-20mA current output

5: 0-5V voltage output

6: 0-10V voltage output

7: phase shift trigger SCR

8: 0-10mA current output

10 Refrigerating Type 0: no refrigerating output 1: relay contact switch output 2: logic level output (used to control SSR) 3: single-phase SCR zero-crossing trigger output (used to control thyristor)
11 Alarm Type 0: no refrigerating output 1: relay contact switch output 2: logic level output (used to control SSR) 3: single-phase SCR zero-crossing trigger output (used to control thyristor)
12 Temperature range (°C) 1: 0-100 2:0-150 3:0-400 4 : 0-600 5:0-800 6:0-999 7:0-99.9



PID Temperature controller Hot Runner Temperature Controller for Injection moldingPID Temperature controller Hot Runner Temperature Controller for Injection moldingPID Temperature controller Hot Runner Temperature Controller for Injection moldingPID Temperature controller Hot Runner Temperature Controller for Injection molding
