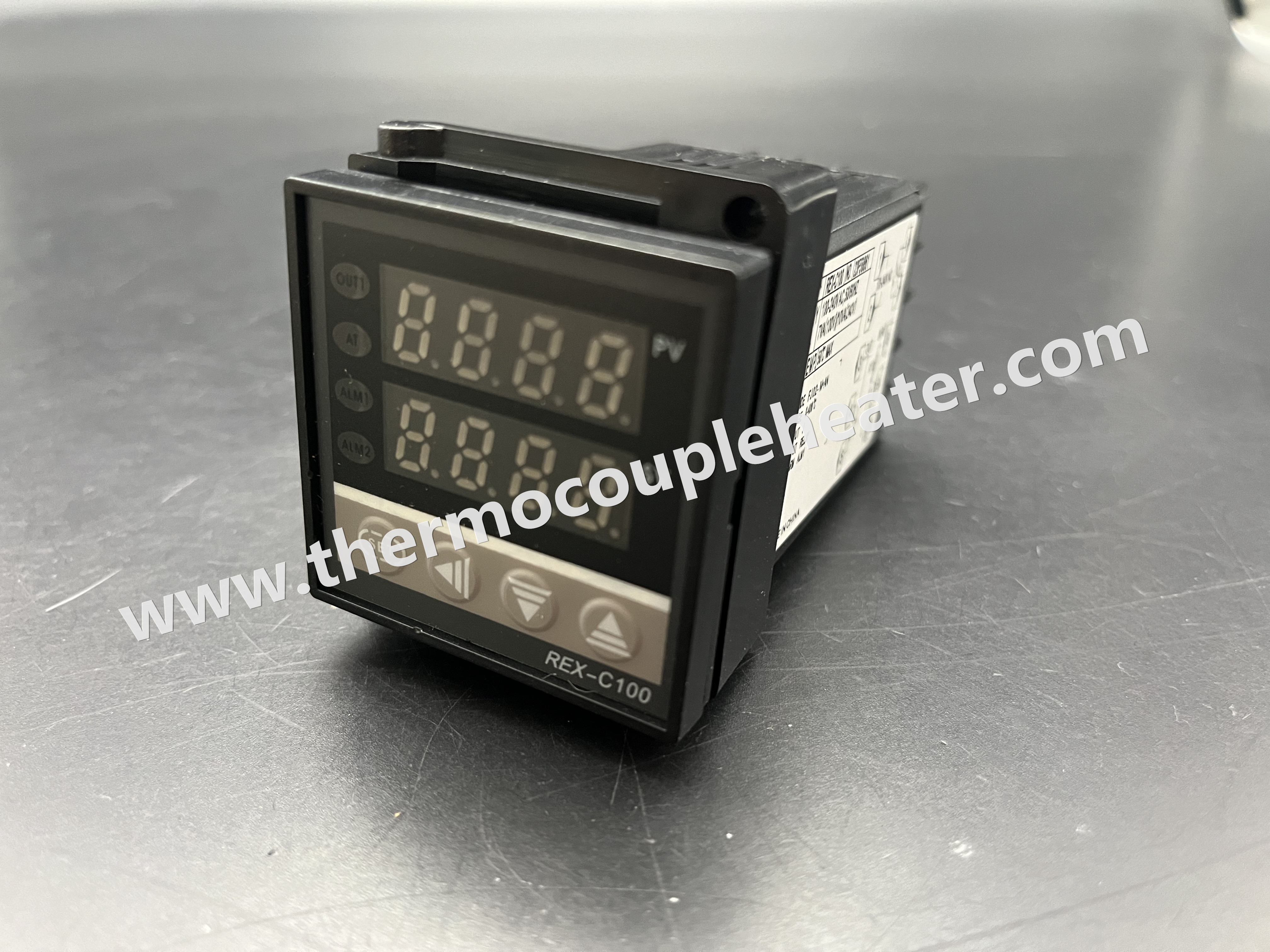

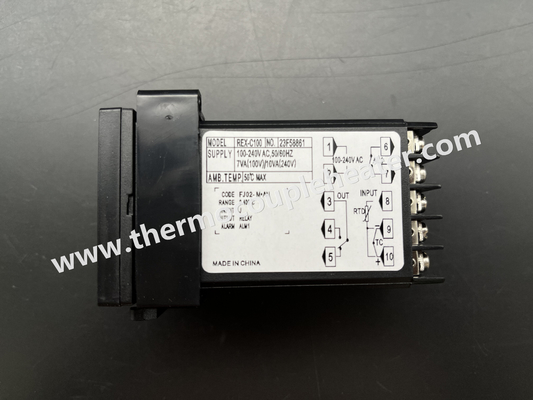

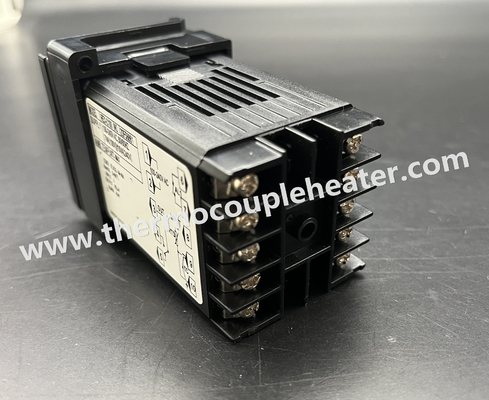

REX Series PID Temperature Controller C100 48x48
1. General Description:
REX series PID Temperature Controller is adopts special microcomputer adjusting meter that employs switching power and surface mount technology (SMT), therefore, the controller is quite smart and reliable. Its special functions like auto diagnosing, auto setting and intelligent control. It can be used widely in the display and control of the parameter of the temperature, pressure, flow, and liquid level.
2. Main technical index:
1) Input:
Thermocouple(TC),Resistance Temperature Detect(RTD)
Standard Current and voltage signals.
2) Display:
Process Value(PV), Setting Value(SV):-1999~+1999
Output ( OUT1 , OUT2 ) Alarm ( ALM1 , ALM2 ) Auto setting(AT)
Display: LED
3) Control Way
(1).PID Control(including ON/OFF, position PID and continuous PID)
(2).Auto Setting Control
4) Accuracy
Measurement Accuracy:±0.5%FS
Compensation error of cold terminal: ±2℃(amend within 0~50℃ by soft)
Resolution:14bit. Samplingperiod:0.5Sec.
5) Setting Range:
Setting Value(SV): same range with PV
Proportional Band(P):0~full range(ON/OFF Control when set to 0)
IntegrationTime(I):0~3600Sec(no integral action when set to 0)
Derivative Time(D):0~3600Sec(no derivative action when set to 0)
Proportional Period:1~100Sec
On-off control output hysteretic loop width:1~100℃(or other PV units)
6) Control Output
(1)Currency output: DC 0~10Ma,4~20mA(RL<500Ω)
(2)Voltage output: DC 0-5V,1-5V(RL>10K)
(3)Relay output: Contact capacity:250V AC 3A(resistive load)
(4)Voltage Impulse output:0-12V(applicable for solid state relay SSR)
(5)Silicon Controlled Rectifier(SCR) output: zero-cross triggering or phase-shift triggering(resistive load)
(6)Alarming function output: 2 groups output at most,12 modes
Output Contact Capacity:250V AC 3A
7) Other Parameters
(1)Insulation resistance:>50MΩ(500V DC)
(2)Insulation strength:1500V AC/min
(3)Power consumption:<10V
(4)Service environment:0~50℃,30~85RH,no corrosive gas
(5)Weight:abt.0.5Kg(C900 type)

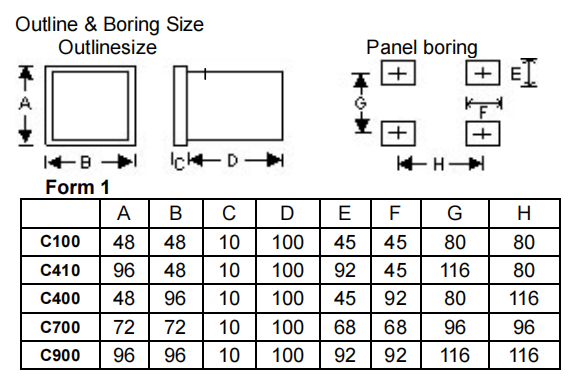

3. Outline, Mounting, Boring
