Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE/UL/CSA/ISO |
| Minimum Order Quantity: | I PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Carton Package or as Customer Request |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | T/T, Western Union, L/C,PayPal |
| Supply Ability: | 10pcs/Month |
| Product Name: | Temperature Controller | Application: | Temperature Measurement |
|---|---|---|---|
| Temperature Range: | 0-450°C | Temperature Stability: | ±0.5% |
| Thermocouple Type: | K/J Optional | Control Accuracy: | ±0.5 °C |
| High Light: | thermostat temperature controller,hot runner temperature controller |
||

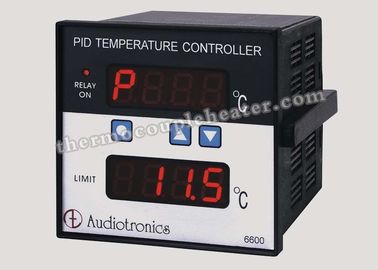

Measuring Instrument Hot Runner Temperature Controller , Temperature Regulator
1. Description:
1. PID auto tuning, Two PID control processes, with two individual outputs.
2. Multi range input (TC,RTD,mV), each 14 BIT resolution.
3. Relay output, SSR drive, 4~20mA changeable by a module.
4. Three-point alarm, with 19 alarm modes.
5. Non-Volatile memory.
6. Self-diagnosis function.
7. Auto Zero and Auto Span circuit keep good accuracy.
8. Free range voltage from AC 85V~265V.
9. Data lock function.
10. Input 2 can be used in Remote SV.
11. Optional transmitter output.
12. With output percentage control, if sensor broken the controller automatically convert to manual operation to be controlled by heating power with output percentage.
13. Standard type with 1 ramp and 1 sock available or 2 patterns each 8 segments programming procedure.
RS232 or RS485 is available for remote monitoring.
2. Specifications:
|
Power Supply |
AC85~265V,50/60Hz |
|
Accuracy |
±0.5%F.S. |
|
Input Signal |
1. Thermocouple (K, E, J, N, T, B, S); 2. RTD (Pt100, Pt1000, Cu50, Cu100); 3. Current (DC.0~20mA, DC.4~20mA); 4. Voltage (DC.0~250mV, DC.0~10V); 5. Resistor (0~80Ω, 0~400Ω). |
|
Control Output |
6. Relay contact, AC250V/3A; 7. SSR Drive (Voltage pulse); 8. SCR Drive (zero-crossing); 9. DC.4~20mA, DC.0~10V. |
|
Alarm Mode |
Absolute, Deviation, Range |
|
Communication(optional) |
RS485 |
|
Aux Output |
Micro-printer drive,DC24V feedback |
|
Panel Size (mm) |
48*48,72*72,48*96,96*96,160*80 |
3. Applications:
Temperature Deviation Alarms
Non-touch transfer
Heater current monitor
Soft start function
Manual output mode
Overall error indicator, easy to find error reason
Output module rating 15A per Point
4. Advantages
Adjustment period comparisons
|
|
First cycle |
Second cycle |
Third cycle |
|||||||
|
Brand |
Set |
Measured (High) |
Measured (low) |
period |
Measured (High) |
Measured (low) |
period |
Measured (High) |
Measured (low) |
period |
|
MASTIP |
200℃ |
213.6 |
192.7 |
8′00″ |
201.2 |
196 |
8′20″ |
200 |
196.7 |
3′44″ |
|
Ours |
200℃ |
205.2 |
199.9 |
1′38″ |
201.8 |
200.5 |
2′36″ |
201 |
200.5 |
2′45″ |
|
MASTIP |
230℃ |
236.5 |
220.1 |
4′22″ |
230.3 |
226.3 |
3′36″ |
227.8 |
227.1 |
3′40″ |
|
Ours |
230℃ |
233.5 |
228.7 |
1′30″ |
231.1 |
229.2 |
2′14″ |
230.5 |
229.4 |
1′41″ |
|
MASTIP |
260℃ |
272 |
255.7 |
5′05″ |
260.7 |
256.3 |
4′09″ |
259.9 |
256.4 |
4′00″ |
|
Ours |
260℃ |
263 |
257.9 |
1′43″ |
260.6 |
258.2 |
1′22″ |
260 |
258.6 |
1′30″ |
