Aluminium ADC12 KNC Thermocouple Connection Head For Thermocouple

Aluminium ADC12 KNC Thermocouple Connection Head For Thermocouple

1. Specification

2. Description:

1. KNC Thermocouple head
2. Type: KNC, all type available
3. Material: Aluminum(ADC-12), Stainless steel
4. Wire entry: M20*1.5, G1/2’’, G3/4’’, NPT1/2’’, NPT3/4’’
5. Tube entry: M12*1, M16*1, M20*1, M22*1, M24*1, M27*1’’, M33*1, G1/2’’, G3/4’’,
6. NPT1/2’’, NPT3/4’’

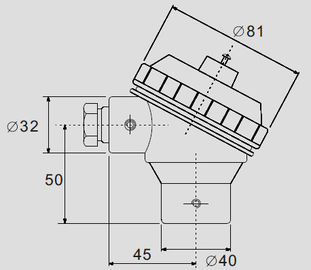

7. Hole to hole distance: H=33±0.1mm, H=36±0.1mm, H=40±0.1mm
8. Weight: 274g/pc
9. Standard wire entry and probe entry;
10. Wide range of specification;
11. High precision painting
12. Accessory: cover sealing and cable gland sealing in silicone free material
13. Protection level: IP65 of IEC529 Enclosure protection class
14. Ceramic terminal block: 2p-c, 3p-c, 4p-c, 6p-c
15. Bakelite terminal block: 2p-b, 3p-b, 4p-b, 6p-b
16. Place of Origin: China (Mainland)
17. Eco-friendly: Yes
18. MOQ: 50PCS
19. Certificate: ISO,
20. Making sample time: all type in stock
21. Trade term: FOB, EXW, CIF, CFR
22. Payment term: T/T, Western Union, Paypal

3.  Applications:

Connecting with thermocouple and instrument machine

4. Competitive Advantage:

1. Beautiful outlook and good performance
2. Suitable for all kinds of thermocouple or thermal resistance
3. Small minimum order quantity
4. All sizes available
5. Make head with logo according to your demand
6. Excellent corrosion resistance
7. Moisture and dust-resistant
8. High precision painting
