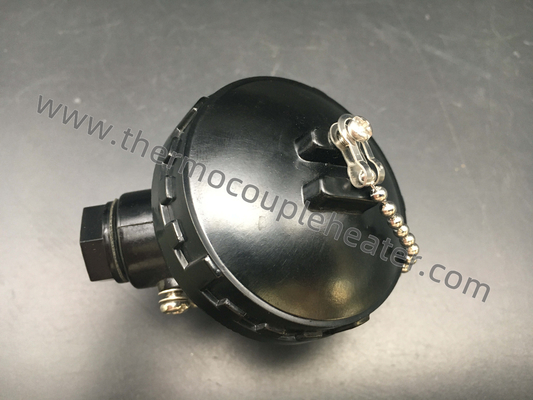

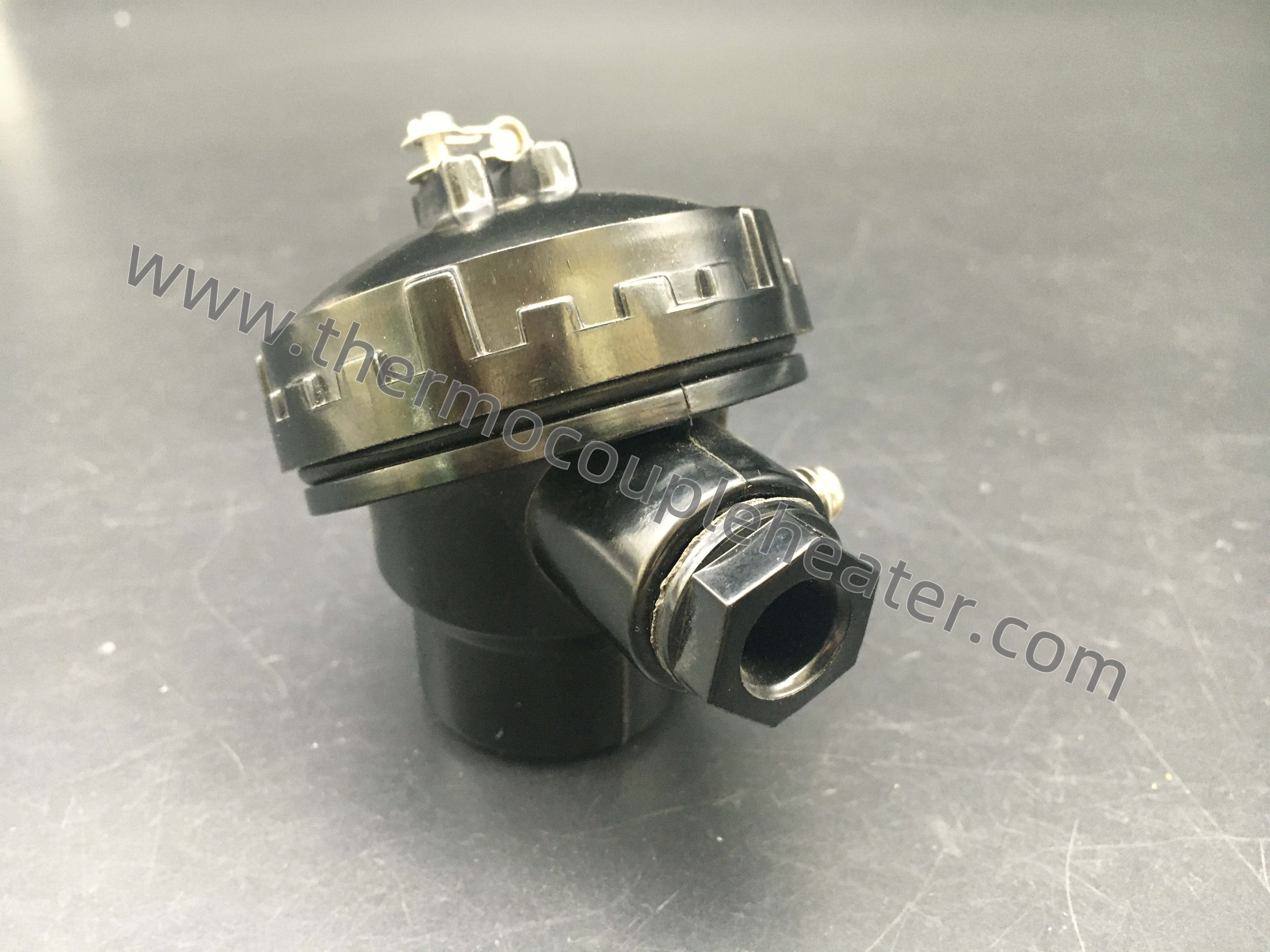

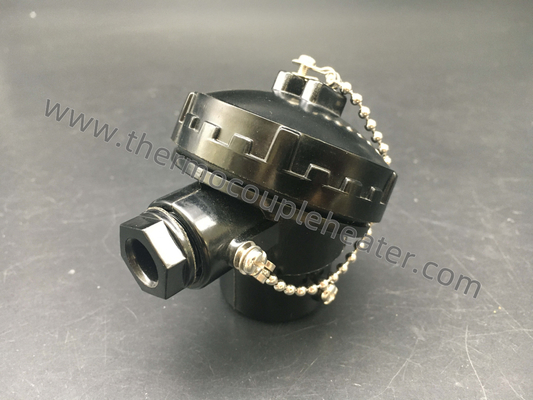

Bakelite Plastic Thermocouple Head RTD PT100 Connection Head Type KSB

Bakelite Plastic Thermocouple Head RTD PT100 Connection Head Type KSB

    • Bakelite Plastic Thermocouple Head RTD PT100 Connection Head Type KSB
    • Bakelite Plastic Thermocouple Head RTD PT100 Connection Head Type KSB
    • Bakelite Plastic Thermocouple Head RTD PT100 Connection Head Type KSB
  • Bakelite Plastic Thermocouple Head RTD PT100 Connection Head Type KSB

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Model Number: KSB

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Packaging Details: Standard exporting package
    Delivery Time: 10-20 Working Days
    Payment Terms: L/C, Western Union, T/T, Paypal
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Usage: Connection Between Thermocouple And Extension Wire Type: KD,KMC,KNE, KNY, KB, CMS, KSB, KSE, KSY, DAN, Etc.
    Material: Alluminum, Stainless Steel, Bakelite Or Iron Terminal Block: 2 Poles, 3 Poles, 4 Poles, 6 Poles
    Fitting Block: 47mm Thread: Metric, NPT, BSPP
    Protection Class: IP65 Color: Silvery, Orange, Red, Blue, Black, Customized.
    High Light:

    Bakelite Plastic Thermocouple Head

    ,

    Thermocouple Head RTD PT100 Connection

    ,

    KSB Thermocouple Connection Head

    Bakelite Plastice Thermocouple Head RTD PT100 Connection Head Type KSB





    1. Description:



    This heavy duty thermocouple is specifically designed for temperature sensing in arduous industrial environments such as blast or carburizing furnaces, kilns, large ovens and galvanising baths where their robust construction ensures a prolonged sensor life.

    Thermocouple head is widely used in thermocouple and RTD assembly. It can be made of aluminium, stainless stee, bakelite or iron. Protection class IP65.



    2. Specifications:



    1. Approved IEC529 IP65
    2. Thermocouple or RTD head
    3. Type: KD,KMC,KNE, KNY, KB, CMS, KSB, KSE, KSY, DAN, etc., all types available
    4. Material: Alluminum, stainless steel, bakelite or iron
    5. Wire entry: M20*1.5, NPT1/2’’, NPT3/4’’, G1/2’’, G3/4’’
    6. Probe entry: M24*1.5, M16*1, G1/2’’, G3/4’’,NPT1/2’’, NPT3/4’’
    7. Ball chain or Jack chain available
    8. Terminal block: 2P, 3P, 4P, 6P ,8P
    9. Terminal block material: Bakelite or ceramic.
    10. Wide range of specification;
    11. High precision painting
    12. Accessory: cover sealing and cable gland sealing in silicone free material
    13. Protection level: IP65 of IEC529 Enclosure protection class
    14. Place of Origin: China (Mainland)

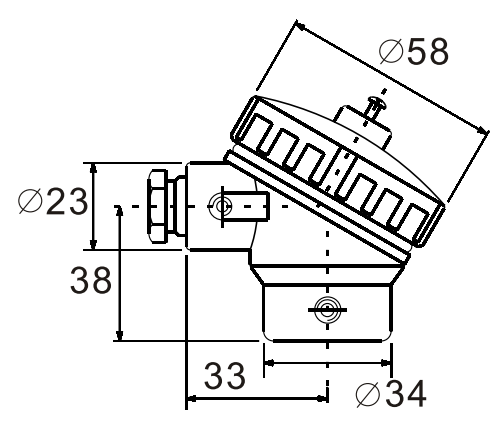

    3. Technical Drawing:



    Bakelite Plastic Thermocouple Head RTD PT100 Connection Head Type KSB
