Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Model Number: | KMC |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Packaging Details: | Standard exporting package |
| Delivery Time: | 10-20 Working Days |
| Payment Terms: | L/C, Western Union, T/T, Paypal |
| Supply Ability: | 10000pcs per month |
| Usage: | Connection Between Thermocouple And Extension Wire | Type: | GME-125 |
|---|---|---|---|
| Material: | Alluminum Or Stainless Steel | Terminal Block: | 2 Poles, 3 Poles, 4 Poles, 6 Poles |
| Thread: | Metric, NPT, BSPP | Protection Class: | IP65 |
| Explosion-Proof: | Yes | ||
| High Light: | Explosion-Proof Thermocouple Head,SS304 Thermocouple Head |
||

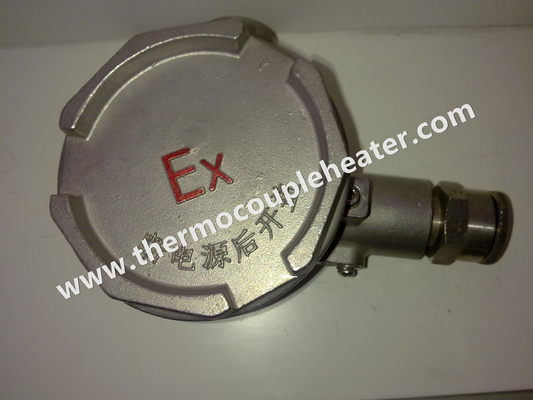

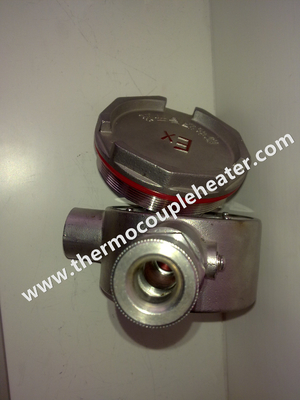

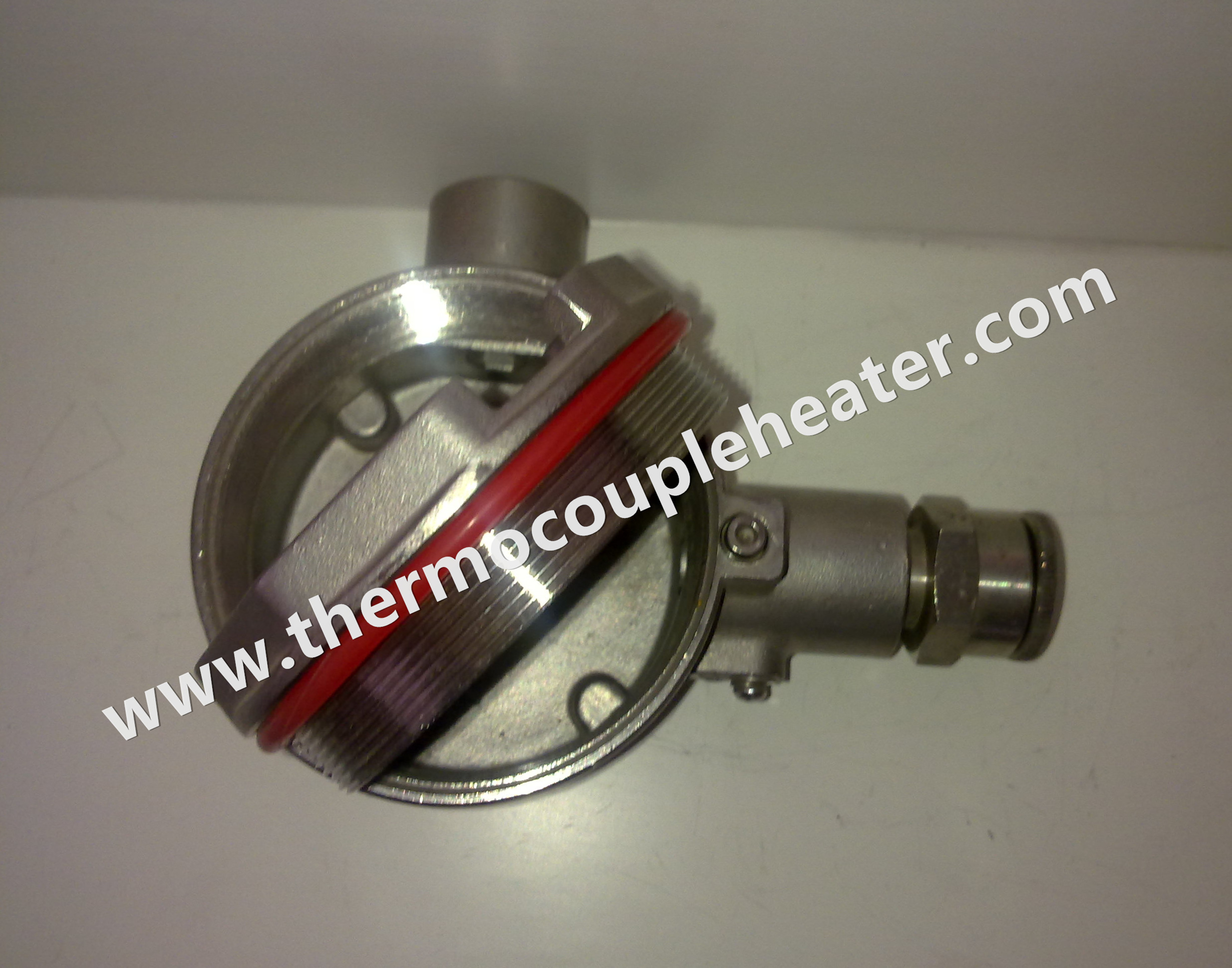

Thermocouple Head Explosion-Proof Made Of Stainless Steel SS304
1. Description:
This heavy duty thermocouple is specifically designed for temperature sensing in arduous industrial environments such as blast or carburizing furnaces, kilns, large ovens and galvanising baths where their robust construction ensures a prolonged sensor life.
Available in thermocouple types: K, T, J, N, E, R, S, B, C, and Pt100.
Thick wall protective sheaths in stainless steel.
2. Specifications:
| 1. Approved IEC529 IP65 |
| 2. Thermocouple or RTD head |
| 3. Type: KMC,KNE, KNY, KB, CMS, KSB, KSE, KSY, DAN, etc., all types available |
| 4. Material: Alluminum, stainless steel, bakelite or iron |
| 5. Wire entry: M20*1.5, NPT1/2’’, NPT3/4’’, G1/2’’, G3/4’’ |
| 6. Probe entry: M24*1.5, M16*1, G1/2’’, G3/4’’,NPT1/2’’, NPT3/4’’ |
| 7. Ball chain or Jack chain available |
| 8. Terminal block: 2P, 3P, 4P, 6P ,8P |
| 9. Terminal block material: Bakelite or ceramic. |
| 10. Wide range of specification; |
| 11. High precision painting |
| 12. Accessory: cover sealing and cable gland sealing in silicone free material |
| 13. Protection level: IP65 of IEC529 Enclosure protection class |
| 14. Place of Origin: China (Mainland) |
3. Technical Drawing:
