Thermocouple Head KMC RTD PT100 Connection Head With Stainless Steel Chain

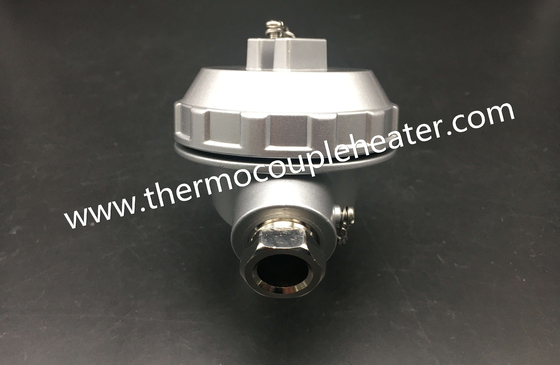

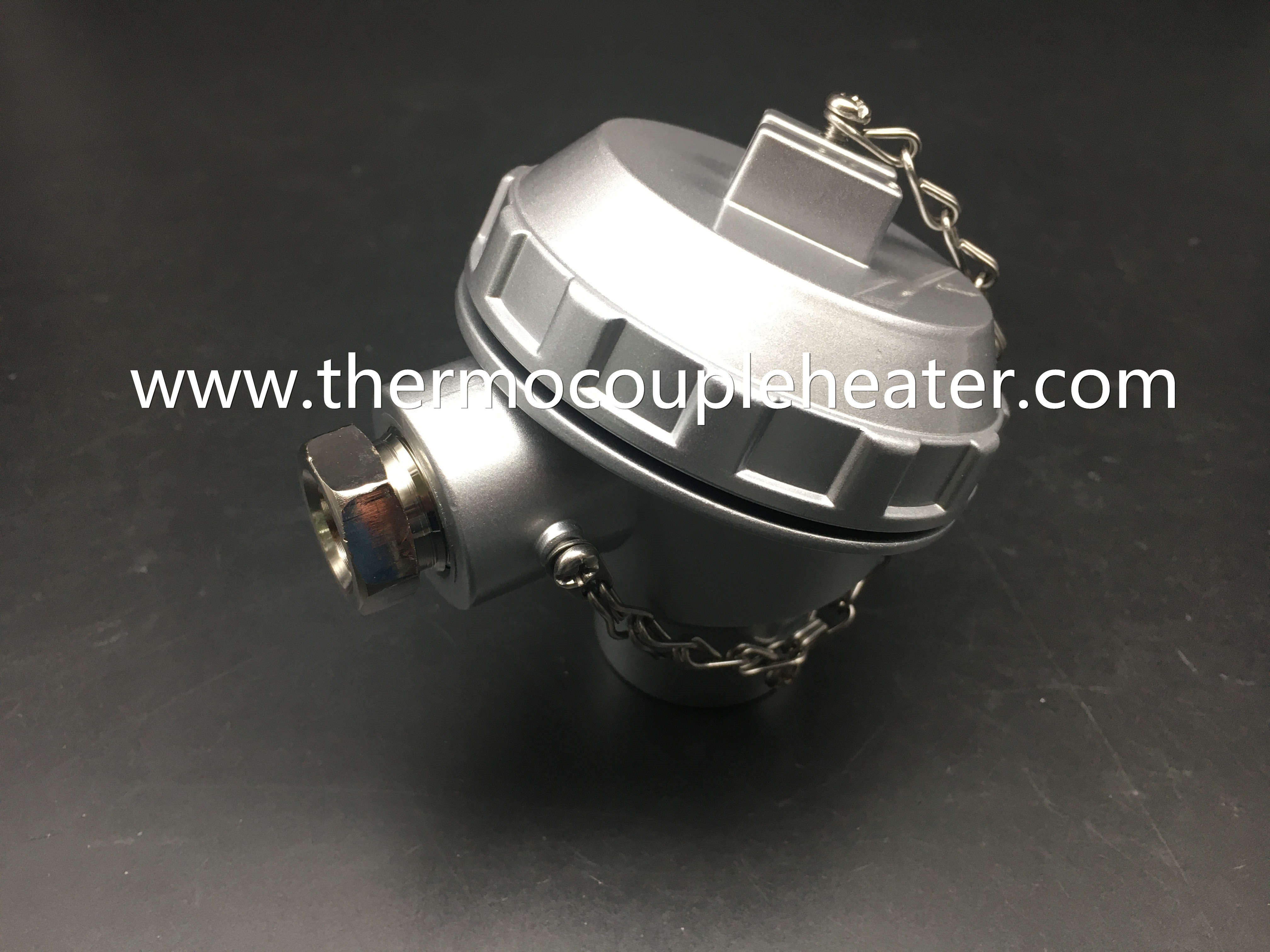

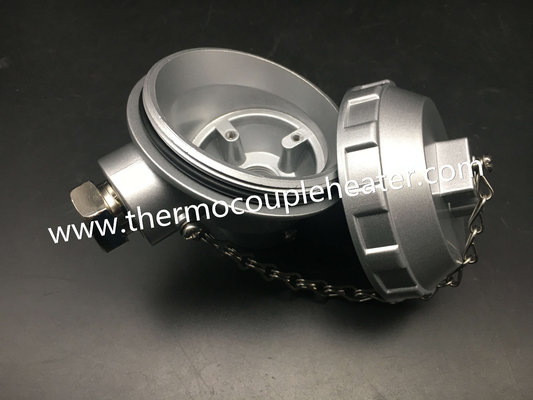

Large Image : Thermocouple Head KMC RTD PT100 Connection Head With Stainless Steel Chain

Product Details:

Place of Origin:	China
Brand Name:	GME
Model Number:	KMC

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Packaging Details:	Standard exporting package
Delivery Time:	10-20 Working Days
Payment Terms:	L/C, Western Union, T/T, Paypal
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Usage:	Connection Between Thermocouple And Extension Wire	Type:	KMC,KNE, KNY, KB, CMS, KSB, KSE, KSY, DAN, Etc.
Material:	Alluminum, Stainless Steel, Bakelite Or Iron	Terminal Block:	2 Poles, 3 Poles, 4 Poles, 6 Poles
Thread:	Metric, NPT, BSPP	Protection Class:	IP65
Color:	Silvery, Yellow, Red, Blue, Black, Etc.	Chain:	Ball Chain, Jack Chain
Highlight:	PT100 Connection Head , Thermocouple KMC Connection Head , RTD PT100 Connection Head

Thermocouple Head KMC RTD PT100 Connection Head With Stainless Steel Chain

1. Description:

This heavy duty thermocouple is specifically designed for temperature sensing in arduous industrial environments such as blast or carburizing furnaces, kilns, large ovens and galvanising baths where their robust construction ensures a prolonged sensor life.

Available in thermocouple types: K, T, J, N, E, R, S, B, C, and Pt100.
Thick wall protective sheaths in stainless steel.

2. Specifications:

1. Approved IEC529 IP65

2. Thermocouple or RTD head

3. Type: KMC,KNE, KNY, KB, CMS, KSB, KSE, KSY, DAN, etc., all types available

4. Material: Alluminum, stainless steel, bakelite or iron

5. Wire entry: M20*1.5, NPT1/2’’, NPT3/4’’, G1/2’’, G3/4’’

6. Probe entry: M24*1.5, M16*1, G1/2’’, G3/4’’,NPT1/2’’, NPT3/4’’

7. Ball chain or Jack chain available

8. Terminal block: 2P, 3P, 4P, 6P ,8P

9. Terminal block material: Bakelite or ceramic.

10. Wide range of specification;

11. High precision painting

12. Accessory: cover sealing and cable gland sealing in silicone free material

13. Protection level: IP65 of IEC529 Enclosure protection class

14. Place of Origin: China (Mainland)

3. Technical Drawing:

Thermocouple Head KMC RTD PT100 Connection Head With Stainless Steel Chain 0
