Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 100Meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or wooden crate or as per your request |
| Delivery Time: | 3~20 working days |
| Payment Terms: | T/T or L/C or Paypal |
| Supply Ability: | 300000 Meter/Meters per Month |
| Type: | K, E, J, T, N | Insulation Powder: | Magnesium Oxide |
|---|---|---|---|
| Sheath: | Metal | B/R/S: | 1 |
| Size: | Customizable | Form: | Duplex/ Simplex |
| Highlight: | mineral insulated metal sheathed cable,mineral insulated heating cable |
||

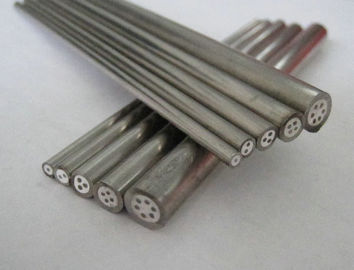

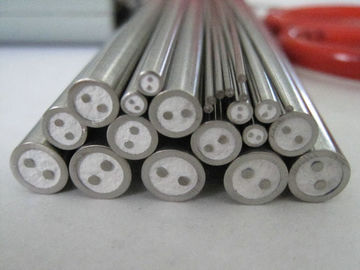

Mineral insulated thermocouple cable with type K,E,J,T,N
1.Specifications
1. Magnesium oxide insulation powder.
2. Metal sheathed
3. Duplex/ Simplex
4. Many sizes and types available.
5. B/R/S:1
2. Detailed Spec.:
| OD (mm) | D(mm) | Thickness(mm) | Graduation | Conductor | L (m) | w(g/m) | |
| Sinplex | 0.25 | 0.04 | 0.05 | K | Inconel 600 | 5 | 0.4 |
| 0.5 | 0.09 | 0.09 | K,E,J | Inconel 600 SUS304,321,316 |
50 | 1.3 | |
| 1.0 | 0.18 | 0.15 | K,E,J,T | Inconel 600 SUS304,321,316,310,347 |
100 | 5 | |
| 1.6 | 0.28 | 0.23 | K,E,J,T | Inconel 600 SUS304,321,316,310,347 |
300 | 13 | |
| 2.2 | 0.40 | 0.31 | K,E,J,T | Inconel 600 SUS304,321,316,310,347 |
300 | 24 | |
| 3.2 | 0.58 | 0.41 | K,E,J,T,N | Inconel 600, SUS304,321,316,310,347 | 200 | 51 | |
| 4.8 | 0.84 | 0.61 | K,E,J,T,N | Inconel 600, SUS304,321,316,310,347 , 446 | 100 | 115 | |
| 6.4 | 1.12 | 0.81 | K,E,J,T,N | Inconel 600, SUS304,321,316,310,347 , 446 | 60 | 193 | |
| 8.0 | 1.37 | 1.02 | K,E,J,T,N | Inconel 600, SUS304,321,316,310,347 ,446 | 35 | 300 | |
| Duplex | 1.6 | 0.23 | 0.23 | K,E,J,T | Inconel 600 SUS304,321,316,310,347 |
300 | 13 |
| 2.2 | 0.33 | 0.33 | K,E,J,T | Inconel 600 SUS304,321,316,310,347 |
300 | 22 | |
| 3.2 | 0.46 | 0.48 | K,E,J,T | Inconel 600 SUS304,321,316,310,347,446 |
157 | 45 | |
| 4.8 | 0.71 | 0.74 | K,E,J,T | Inconel 600, SUS304,321,316,310,347 | 68 | 102 | |
| 6.4 | 0.94 | 1.02 | K,E,J,T | Inconel 600, SUS304,321,316,310,347 | 38 | 222 | |
| 8.0 | 1.24 | 1.24 | K,E,J,T | Inconel 600, SUS304,321,316,310,347 | 24 | 350 | |
| Triplex | 3.2 | 0.28 | 0.33 | K,E,J,T | Inconel 600 SUS304,321,316,310,347 |
160 | 33 |
| 4.8 | 0.38 | 0.46 | K,E,J,T | Inconel 600 SUS304,321,316,310,347 |
70 | 80 | |
| 6.4 | 0.48 | 0.64 | K,E,J,T | Inconel 600 SUS304,321,316,310,347 |
41 | 130 | |
| 8.0 | 0.61 | 0.79 | K,E,J,T | Inconel 600 SUS304,321,316,310,347 |
24 | 210 |
3. Application
Mineral Insulated thermocouple cables are mainly used for temperature sensor -Thermocouple
and RTD, which can be used under the most severe corrosive conditions and supplied in long
lengths and can easily be welded or brazed to other metals when proper techniques are used.
