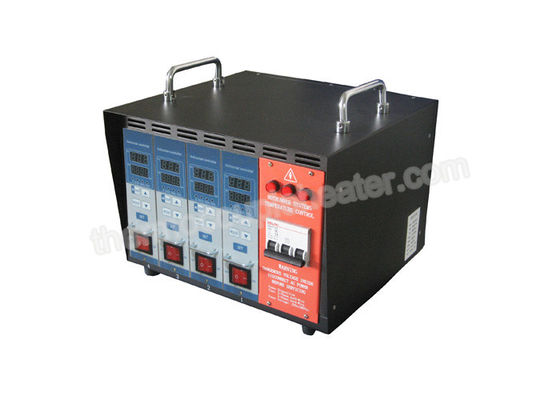

J thermocouple type heater mold temperature controller hot runner 4 zone
Specifications
| Power Supply | AC85~ 415V, 50/60HZ | Consumed Power | < 2.5W |
| Control Mode | Auto-PID / Manual | Output Type | Zero Cross / Phase Angle |
| Sensor Type | Thermocouple J or K | Measurement Range | 0~500℃(32~932℉) |
| Measurement Accuracy | ±0.25% FS | Setting Range | 0~450℃(32~842℉) |
| Control Accuracy | ±0.25% FS | Load Capacity | 20A, 50W~2200W(110V) 100W~4400W(220V) |
| Working Temperature | 0~50℃(32~122℉) | ||
| Storage Temperature | -20~70℃(-4~158℉) | Switching Mode | Rocker Switch |
| Working Humidity | 10~80%RH(No condensing) |
Demension
| Type | 02A | 02B | 04A | 06A | 08A | 10A | 12A | 24A |
| Zone | 1 ~ 2 | 1 ~ 2 | 3 ~ 4 | 5 ~ 6 | 7 ~ 8 | 9 ~ 10 | 11 ~ 12 | 13 ~ 24 |
| Power Switch | 2P-40A×1 | None | 3P-63A×1 | 3P-63A×1 | 3P-63A×1 | 3P-63A×1 | 3P-63A×1 | 3P-63A×2 |
| Power Supply | 1-Phase 3-wire AC220V | 1-Phase 3-wire AC220V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V |
| Output Connector | 16PIN×1 or Cable | 16PIN×1 or Cable | 16PIN×1 | 24PIN×1 | 16PIN×2 | 24PIN×2 | 24PIN×2 | 24PIN×4 |
| Dimension(mm) | L=185 H=200 D=290 | L=130 H=200 D=290 | L=310 H=210 D=290 | L=410 H=210 D=290 | L=510 H=210 D=290 | L=610 H=210 D=290 | L=710 H=210 D=290 | L=720 H=420 D=290 |
Main Features
1. Integrated construction permits easy disassembly.
2. Adopt galvanized steel sheet. Light and handy. High capacity of anticorrosion and antirust.
3. The card size and electric interface can be compatible with other brands such as YUDO, Athena, DME, PCS, INCOE.
4. Adopt gold-plated card slot and machine to pressure wielding. Make sure the signals are connected reliably between box and card.
5. The type of heavy load connections and wiring method can be custom-made.
6. Adopt cold pressing terminals between wires and heavy load connections to make sure the signals are connected reliably.
7. There are 2, 4, 6, 8, 10, 12, 24 zones for customers to select.
Protection Fuctions
1. Wide power supply range, AC85~415V
2. Thermocouple input protection, prevent module damaged by mis-connection
3. Thermocouple & heater inverse protection, prevent thermocouple damaged by mis-connection
4. Soft-start mode, avoid the humidity make the heater burn out
Diagnostic Function
Alarm when the followings occurred
1. Ultra-high or ultra-low Temperature
2. Thermocouple break, short or inverse
3. Thermocouple is out of its position
4. Heater break, short or overload
5. Output device is damaged
Accessories

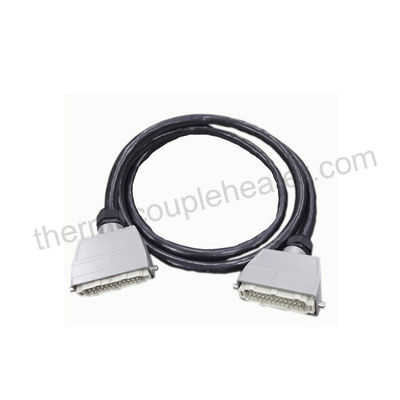

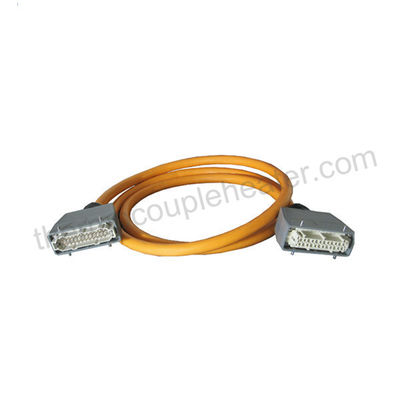

Cables: provide 16/24 core combination hot runner cable and mold power cable, thermocouple cable or customized
