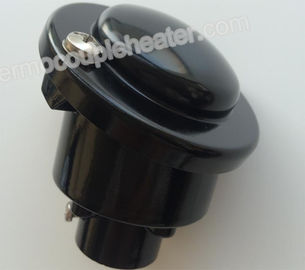

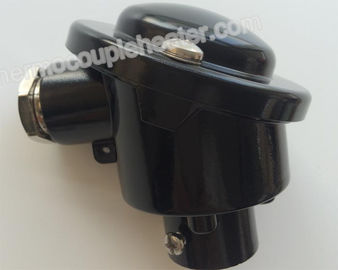

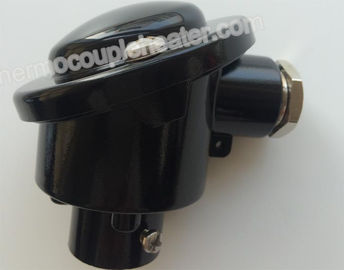

Black Color Aluminium European Thermocouple Connection Head KD / DIN B

Large Image : Black Color Aluminium European Thermocouple Connection Head KD / DIN B

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO9001
Model Number:	KD , DIN B

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	USD 2.0-10 FOB Shanghai/pcs
Packaging Details:	Export Carton Package or as Customer Request
Delivery Time:	7-15 Working Days
Payment Terms:	T/T, Western Union, L/C,PayPal
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Product Name:	Temperature Sensor Connection Head	Application:	Industrial Temperature Measurement
Model Number:	KD / DIN B	Material:	Aluminium Alloy
Weight:	0.15kg	Painting:	Lacquer Painting Polyester Powder Coating
Highlight:	rtd connection head , industrial heating elements

Aluminium European Thermocouple Connection Head KD / DIN B In Black Color

Description

Thermocouple Connection heads are designed to provide access to connections between the sensor and the instrument wiring and to provide protection from the elements , which is widely used in thermocouple and RTD assembly . It can be made of Aluminum, stainless steel, Bakelite or Iron . Thermocouple head terminal blocks are generally available from two to six terminals.

Material

1. Die-casting aluminium ADC12

Aluminium alloy	Cu	Zn	Si	Mg	Mn	Fe	Al
ADC12	1.58%	0.05%	11.80%	0.06%	0.07%	0.34%	Balance

2. Bakelite plastic

3. Stainless Steel 304, 316

Technical Specifications

Black Color Aluminium European Thermocouple Connection Head KD / DIN B 0

Wire entry	Probe entry	Terminal Block Fixing Hole
M20x1.5	1/2" NPT	33mm , D series
M20x1.5	1/2" BSPP	33mm , D series
M20x1.5	M20x1.5	33mm , D series
M20x1.5	M24x1.5	33mm , D series
1/2" BSPP	1/2" BSPP	33mm , D series
1/2" BSPP	M20x1.5	33mm , D series
1/2" BSPP	M24x1.5	33mm , D series
Pg16	M24x1.5	33mm , D series

Feature

1. The appearance of our products is aesthetics.

2. The thread entries are smooth and easy to be installed.

3. High accuracy in paint spraying.

4. About 50 models of heads are available .
