Zinc Alloy Sacrificial Anodes For Marine Structures Pipelines Protection

Home ProductsSacrificial Anodes

Zinc Alloy Sacrificial Anodes For Marine Structures Pipelines Protection

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

Zinc Alloy Sacrificial Anodes For Marine Structures Pipelines Protection

China Zinc Alloy Sacrificial Anodes For Marine Structures Pipelines Protection supplier
Zinc Alloy Sacrificial Anodes For Marine Structures Pipelines Protection supplier Zinc Alloy Sacrificial Anodes For Marine Structures Pipelines Protection supplier Zinc Alloy Sacrificial Anodes For Marine Structures Pipelines Protection supplier Zinc Alloy Sacrificial Anodes For Marine Structures Pipelines Protection supplier

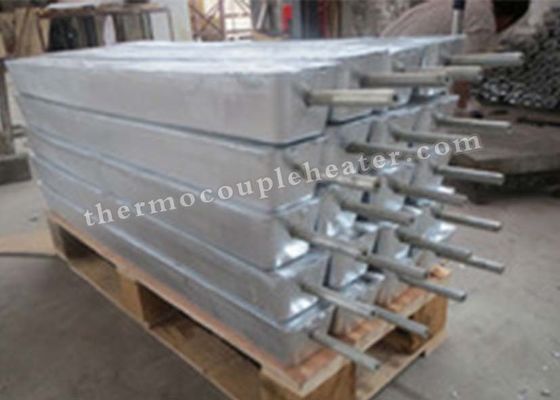

Large Image :  Zinc Alloy Sacrificial Anodes For Marine Structures Pipelines Protection

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE/ISO

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD 1-1000/PC
Packaging Details: Export Carton Package
Delivery Time: 7-15 Working Days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 10000 PCS/Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Zinc Alloy Sacrificial Anode Application: Ship Hull
Size: Customized Feature: Catholic Protection Systems
High Light:

Sacrificial Aluminum Anode

,

sacrificial anode rod

Zinc Alloy Sacrificial Anode for Anticorrosion and Protecting the Pipelines and Marine Structures



Specifications:



Models and Specifications of Typical Sacrificial Anodes Used on Ship Hull





Type (LxWxH )          Weight (Kg)



Specification (mm)



800x140x60                              47.0

800x140x50                              39.0

800x140x40                              31.0

600x120x50                              25.0

400x120x50                              16.0

500x100x40                              13.6

400x100x40                              11.0

300x100x40                              7.5

250x100x40                              6.5

180x70x40                                3.5

300x150x50 double iron feet    14.5

300x150x40 double iron feet    11.5

300x150x50 bolt                      1 2.0

300x150x40 bolt               9.0



Description:



Zinc Alloy Sacrificial Anode is the method to prevent metal corrosion through the principles of primary cells.

The metal with strong reduction will be used as a protection electrode, which is connected with other metal to constitute the primary battery as negative electrode. The former protect the latter form corrosion through redox reaction sacrifice itself.

Briefly, it is to take the advantage of the corrosion of anode metal to reduce corrosion of cathode metal



Applications:



Sacrificial Zinc Anode for Anticorrosion is used in applications for protecting the pipelines and marine structures from corrosion in seawater and saline mud. Zinc anode also suitable for the protection of storage tanks, fishing boat, submarine, stern drive and offshore platform, etc.



Competitive Advantage:



Impressed current cathode protection system

We have successfully developed a new kind of impressed current cathode protection system for water heaters. The protection system will adjust the current density automatically in pace of working temperature of the water heater. It will provide the best protection condition to the water tank, and extend the life of anodes.



The indication apparatus

The life length of magnesium anode will be different because of the different working environment and size. the indication apparatus will show the real time condition of the magnesium anode.



The anode dissipation alert apparatus

The apparatus can give the detail data about the magnesium anodes. It will alert when the anode dissipation reaches to a target point.



High efficiency magnesium rod anode

Seal the connection point to control the corrosion between magnesium anode and the connection point in order to extend the life of anode.



New product development

Our company cooperates with some famous universities and research institutes to develop new anticorrosive products.
