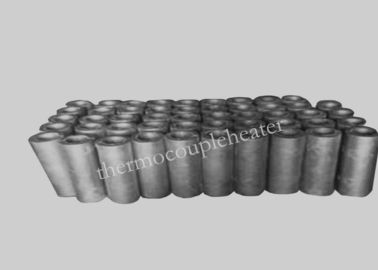

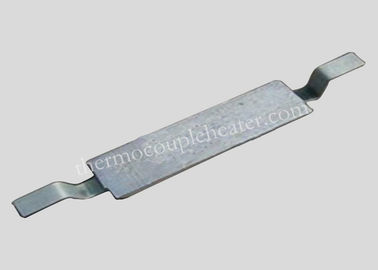

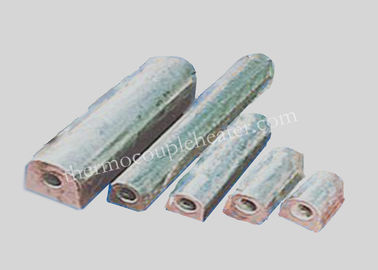

Anticorrosion Alloy Sacrificial Aluminum Anode For Sea Water / Saline Mud

Anticorrosion Alloy Sacrificial Aluminum Anode For Sea Water / Saline Mud

    • Anticorrosion Alloy Sacrificial Aluminum Anode For Sea Water / Saline Mud
    • Anticorrosion Alloy Sacrificial Aluminum Anode For Sea Water / Saline Mud
    • Anticorrosion Alloy Sacrificial Aluminum Anode For Sea Water / Saline Mud
  • Anticorrosion Alloy Sacrificial Aluminum Anode For Sea Water / Saline Mud

    Product Details:

    Place of Origin: China

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: USD 10-1000/PC
    Packaging Details: Export Carton Package
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, Western Union, L/C,Paypal
    Supply Ability: 10000 PCS/Month
    Contact Now
    Detailed Product Description
    Product Name: Anticorrosion Alloy Sacrificial Anode Application: Seawater And Saline Mud
    Size: Customized Feature: Anti-corrosion
    Highlight:

    Magnesium Alloy Sacrificial Anode

    ,

    Sacrificial Aluminum Anode

    ,

    Anticorrosion Alloy Sacrificial Aluminum Anode

    Anticorrosion Sacrificial Anode of Aluminum for Protection System



    1. Description



    Aluminum Alloy Sacrificial Anode is the method to prevent metal corrosion through the principles of primary cells.



    The metal with strong reduction will be used as a protection electrode, which is connected with other metal to constitute the primary battery as negative electrode. The former protect the latter form corrosion through redox reaction sacrifice itself.



    Briefly, it is to take the advantage of the corrosion of anode metal to reduce corrosion of cathode metal.



    2. Specifications



    Models and Specifications of Typical Sacrificial Anodes Used on Ship Hull



    Type (LxWxH )                 Weight (Kg)



    Specification (mm)



    800x140x60                             47.0

    800x140x50                             39.0

    800x140x40                             31.0

    600x120x50                             25.0

    400x120x50                             16.0

    500x100x40                             13.6

    400x100x40                             11.0

    300x100x40                             7.5

    250x100x40                             6.5

    180x70x40                               3.5

    300x150x50 double iron feet   14.5

    300x150x40 double iron feet   11.5

    300x150x50 bolt                      12.0

    300x150x40 bolt                       9.0



    3. Applications



    Sacrificial Aluminum Anode for Anticorrosion is used in applications for protecting the pipelines and marine structures from corrosion in seawater and saline mud. Zinc anode also suitable for the protection of storage tanks, fishing boat, submarine, stern drive and offshore platform, etc.



    4. Competitive Advantage



    a. Impressed current cathode protection system:

    We have successfully developed a new kind of impressed current cathode protection system for water heaters. The protection system will adjust the current density automatically in pace of working temperature of the water heater. It will provide the best protection condition to the water tank, and extend the life of anodes.



    b. The indication apparatus:

    The life length of magnesium anode will be different because of the different working environment and size. the indication apparatus will show the real time condition of the magnesium anode.



    c. The anode dissipation alert apparatus:

    The apparatus can give the detail data about the magnesium anodes. It will alert when the anode dissipation reaches to a target point.



    d. High efficiency magnesium rod anode:

    Seal the connection point to control the corrosion between magnesium anode and the connection point in order to extend the life of anode.



    e. New product development:

    Our company cooperates with some famous universities and research institutes to develop new anticorrosive products.
