Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE/ISO |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | USD 1-1000/PC |
| Packaging Details: | Export Carton Package |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | T/T, Western Union, L/C,Paypal |
| Supply Ability: | 10000 PCS/Month |
| Product Name: | Aluminum Alloy Sacrificial Anode | Application: | Electric Heater Protection |
|---|---|---|---|
| Size: | Customized | Feature: | Catholic Protection Systems |
| High Light: | Magnesium Alloy Sacrificial Anode,Sacrificial Aluminum Anode,Aluminum Alloy Sacrificial Anodes |
||

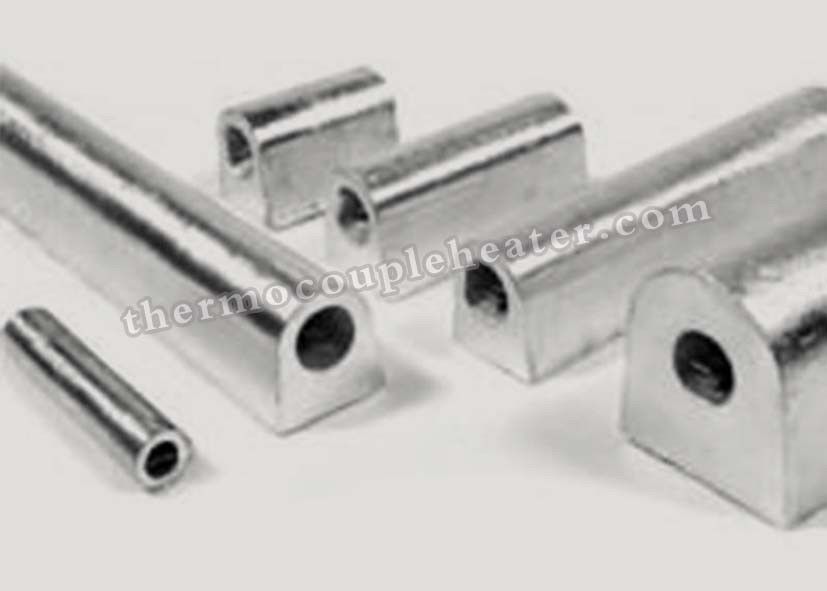

Aluminum Alloy Sacrificial Anode Catholic Protection Systems under Various Conditions
1. Description:
Aluminum Alloy Sacrificial Anode is simple and economical that it could be performance under a variety of environmental conditions, after proper installation that Aluminum anodes will performance efficiently and continuously without any attention for CP systems. With its perfect performances, it could be widely used for the catholic protection systems of seawater, pipelines, offshore structures, ship hulls, tanks, boilers, piers, etc.
2. Specifications:
|
1. Models and Specifications of Typical Sacrificial Anodes Used for Inside Storage Tanks |
|||||
|
Type |
Specification (mm) |
Weight (Kg) |
|||
|
L x (Top Width + Bottom Width) x H |
|||||
|
AC-1 |
750 x (115+135) x 130 |
35.0 |
|||
|
AC-2 |
500 x (115+135) x 130 |
23.0 |
|||
|
AC-3 |
500 x (105+135) x 100 |
16.0 |
|||
|
AC-4 |
300x (105+135) x 100 |
10.0 |
|||
|
Type |
Specification (mm) |
Weight (Kg) |
|||
|
L x (Top Width + Bottom Width) x H |
|||||
|
AI-1 |
2300x (220+240) x 230 |
310.0 |
|||
|
2. Models and Specifications of Typical Sacrificial Anodes Used for Harbor installations and Offshore Projects |
|||||
|
AI-2 |
1600x (200+210) x 220 |
190.0 |
|||
|
AI-3 |
1500x (170+200) x 180 |
130.0 |
|||
|
AI-4 |
900x (150+170) x 160 |
58.0 |
|||
|
AI-5 |
1500x (148+178) x 170 |
120.0 |
|||
|
AI-6 |
850x (180+220) x 180 |
85.0 |
|||
|
AI-7 |
800x (200+280) x 150 |
80.0 |
|||
|
AI-8 |
700x (160+220) x 180 |
72.5 |
|||
|
AI-9 |
1250x (115+135) x 130 |
56.0 |
|||
|
AI-10 |
1000x (115+135) x 130 |
46.0 |
|||
|
AI-11 |
750x (115+135) x 130 |
35.0 |
|||
|
AI-12 |
500x (115+135) x 130 |
23.0 |
|||
|
3. Models and Specifications of Typical Sacrificial Anodes Used in Ship Ballast Tank |
|||||
|
Type |
Specification (mm) |
Weight (Kg) |
|||
|
L x (Top Width + Bottom Width) x H |
|||||
|
AT-1 |
500x (115+135) x 130 |
23.0 |
|||
|
AT-2 |
1500x (65+75) x 70 |
21.5 |
|||
|
AT-3 |
500x (110+130) x 120 |
20.0 |
|||
|
AT-4 |
1000x (58.5+78.5) x 68 |
13.2 |
|||
|
AT-5 |
800x (56+74) x 65 |
10.0 |
|||
|
AT-6 |
1150x (48+54) x 51 |
9.0 |
|||
|
AT-7 |
250x (80+100) x 85 |
5.0 |
|||
|
AT-8 |
200x (70+90) x 70 |
3.0 |
|||
|
4. Models and Specifications of Typical Tape Sacrificial Anodes Used for Seawater Cooling System |
|||||
|
Type |
Specification (mm) |
Weight (Kg) |
|||
|
L x (Top Width + Bottom Width) x H |
|||||
|
AE-1 |
1200x (200+280) x 150 |
120.0 |
|||
|
AE-2 |
800x (200+280) x 150 |
80.0 |
|||
|
AE-3 |
1000x (115+135) x 130 |
46.0 |
|||
|
AE-4 |
500x (115+135) x 130 |
23.0 |
|||
|
AE-5 |
1000x (80+100) x 80 |
20.0 |
|||
|
AE-6 |
500x (105+135) x 100 |
16.0 |
|||
|
AE-7 |
500x (80+100) x 80 |
10.0 |
|||
|
AE-8 |
400x (110+120) x 50 |
7.0 |
|||
|
AE-9 |
300x (140+160) x 40 |
5.0 |
|||
|
AE-10 |
200x (90+110) x 40 |
3.0 |
|||
|
5. Models and Specifications of Typical Sacrificial Anodes Used on Ship Hull |
|||||
|
Type |
Specification (mm) |
Weight (Kg) |
|||
|
L x W x H |
|||||
|
AH-1 |
800x140x60 |
17.0 |
|||
|
AH-2 |
800x140x50 |
15.0 |
|||
|
AH-3 |
800x140x40 |
12.0 |
|||
|
AH-4 |
600x120x50 |
10.0 |
|||
|
AH-5 |
400x120x50 |
6.5 |
|||
|
AH-6 |
500x100x40 |
5.5 |
|||
|
AH-7 |
400x100x40 |
4.5 |
|||
|
AH-8 |
300x100x40 |
3.5 |
|||
|
AH-9 |
250x100x40 |
2.5 |
|||
|
AH-10 |
180x70x35 |
1.2 |
|||
|
AH-11 |
300x150x50 double iron feet |
5.8 |
|||
|
AH-12 |
300x150x40 double iron feet |
4.6 |
|||
|
AH-13 |
300x150x50 bolt |
5.8 |
|||
|
AH-14 |
300x150x40 bolt |
4.8 |
|||
|
6. Models and Specifications of Typical Round-Disk Sacrificial Anodes Used for Seawater Cooling System |
|||||
|
Type |
Specification (mm) |
Weight (Kg) |
|||
|
Diameter x High |
|||||
|
AE-11 |
300x60 |
11.5 |
|||
|
AE-12 |
360x40 |
9.0 |
|||
|
AE-13 |
300x40 |
7.5 |
|||
|
AE-14 |
200x50 |
4.0 |
|||
|
AE-15 |
180x50 |
3.5 |
|||
|
AE-16 |
120x100 |
2.5 |
|||
|
7. Models and Specifications of Typical Bracelet Aluminum Alloy Anodes |
|||||
|
Type |
Specification(mm) |
Weight (Kg) |
|||
|
Diameter x Width x Thickness x Clearance |
|||||
|
AB-1 |
1020x200x35x51 |
68.0 |
|||
|
AB-2 |
819x60x30x51 |
13.0 |
|||
|
AB-3 |
624x80x30x51 |
17.0 |
|||
|
AB-4 |
513x100x30x51 |
17.0 |
|||
|
AB-5 |
487x200x45x51 |
41.0 |
|||
|
AB-6 |
470x480x25x51 |
50.0 |
|||
|
AB-7 |
436x480x38x51 |
70.0 |
|||
|
AB-8 |
420x413x45x51 |
69.0 |
|||
|
AB-9 |
385x150x59x51 |
32.0 |
|||
|
AB-10 |
335x505x38x51 |
56.0 |
|||
|
AB-11 |
280x250x45x51 |
29.0 |
|||
|
AB-12 |
252x250x45x51 |
26.0 |
|||
4. Applications:
Sacrificial Zinc Anode for Anticorrosion is used in applications for protecting the pipelines and marine structures from corrosion in seawater and saline mud. Zinc anode also suitable for the protection of storage tanks, fishing boat, submarine, stern drive and offshore platform, etc.
5. Competitive Advantage:

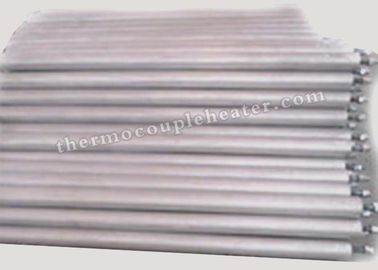

High efficiency magnesium rod anode
Seal the connection point to control the corrosion between magnesium anode and the connection point in order to extend the life of anode.
New product development
Our company cooperates with some famous universities and research institutes to develop new anticorrosive products.
