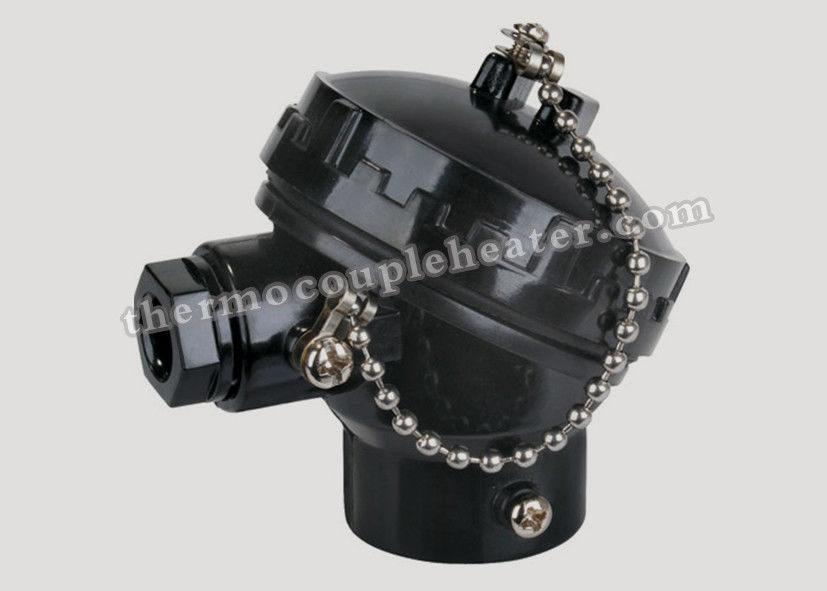

Thermocouple Connection Head with Bakelite Material / Internal Threads

Thermocouple Connection Head with Bakelite Material / Internal Threads

    •  Thermocouple Connection Head with Bakelite Material / Internal Threads
    •  Thermocouple Connection Head with Bakelite Material / Internal Threads
    •  Thermocouple Connection Head with Bakelite Material / Internal Threads
  •  Thermocouple Connection Head with Bakelite Material / Internal Threads

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: USD 2.5-10 FOB Shanghai/PC
    Packaging Details: Export Carton Package or as Customer Request
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Product Name: Thermocouple Connection Head Material: Aluminum(ADC-12)
    Probe Entry: G3/8’’ Founction: Waterproof
    Terminal Block:: 2P, 3P, 4P, 6P ,8P
    High Light:

    temperture sensor component

    ,

    industrial heating elements

    Thermocouple Connection Head with Bakelite Material and Internal Threads



    Specifications:

    1.  Thermocouple head

    2. Type: , all type available

    3. Material: Bakelite

    4. Wire entry: G3/8’’

    5. Probe entry: G1/4’’,

    6. Standard wire entry and probe entry;

    7. Wide range of specification;

    8. High precision painting

    9. Accessory: cover sealing and cable gland sealing in silicone free material

    10. Protection level: IP65 of IEC529 Enclosure protection class

    11. Place of Origin: China (Mainland)

    12. Eco-friendly: Yes



    Technical Drawing

     Thermocouple Connection Head with Bakelite Material / Internal Threads



    Description:



    Thermocouples as now commonly use a bimetallic sensing wire enclosed within a protective tube. A specially designed thermocouple head threaded receives the protective tube and is provided with a second threaded opening to receive the lead wires.



    The head houses a terminal connecting block there and a large threaded cover in the head fitting permits easy access to the terminal block.



    As may be appreciated, there are many large manufacturers of thermocouples in the country and all produce to satisfactory standards. With a number of equally good brands available, after a period of operation, most plants employing thermocouples will be equipped with many similar items of different manufacture. When the thermocouple components begin to wear, operating personnel then find that the various parts from different manufacturers are not interchangeable. This problem results either in causing the maintaining of a large inventory of parts of all manufacturers represented or in replacing some of the thermocouples so that all in use will be the same make. Either solution will, of course, prove to be quite costly.



    A universal thermocouple head provided with an internal recess having one or more tiers, the said tiers having shaped peripheral configurations to receive and retain terminal blocks manufactured by various producers.



    This invention relates to the general field of high temperature measurements and is more particularly directed to a universally adaptable thermocouple head having general interchangeable application in the art.



    Applications:



    1. Mullti explosion-proof type, good exposion-proof performance

    2. Wide measuring range

    3. High mechanical strength and good pressure-resistant performance

    4. Certain modification can be done according to your designs

    5. Terminal block: 2P, 3P, 4P, 6P ,8P

    6. Terminal block material: bakelite or ceramic .

    7. Excellent appearance with fine finish.

    8. Assembling easily.

    9. Available for Spring-loaded blocks.

    10. Standard size is suitable for various types of blocks, an international design.

    11. Can assemble with thermocouple and RTD





    Competitive Advantage:



    1. Perfect outlook and good performance

    2. Different kinds of thermocouple or thermal resistance are suitable

    3. Small minimum order quantity

    4. All sizes available

    5. Make head with logo according to your demand

    6. Excellent ,Moisture, corrosion and dust-resistant

    7. High precision painting
