DANW Thermocouple Connection Head Assembly Unit for Process Control / Test System

DANW Thermocouple Connection Head Assembly Unit for Process Control / Test System

    • DANW Thermocouple Connection Head Assembly Unit for Process Control / Test System
    • DANW Thermocouple Connection Head Assembly Unit for Process Control / Test System
    • DANW Thermocouple Connection Head Assembly Unit for Process Control / Test System
    • DANW Thermocouple Connection Head Assembly Unit for Process Control / Test System
  • DANW Thermocouple Connection Head Assembly Unit for Process Control / Test System

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: USD 2.5-10 FOB Shanghai/PC
    Packaging Details: Export Carton Package or as Customer Request
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Product Name: DANW Thermocouple Connection Head Application: Process Control And Test System
    Probe Entry: M24*1.5, G1/2’’, NPT1/2’’, NPT3/4’’ Wire Entry: M20*1.5, NPT1/2’’, G1/2’’
    Founction: Waterproof Feature: Standard Wire Entry And Probe Entry
    High Light:

    rtd connection head

    ,

    industrial heating elements

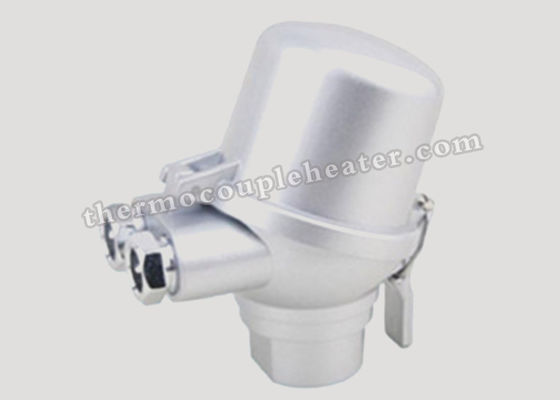

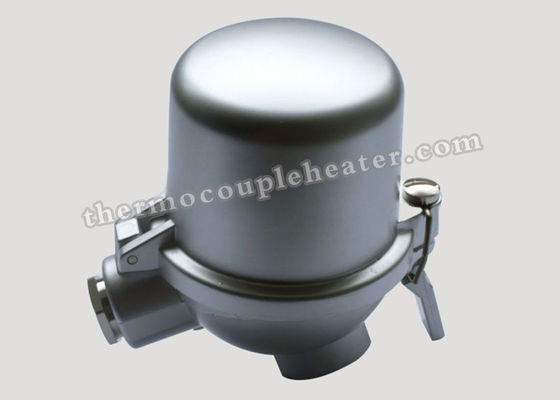

    DANW Thermocouple Connection Head Assembly Unit for Process Control and Test system



    1. Description:



    The Thermocouple Connection Head is an important component in the construction of an accurate thermocouple system. The head is used to house the thermocouple terminal block which connects the thermocouple element to the extension wire.



    The thermocouple connection heads function is, t



    o protect the electrical connections from contamination from the elements and maintain a constant temperature surrounding all internal connections.



    Thermocouple Connections heads are available in a variety of materials and NPT process thread configurations. We stock heads in Aluminum, Cast Iron, Stainless Steel, Polypropylene, Delrin, Nylon, Brass, and Nickel Plated Steel.



    2. Specifications:



    1. Terminal block: 2P, 3P, 4P, 6P ,8P

    2. Terminal block material: bakelite or ceramic .

    3. DANW Thermocouple head

    4. Type: DANW, all type available

    5. Material: Aluminum(ADC-12), Stainless steel

    6. Wire entry: M20*1.5, NPT1/2’’, G1/2’’

    7. Probe entry: M24*1.5, G1/2’’, NPT1/2’’, NPT3/4’’

    8. Standard wire entry and probe entry;

    9. Wide range of specification;

    10. High precision painting

    11. Accessory: cover sealing and cable gland sealing in silicone free material

    12. Protection level: IP65 of IEC529 Enclosure protection class

    13. Place of Origin: China (Mainland)

    14. Eco-friendly: Yes

    15. MOQ: 50PCS

    16. Certificate: ISO,

    17. Making sample time: all type in stock

    18. rade term: FOB, EXW, CIF, CFR



    3. Technical Drawing



    DANW Thermocouple Connection Head Assembly Unit for Process Control / Test System







    4. Applications:



    1. Excellent appearance with fine finish.

    2. Assembling easily.

    3. Available for Spring-loaded blocks.

    4. Standard size is suitable for various types of blocks, an international design.

    5. Can assemble with thermocouple and RTD



    5. Competitive Advantage:



    1. Place of Origin: China (Mainland)
    2. Small minimum order quantity
    3. All sizes available
    4. Make head with logo according to your demand
    5. Moisture and dust-resistant
    6. High precision painting
    7. Mullti explosion-proof type, good explosion-proof performance
    8. High mechanical strength and good pressure-resistant performance
    9. Certain modification can be done according to your designs
