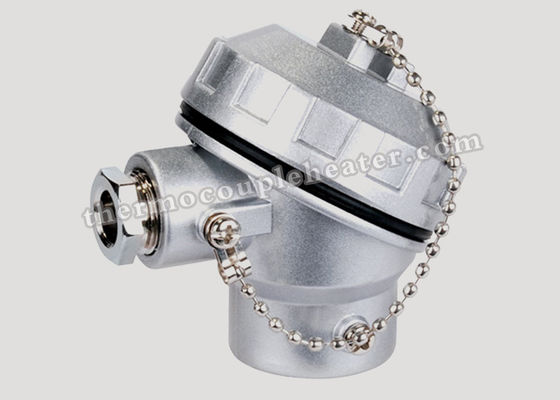

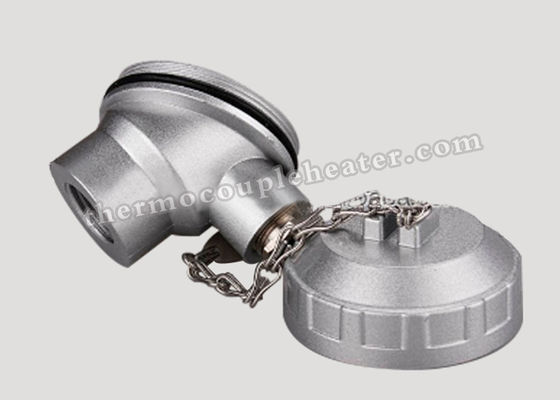

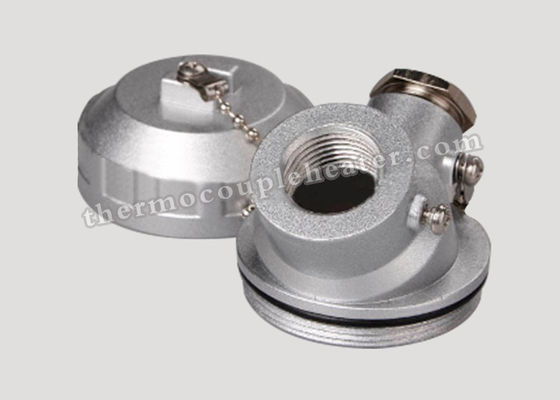

KSY Thermocouple Connection Head for Temperature Control Instrument Components

Large Image : KSY Thermocouple Connection Head for Temperature Control Instrument Components

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO/CE/UL

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD 2.5-10 FOB Shanghai/PC
Packaging Details:	Export Carton Package or as Customer Request
Delivery Time:	7-15 Working Days
Payment Terms:	T/T, Western Union, L/C,PayPal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Product Name:	KSY Thermocouple Connection Head	Application:	Temperture Mesurement
Material:	Aluminum ADC12	Painting:	Lacquer Painting Polyester Powder Coating
Color:	Silver RAL Color Code	Feature:	Standard Wire Entry And Probe Entry
Highlight:	temperture sensor component , industrial heating elements

KSY Thermocouple Connection Head for Temperature Control Instrument Components

1. Specifications:

1. KSY Thermocouple head

2. Type: KSY, all type available

3. Material: Aluminum(ADC-12), Stainless steel

4. Wire entry: M16*1.5, NPT3/8’’, G3/8’’

5. Probe entry: M12*1, M16*1, G1/2’’, NPT1/2’’

6. Standard wire entry and probe entry;

7. Wide range of specification;

8. High precision painting

9. Accessory: cover sealing and cable gland sealing in silicone free material

10. Protection level: IP65 of IEC529 Enclosure protection class

11. Place of Origin: China (Mainland)

12. Eco-friendly: Yes

13. Making sample time: all type in stock

14. Trade term: FOB, EXW, CIF, CFR

15. Payment term: T/T, Western Union, Paypal

2. Technical Drawing:

3. Description:

Thermocouple heads provide the means for making connection between thermocouple and extension wire, and protect the connection against corrosion, abrasion and breakage caused by handling. Thermocouple heads are easy to install and are convenient for checking purposes. An outlet for conduct connection is provided with a selection of threaded outlet sizes for the protection tube.

Available in aluminum or cast iron, these heads are superior in durability and convenience. A quick acting, tempered wire clamp holds the molded cover tightly against a gasket, making a positive seat.

Weatherproof heads provide complete protection from weather in outdoor locations. In sheltered areas they provide greater protection in chemical and petroleum plants. The screw on cover, with close fitting threads, tightens against a gasket. The internal threads are protected from ambient atmosphere by the gasket seal. Double lugs, integral with the cast cover provide for removal by means of a screwdriver or wrench.

4. Competitive Advantage:

1. Beautiful outlook and good performance

2. High precision painting

3. Moisture and dust-resistant

4. Excellent corrosion resistance

5. Suitable for all kinds of thermocouple or thermal resistance

6. Small minimum order quantity

7. All sizes available

8. Make head with logo according to your demand

9. Protection class:IP65
