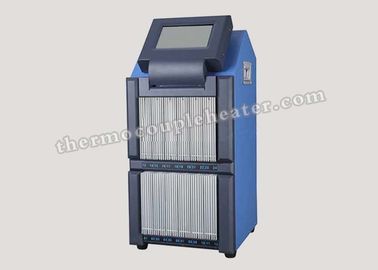

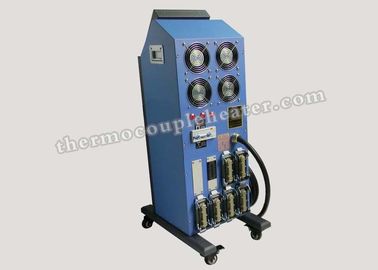

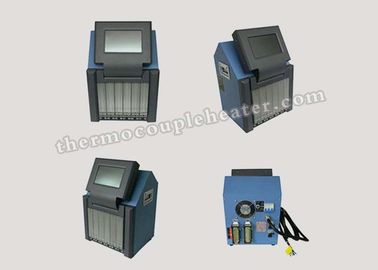

K / J Touch Screen Temperature Controller For Hot Runner System

K / J Touch Screen Temperature Controller For Hot Runner System

    • K / J Touch Screen Temperature Controller For Hot Runner System
    • K / J Touch Screen Temperature Controller For Hot Runner System
    • K / J Touch Screen Temperature Controller For Hot Runner System
  • K / J Touch Screen Temperature Controller For Hot Runner System

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE/UL/CSA/ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: I PC
    Price: USD800-10000 FOB Shanghai /pc
    Packaging Details: Export Carton Package or as Customer Request
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10pcs/Month
    Contact Now
    Detailed Product Description
    Product Name: Touch Screen Temperature Controller Application: Hot Runner System
    Control Zone: 12/24/36/48 Temperature Range: 0-450°C
    Thermocouple Type: K/J Optional Control Accuracy: ±0.5 °C
    Highlight:

    thermostat temperature controller

    ,

    hot runner temperature controller

    ,

    J Touch Screen Temperature Controller

    K / J Touch screen Temperature Controller for Hot runner system



    1. Description



    Touch screen Temperature Controller for Plastic Injection Machine Hot runner System offer customized number of control zones and form factors.



    This controller is ideal for regular molding machines without sequential fill capability. It allows operators to program the controller according their specific molding needs. Each control zone can be programmed for time-based and/or volume-based injection. The nozzles for each control zone can be graphically shown on the touch screen display.



    The time from injection start to packing end (injection plus packing time) is entered into the Close Timer to switch all valves. Individual close times are also available.

    12 /24 /36 /48 zones is available



    2. Specifications:



    Ambient temperature :

    32°F to 131°F(0°C to 55°C)

    Relative humidity :

    10%-95%

    Delivery temperature:

    -40°F to 158°F(-40°C to 70°C)

    Power supply

    AC185V-245V,50/60HZ

    T/C type:

    J/K

    Temperature Unit:

    °C/°F

    Temperature control scope:

    45°C to 550°C

    Temperature test precision

    +3%

    Repeat temperature measure precision :

    +0.1%

    Repeat temperature measure precision :

    +0.5%

    T/C cooling compensation:

    Dynamic tracking

    Noise restrain:

    common mode rejection ratio>100DB,

    Sample frequency

    10HZ(100mS)

    One point load:

    15A

    F1,F2,F3,F4:

    250V-15A(special fuse)





    Table 1        Adjustment period comparisons



    First cycle

    Second cycle

    Third cycle

    Brand

    Set

    Measured

    (High)

    Measured (low)

    period

    Measured (High)

    Measured (low)

    period

    Measured (High)

    Measured (low)

    period

    MASTIP

    200

    213.6

    192.7

    8′00″

    201.2

    196

    8′20″

    200

    196.7

    3′44″

    Ours

    200

    205.2

    199.9

    1′38″

    201.8

    200.5

    2′36″

    201

    200.5

    2′45″

    MASTIP

    230

    236.5

    220.1

    4′22″

    230.3

    226.3

    3′36″

    227.8

    227.1

    3′40″

    Ours

    230

    233.5

    228.7

    1′30″

    231.1

    229.2

    2′14″

    230.5

    229.4

    1′41″

    MASTIP

    260

    272

    255.7

    5′05″

    260.7

    256.3

    4′09″

    259.9

    256.4

    4′00″

    Ours

    260

    263

    257.9

    1′43″

    260.6

    258.2

    1′22″

    260

    258.6

    1′30″



    Table 2



    Set

    Brand

    First cycle

    Second cycle

    Third cycle

    Measured(low)

    Measured (High)

    Measured (low)

    Measured(high)

    Measured (low)

    Measured (high)

    200℃

    DME

    195

    204

    196.1

    203.8

    195.5

    204

    MASTIP

    196

    201.2

    196.7

    200.4

    197.3

    199.7

    Ours

    200.5

    201.8

    200.5

    201

    200

    200.9

    Set

    Brand

    First cycle

    Second cycle

    Third cycle

    Measured(low)

    Measured (high)

    Measured(low)

    Measured(high)

    Measured(low)

    Measured (high)

    230℃

    DME

    228.3

    231.3

    228.7

    229.6

    228.6

    229.4

    MASTIP

    226.3

    230.3

    227.1

    227.8

    227.5

    231.3

    Ours

    229.2

    231.1

    229.4

    230.5

    229.6

    230.2

    Set

    Brand

    First cycle

    Second cycle

    Third cycle

    Measured(low)

    Measured (high)

    Measured(low)

    Measured(high)

    Measured(low)

    Measured (high)

    260℃

    DME

    254.1

    263.5

    254.6

    262.4

    255.6

    262.6

    MASTIP

    256.3

    260.7

    256.4

    259.9

    257

    257.7

    Ours

    258.6

    260.6

    258.6

    260

    258.7

    259.6














































    K / J Touch Screen Temperature Controller For Hot Runner System



    3. Applications:



    This kind of controller could auto induct to any heating models and greatly improve the work capacity

    Inner and outer ring to dynamic tracking the ambient temperature effectively prevent the influence of ambient temperature during measurement.



    Cold compensation with thermostat of outer ring makes the control measure more precision through removing the ambient influence dynamically.Controller can easy detect to T/C reversed or T/C Open, and will be operated according to error information and control mode when detected the problems.



    a. Temperature Deviation Alarms

    b. Non-touch transfer

    c. Heater current monitor

    d. Soft start function

    e. Manual output mode

    f. Overall error indicator, easy to find error reason

    g. Output module rating 15A per Point



    4. Competitive Advantage:



    1. High accuracy

    2. Fast reaction

    3. 12 /24 /36 /48 zones is available

    4. Touch screen Temperature Controller for Plastic Injection Machine Hot runner System offer customized 5. number of control zones and form factors.

    6. This controller is ideal for regular molding machines without sequential fill capability. It allows 8. operators to program the controller according their specific molding needs. Each control zone can be programmed for time-based and/or volume-based injection. The nozzles for each control zone can be graphically shown on the touch screen display.



    7. The time from injection start to packing end (injection plus packing time) is entered into the Close Timer to switch all valves. Individual close times are also available.

    12 /24 /36 /48 zones is available
