Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | China |
Certification: | ISO9001 |
Minimum Order Quantity: | 100Meters |
---|---|
Price: | negotiable |
Packaging Details: | Carton or wooden crate or as per your request |
Delivery Time: | 3~20 working days |
Payment Terms: | T/T or L/C or Paypal |
Supply Ability: | 300000 Meter/Meters per Month |
Product Name: | 3 4 6 Cores SUS316 Metal Sheath Mineral Insulated RTD Cable | Application: | Industrial Temperature Sensor |
---|---|---|---|
Diameter: | 2mm-8mm | Accuracy: | Class I |
Conductor: | 3 4 6 Cores | Sheath Material: | SUS321(SS304) , SUS316 |
Highlight: | mineral insulated heating cable,mineral insulated power cable,SUS316 Sheath Mineral Insulated RTD Cable |

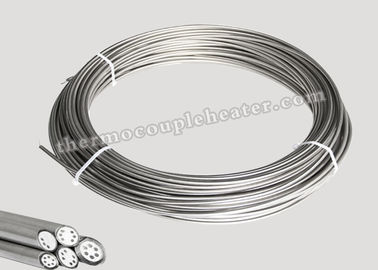

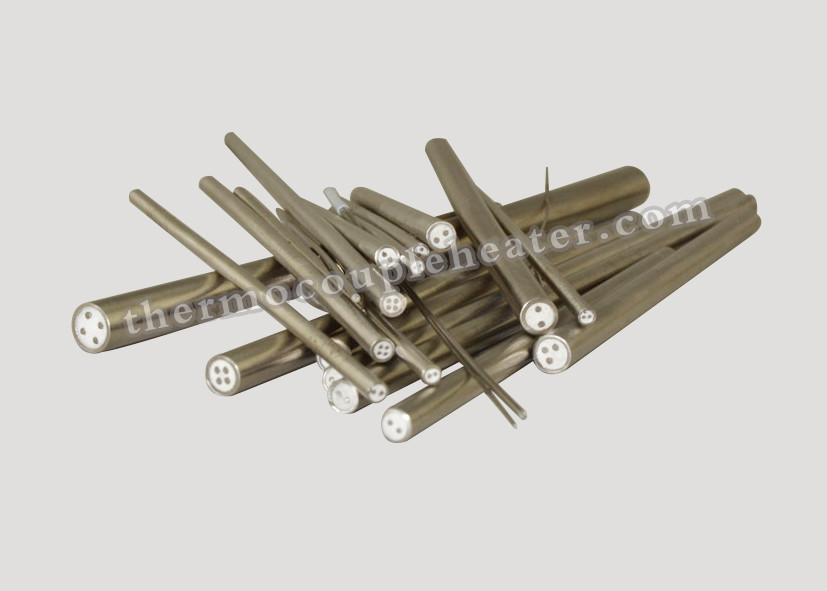

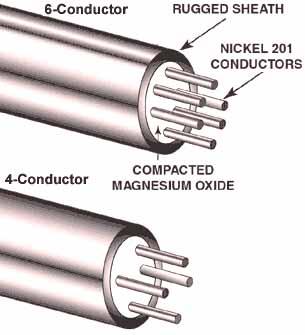

Mineral insulated metal sheathed RTD Cable, has a stainless steel or Inconel outer metal sheath with copper or Nickel signal wire conductors. The conductor lead wires are insulated from each other and the outer sheath by compacted magnesium oxide MgO. Metric and standard US inch diameters are manufactured in a range of OD sizes with 2, 3, 4 or 6 wire internal conductors. The 4 wire design is produced in wide or standard pattern layout in various diameters.
Sheath Diameter available |
2, 2.4, 3.0, 3.2, 4.0, 4.5,4.8, 5.0, 6.0, 6.4, 8.0mm |
Conductor material: |
Copper or Nickel |
Core number |
3, 4 or 6 |
Sheath Material |
SUS321(SS304) SUS316 |
Sheath Material |
Continuous Max. Temperature |
Melting Temperature |
Application Notes |
304 |
900°C |
1400°C |
Good resistance to corrosion and oxidation |
316 |
925°C |
1370°C |
Good corrosion resistance and creep strength at elevated temperatures (Mo). Resists tendency to pit in phosphoric and aetic acids. Withstands sulphuric acid compounds. |
Symbol |
Wire material |
Recommended max. temperature |
(CU) |
Copper |
400°C |
(NI) |
Nickle |
600°C |
(AQ) |
Constantan |
650°C |
Feature:
1. Available in Copper or Nickel Conductors
2. 3, 4 or 6 cores
3. 99.4% high purity Mgo insulation
4. Sheath material: SUS321(SS304),SUS316
5. Wider spacing available
6. Cable diameters currently available (in mm): 2, 2.4, 3.0, 3.2, 4.0, 4.5,4.8, 5.0, 6.0, 6.4, 8.0mm
Application:
MI RTD cable is used in combination with an RTD. The Copper, Nickel or Constantan wires ensure a stable transmission of the signal and our two different designs (wide-spaced and regular spaced) guarantee efficient mounting for either method.
