Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO/CE/UL |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | USD 2.5-10 FOB Shanghai/PC |
| Packaging Details: | Export Carton Package or as Customer Request |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | T/T, Western Union, L/C,PayPal |
| Supply Ability: | 10000pcs |
| Product Name: | KNE Thermocouple Connection Head | Application: | Industrial |
|---|---|---|---|
| Material: | Aluminum ADC12 | Painting: | Lacquer Painting Polyester Powder Coating |
| Color: | Silver RAL Color Code | Feature: | High Precision Painting |
| High Light: | temperture sensor component,industrial heating elements,Aluminum ADC12 Thermocouple Connection Head |
||

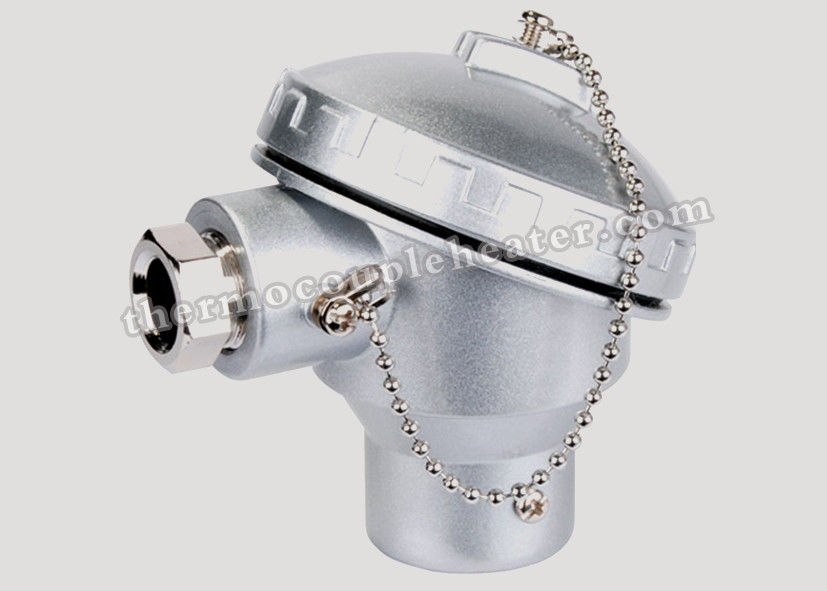

KNE Aluminum ADC12 Thermocouple Connection Head of Temperature Sensor Accessory
1. Specifications
|
Material: |
Wire entry |
Probe entry |
|
Aluminium ADC12 |
M20*1.5 |
M24x1.5 |
|
Paniting: |
NPT1/2" |
M33x1 |
|
lacquer painting |
NPT3/4" |
NPT1/2" |
|
polyester powder coating |
G1/2" |
NPT3/4" |
|
Colour: |
G3/4" |
G1/2" |
|
Silver |
|
G3/4" |
|
RAL colour code |
|
|

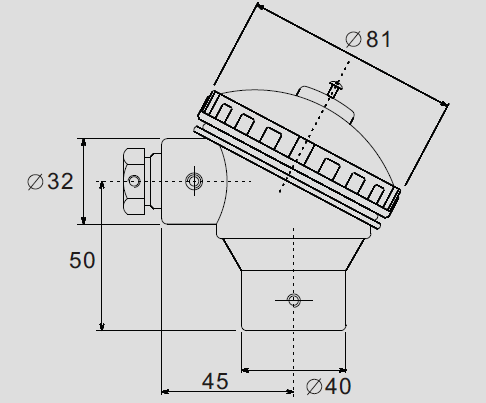

2. Drawing picture
3. Description
1. KNE Thermocouple head
2.Type: KNE, all type available
3. Material: Aluminum(ADC-12), Stainless steel
4. Wire entry: M20*1.5, G1/2’’, G3/4’’, NPT1/2’’, NPT3/4’’
5.Tube entry: M12*1, M16*1, M20*1, M22*1, M24*1, M27*1’’, M33*1, G1/2’’, G3/4’’,
6. NPT1/2’’, NPT3/4’’
7. Hole to hole distance: H=33±0.1mm, H=36±0.1mm, H=40±0.1mm
8. Weight: 274g/pc
9. Standard wire entry and probe entry;
10. Wide range of specification;
11. High precision painting
12. Accessory: cover sealing and cable gland sealing in silicone free material
13. Protection level: IP65 of IEC529 Enclosure protection class
14. Ceramic terminal block: 2p-c, 3p-c, 4p-c, 6p-c
15. Bakelite terminal block: 2p-b, 3p-b, 4p-b, 6p-b
16. Place of Origin: China (Mainland)
17. Eco-friendly: Yes
18. MOQ: 50PCS
19. Certificate: ISO,
20. Making sample time: all type in stock
21. Trade term: FOB, EXW, CIF, CFR
22. Payment term: T/T, Western Union, Paypal
4. Applications
Connecting with thermocouple and instrument machine
5. Competitive Advantage
1. Beautiful outlook and good performance
2. Suitable for all kinds of thermocouple or thermal resistance
3. Small minimum order quantity
4. All sizes available
5. Make head with logo according to your demand
6. Excellent corrosion resistance
7. Moisture and dust-resistant
8. High precision painting
