ANSI Type E Extension Grade Thermocouple Wire: 24AWG PFA Teflon/Teflon Insulation

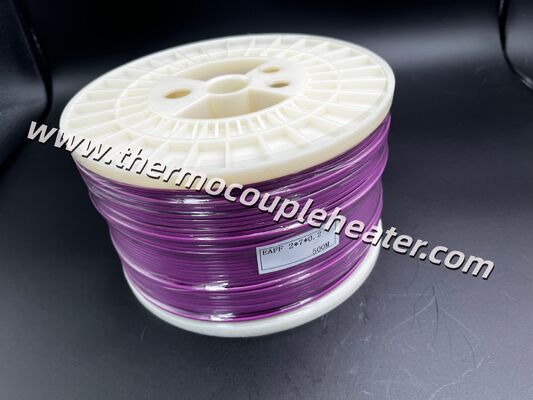

Large Image : ANSI Type E Extension Grade Thermocouple Wire: 24AWG PFA Teflon/Teflon Insulation

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	500 meters
Packaging Details:	Standard exporting package
Delivery Time:	10-20 days
Payment Terms:	T/T, Paypal
Supply Ability:	1,000,000 meters per month

Contact Now

Detailed Product Description

Type:	E	Insulation Material:	Teflon
Jacket Material:	Teflon	Dimension:	12-32AWG, Customized
Temperature Range:	Up To 260℃	Color:	ANSI Standard, Or Customized
Highlight:	ANSI Type E thermocouple wire , 24AWG PFA Teflon thermocouple wire , Extension grade thermocouple cable

ANSI Type E Extension Grade Thermocouple Wire: 24AWG PFA Teflon/Teflon Insulation

Product Overview

Our Type E (Chromel/Constantan) extension wire is the cost-effective solution for long-distance signal transmission from sensors to control rooms. As an Extension Grade (EX) cable, it is specifically designed to provide a reliable electrical match to Type E thermocouples while significantly reducing overall project costs compared to using expensive thermocouple-grade wire for full-run cabling.

Featuring premium PFA Teflon insulation, this 24AWG stranded wire maintains its physical integrity in extreme environments from -200°C up to +260°C, offering excellent resistance to chemicals and moisture for industrial-scale installations.

Construction

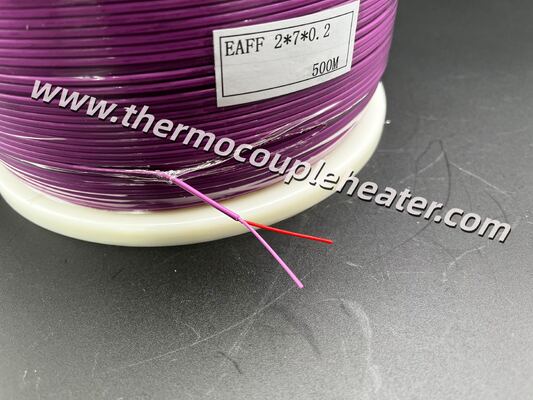

ANSI Type E Extension Grade Thermocouple Wire: 24AWG PFA Teflon/Teflon Insulation 0

Technical data:

Conductor
Type	EX
Grade	Extension grade
Material	+ Chromel / - Constantan
Constructure	Multi-stranded
Number of Strands / Strand Diameter (mm)	2 x 7 / 0.2mm
Section Area (mm2)	2 x 24AWG approx. 0.2mm²
Insulation
Material	Teflon PFA
Color	+Purple / -Red
Number of Pairs	1 pair
Laying	In parallel
Outer Jacket
Material	Teflon PFA
Color	Purple
Overall
Operating Temperature	Up to +260℃ Continuous

Order Code Example

When asking for quotations, customers are required to provide order specifications, including

- Type

- Working temperature

- Conductor Size

- Constructure

- Color Code

- Order Quantity

Example:

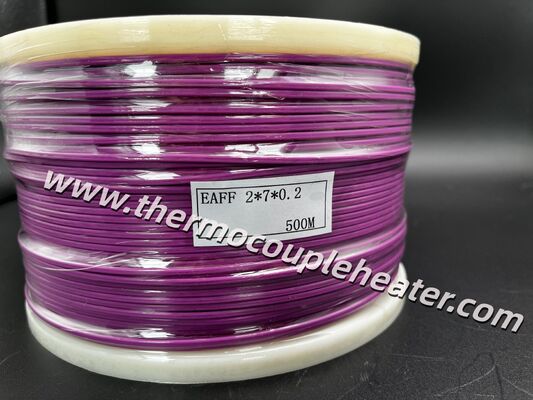

ANSI Type E Extension Grade Thermocouple Wire: 24AWG PFA Teflon/Teflon Insulation 1
