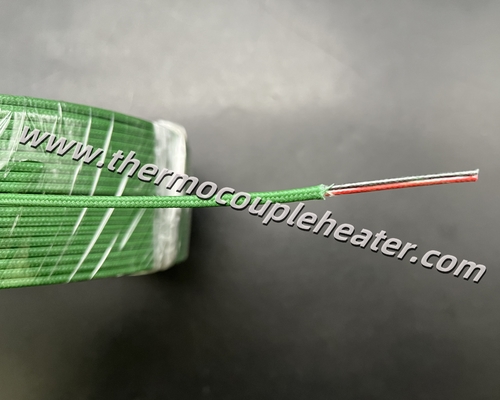

Thermocouple Compensating Cable Type S Special Fiberglass Insulation Temperature Resistance 700℃

Large Image : Thermocouple Compensating Cable Type S Special Fiberglass Insulation Temperature Resistance 700℃

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	500 meters
Packaging Details:	Standard exporting package
Delivery Time:	5-15 days
Payment Terms:	L/C, Western Union, T/T, Paypal
Supply Ability:	1,000,000 meters per month

Contact Now

Detailed Product Description

Type:	S	Insulation Material:	Fiberglass-700℃
Jacket Material:	Fiberglass-700℃	Dimension:	12-32AWG, Customized
Temperature Range:	Up To 700℃	Color:	ANSI Standard, Or Customized
Application:	Ultra-high Temperature Industrial Processes
Highlight:	Temperature Resistance Thermocouple Compensating Cable , Special Fiberglass Insulation Thermocouple Compensating Cable , Type S Thermocouple Compensating Cable

Thermocouple Cable Type S Special Fiberglass Insulation Temperature Resistance 700℃

1. Brief Introduction

Thermocouple compensation cables are used to extend signals from the sensor to instrumentation. Unlike true extension cables, which use the same thermocouple alloys and can be used to make thermocouples, compensation cables are made from cheaper alloys that approximate the thermoelectric properties of extension cables over a limited temperature range. While less accurate and suitable only for ambient temperatures, they offer a cost-effective alternative for signal transmission.

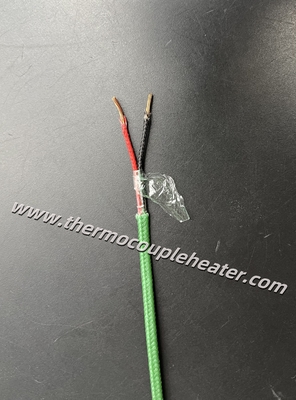

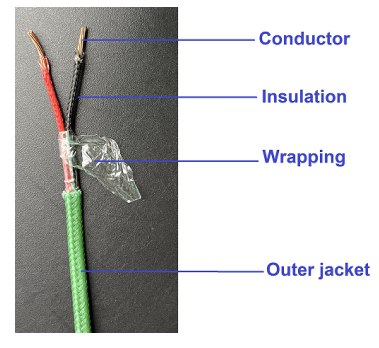

2. Construction

Thermocouple Compensating Cable Type S Special Fiberglass Insulation Temperature Resistance 700℃ 0

3. Technical data:

Conductor
Type	S
Material	+ Cu / - CuNi
Constructure	Multi-stranded
Number of Strands / Strand Diameter (mm)	2 x 7 / 0.3±0.02mm
Section Area (mm2)	2 x 20AWG approx. 0.5mm²
Insulation
Material	Fiberglass-700℃ braided
Color	+ Black, - Red
Number of Pairs	1 pair
Laying	In parallel
Wrapping
Material	PVC film, to prevent insulation staining
Color	Transparent
Outer Jacket
Material	Fiberglass-700℃ braided
Color	Green
Overall
Working temperature range	Up to 700℃

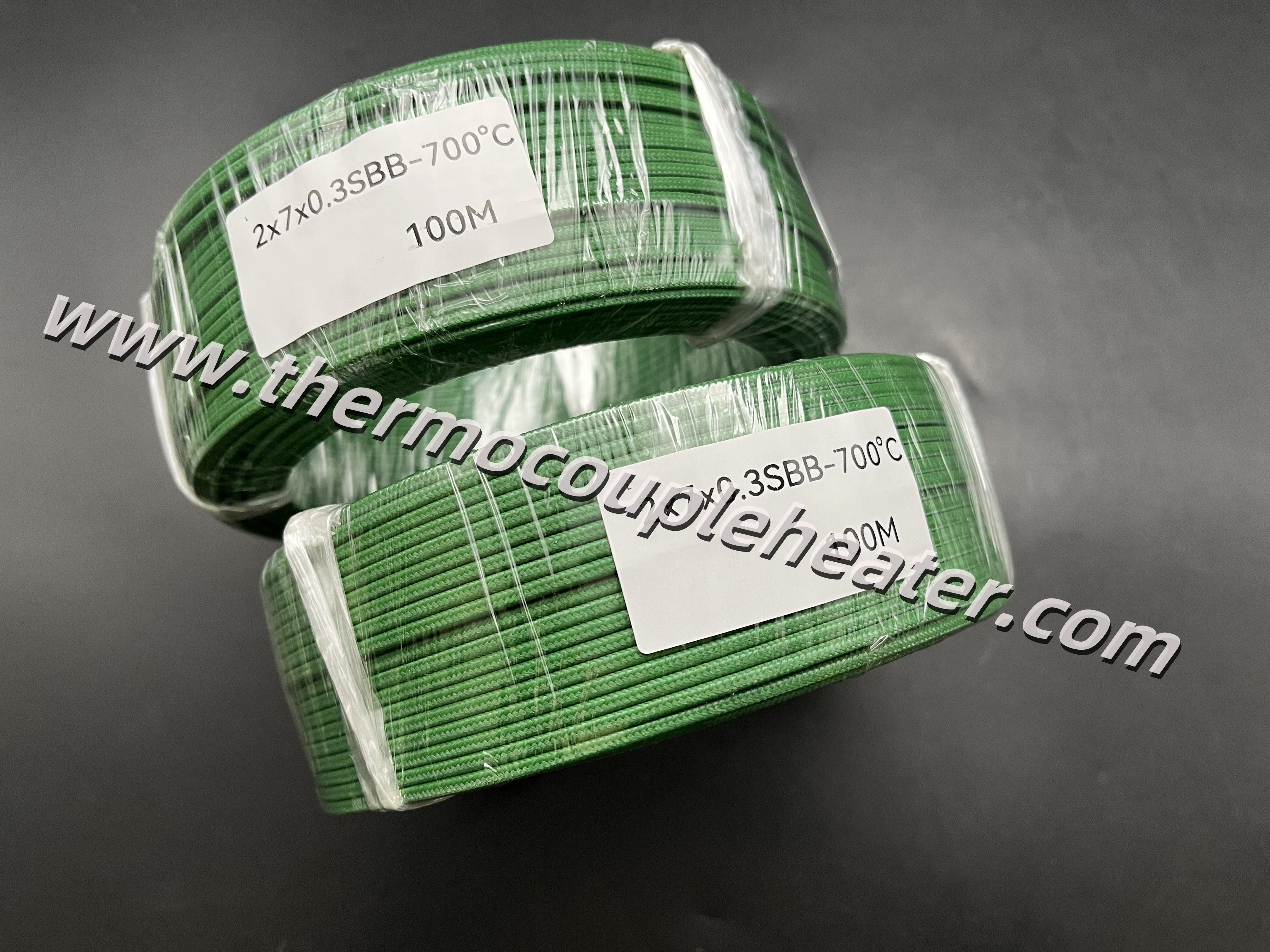

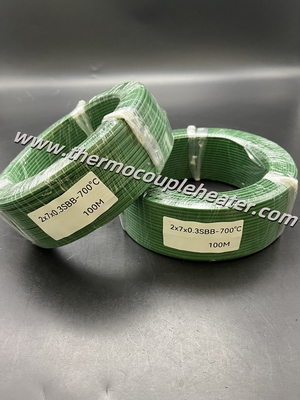

Meters per coil	100 meters per roll

4. Order Code Example

When asking for quotations, customers are required to provide order specifications, including

- Type

- Working temperature

- Conductor Size

- Constructure

- Color Code

- Order Quantity

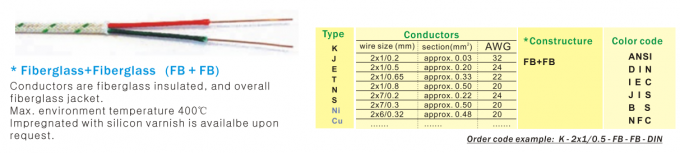

Example:

Thermocouple Compensating Cable Type S Special Fiberglass Insulation Temperature Resistance 700℃ 1
