Thermocouple cable type T and K in thermocouple grade in PTFE material

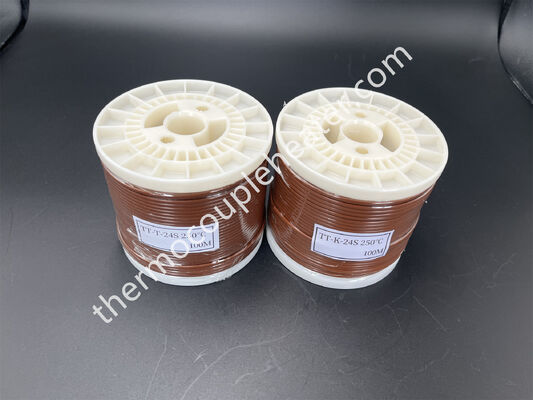

Large Image : Thermocouple cable type T and K in thermocouple grade in PTFE material

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE
Model Number:	type K, Type J

Payment & Shipping Terms:

Minimum Order Quantity:	500meters
Price:	USD$0.5-1.5/meter
Packaging Details:	carton
Delivery Time:	10 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20000meters

Contact Now

Detailed Product Description

Type:	Insulated	Conductor Material:	Ni Si Cr
Insulation Material:	Silicone, Fiberglass PFA, FEP, PTFE, PVC	Sheath Material:	Fluoroplastic
Treatment:	Hydrogen Annealing	Size:	As Customized Size
Highlight:	PTFE thermocouple cable type T , thermocouple grade type K cable , thermocouple compensating cable PTFE

Thermocouple cable type T and K in thermocouple grade in PTFE material

Description:

1. Style:Compensation Wire
2. Thermocouple RTD wire
Thermocouple RTD wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Products Description:

Detailed Parameter of thermocouple cable

Thermocouple Code	Comp. Type	Comp. Wire Name	Positive		Negative
Thermocouple Code	Comp. Type	Comp. Wire Name	Name	Code	Name	Code
S	SC	copper-constantan 0.6	copper	SPC	constantan 0.6	SNC
R	RC	copper-constantan 0.6	copper	RPC	constantan 0.6	RNC
K	KCA	Iron-constantan22	Iron	KPCA	constantan22	KNCA
K	KCB	copper-constantan 40	copper	KPCB	constantan 40	KNCB
K	KX	Chromel10-NickelSi3	Chromel10	KPX	NickelSi3	KNX
N	NC	Iron-constantan 18	Iron	NPC	constantan 18	NNC
N	NX	NiCr14Si-NickelSi4Mg	NiCr14Si	NPX	NickelSi4Mg	NNX
E	EX	NiCr10-Constantan45	NiCr10	EPX	Constantan45	ENX
J	JX	Iron-constantan 45	Iron	JPX	constantan 45	JNX
T	TX	copper-constantan 45	copper	TPX	constantan 45	TNX
