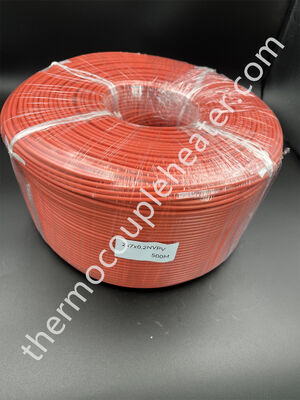

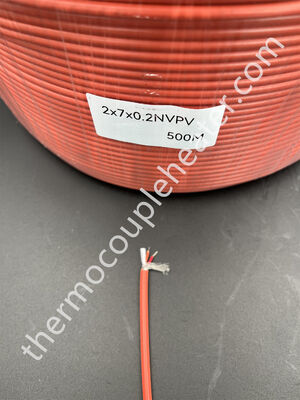

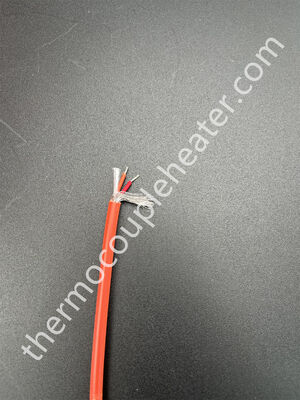

Thermocouple type N Extension Wire Cable in PVC and metal mesh

Large Image : Thermocouple type N Extension Wire Cable in PVC and metal mesh

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE
Model Number:	type K, Type J

Payment & Shipping Terms:

Minimum Order Quantity:	500meters
Price:	USD$0.5-1.5/meter
Packaging Details:	carton
Delivery Time:	10 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20000meters

Contact Now

Detailed Product Description

Type:	Insulated	Conductor Material:	Ni Si Cr
Insulation Material:	Silicone, Fiberglass PFA, FEP, PTFE, PVC	Sheath Material:	Fluoroplastic
Treatment:	Hydrogen Annealing	Size:	As Customized Size
Highlight:	Thermocouple type N extension wire , PVC shielded thermocouple cable , Metal mesh thermocouple compensating wire

Thermocouple type N Extension Wire Cable in PVC and metal mesh

Description:

1.Style:Compensation Wire
2.Thermocouple RTD wire
Thermocouple RTD wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Products Description:


			Thermocouple Variety and Index

			Variety

			Type

			Measurement Range(°C)

			NiCr-NiSi

			K

			-200-1300

			NiCr-CuNi

			E

			-200-900

			Fe-CuNi

			J

			-40-750

			Cu-CuNi

			T

			-200-350

			NiCrSi-NiSi

			N

			-200-1300

			NiCr-AuFe0.07

			NiCr-AuFe0.07

			-270-0

Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire

Dimensions / Tolerance mm ) : 4.0+-0.25

Color code & initial calibration tolerances for thermocouple wire:

			Thermocouple Type
			ANSI Color Code
			Initial Calibration Tolerances

			Wire Alloys
			Calibration
			+/-

			Conductor
			Jacket
			Temperature Range
			Standard

			Limits
			Special

			Limits

			Iron(+) vs.

			Constantan(-)
			J
			White/Red
			Brown
			0°C to +285°C

			285°C to +750°C
			±2.2°C

			± .75%
			±1.1°C

			± .4%

			CHROMEL(+) vs.

			ALUMEL(-)
			K
			Yellow/Red
			Brown
			-200°C to -110°C

			-110°C to 0°C

			0°C to +285°C

			285°C to +1250°C
			± 2%

			±2.2°C

			±2.2°C

			± .75%
			±1.1°C

			± .4%

			Copper(+) vs.

			Constantan(-)
			T
			Blue/Red
			Brown
			-200°C to -65°C

			-65°C to +130°C

			130°C to +350°C
			± 1.5%

			±1°C

			± .75%
			± .8%

			± .5°C

			± .4%

			CHROMEL(+) vs.

			Constantan(-)
			E
			Purple/Red
			Brown
			-200°C to -170°C

			-170°C to +250°C

			250°C to +340°C

			340°C+900°C
			± 1%

			±1.7°C

			±1.7°C

			± .5%
			±1°C

			±1°C

			± .4%

			± .4%

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728

Other Products

Thermocouple cable type T and K in thermocouple grade in PTFE material

type: insulated

conductor material: Ni Si Cr

insulation material: Silicone, fiberglass PFA, FEP, PTFE, PVC

sheath material: Fluoroplastic

Reliable Precision Up To 1100°C: Type K Quartz Fiber Braided Thermocouple Cable

Type: K

Insulation Material: Quartz Fiberglass-1000℃

Jacket Material: Quartz Fiberglass-1000℃

Dimension: 12-32AWG, customized

Thermocouple Compensating Cable Type S Special Fiberglass Insulation Temperature Resistance 700℃

Type: S

Insulation Material: Fiberglass-700℃

Jacket Material: Fiberglass-700℃

Dimension: 12-32AWG, customized

Pt100 RTD Extension Cable With Teflon Insulation And SS Braided Shielding

Insulation Material: PTFE

Shielding: Stainless steel braided

Jacket Material: PTFE

Type: RTD PT100

Insulated Kapton Thermocouple Cable With Extension Wire

type: insulated

conductor material: Ni Si Cr

insulation material: Silicone, fiberglass PFA, FEP, PTFE, PVC

sheath material: Fluoroplastic

Thermocouple type N Extension Wire Cable in PVC and metal mesh

Thermocouple type N Extension Wire Cable in PVC and metal mesh

Thermocouple type N extension wire

PVC shielded thermocouple cable

Metal mesh thermocouple compensating wire

extension grade thermocouple wire,

type k thermocouple extension wire,

compensating cable for k type thermocoupl

Thermocouple Variety and Index
Variety	Type	Measurement Range(°C)
NiCr-NiSi	K	-200-1300
NiCr-CuNi	E	-200-900
Fe-CuNi	J	-40-750
Cu-CuNi	T	-200-350
NiCrSi-NiSi	N	-200-1300
NiCr-AuFe0.07	NiCr-AuFe0.07	-270-0

Thermocouple Type		ANSI Color Code		Initial Calibration Tolerances
Wire Alloys	Calibration	+/- Conductor	Jacket	Temperature Range	Standard Limits	Special Limits
Iron(+) vs. Constantan(-)	J	White/Red	Brown	0°C to +285°C 285°C to +750°C	±2.2°C ± .75%	±1.1°C ± .4%
CHROMEL(+) vs. ALUMEL(-)	K	Yellow/Red	Brown	-200°C to -110°C -110°C to 0°C 0°C to +285°C 285°C to +1250°C	± 2% ±2.2°C ±2.2°C ± .75%	±1.1°C ± .4%
Copper(+) vs. Constantan(-)	T	Blue/Red	Brown	-200°C to -65°C -65°C to +130°C 130°C to +350°C	± 1.5% ±1°C ± .75%	± .8% ± .5°C ± .4%
CHROMEL(+) vs. Constantan(-)	E	Purple/Red	Brown	-200°C to -170°C -170°C to +250°C 250°C to +340°C 340°C+900°C	± 1% ±1.7°C ±1.7°C ± .5%	±1°C ±1°C ± .4% ± .4%
