Edge Forming Machine For Ceramic Band Heater Capable Of Rolling Wider Steel Strips
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | GME |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Standard exporting package |
| Delivery Time: | 1-3 weeks |
| Payment Terms: | L/C, Western Union, T/T, Paypal |
| Supply Ability: | 1000 units per month |
Detailed Product Description

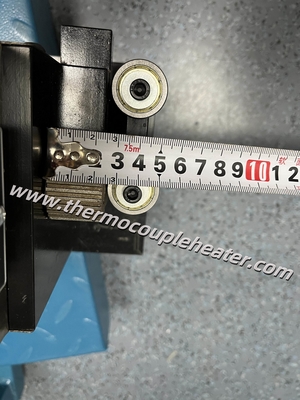

| Material: | Steel | Rolling Width: | 25mm |
|---|---|---|---|
| Size: | 460x150x260mm | Voltage: | 220V |
| Power: | 250W | Application: | Ceramic Band Heater Edge Forming |
| Highlight: | Ceramic Band Heater Edge Forming Machine,220V Edge Forming Machine |
||
Edge Forming Machine For Ceramic Band Heater Capable Of Rolling 25mm Wide Steel Strips
SAFETY
Pay attention to electricity safety.

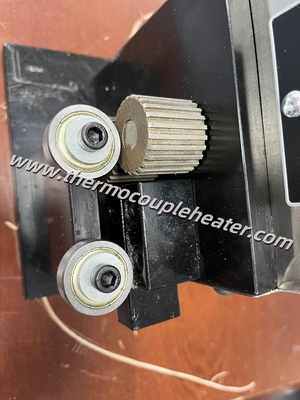

During operation, keep your hands away from the gear.
The equipment must be placed on a flat ground during installation and cannot be shaken.
INTRODUCTION

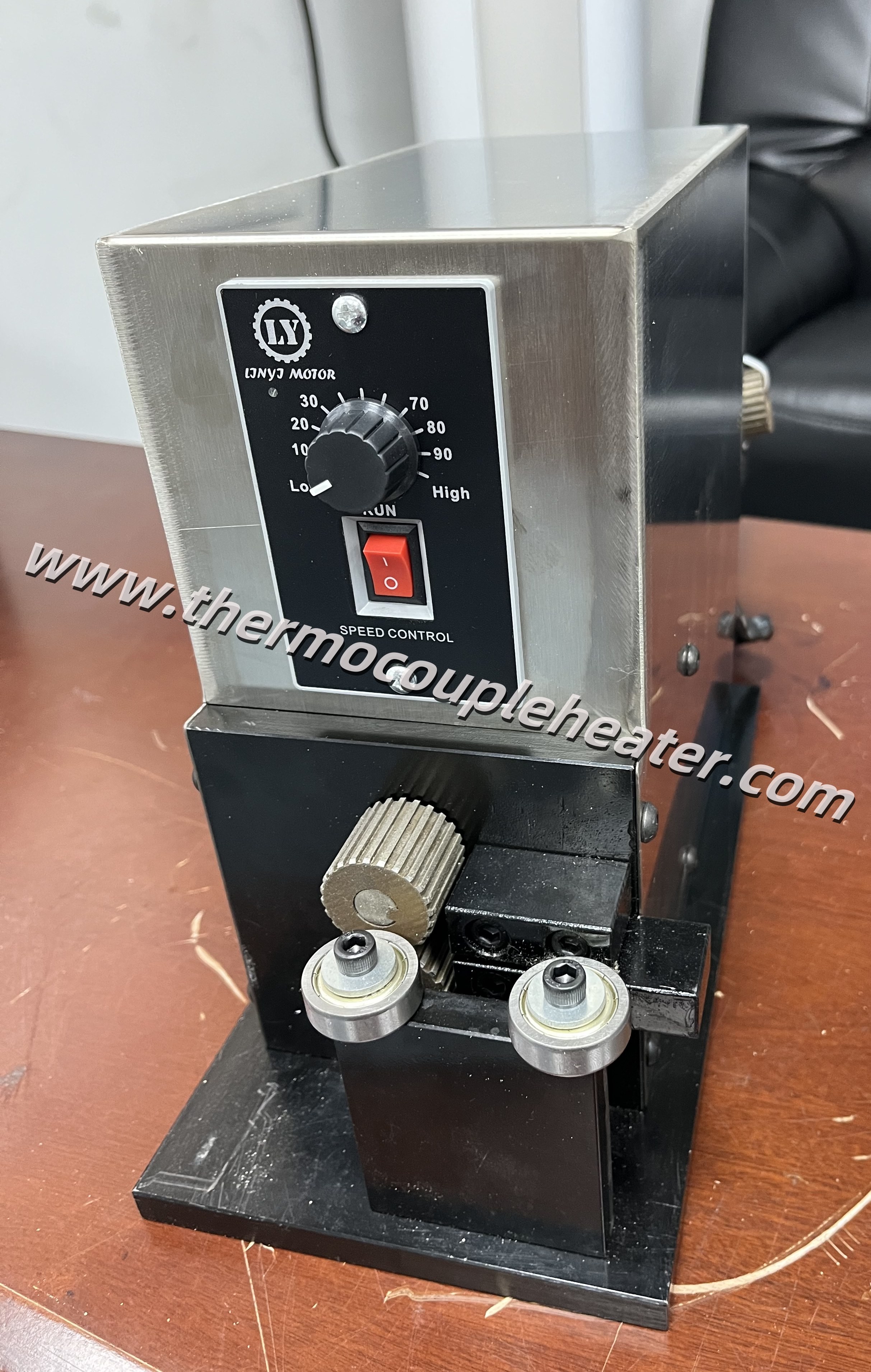

This machine presses the metal sheet into a corrugated shape, which is used for the edging of the ceramic band heater.
OPERATION INSTRUCTION
1. Power on, start switch

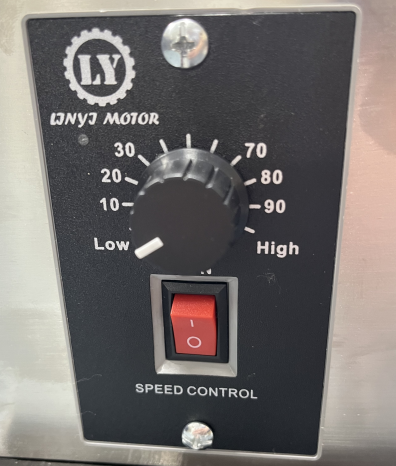

2. Prepare the metal sheet that need to be formed, and select the control speed.

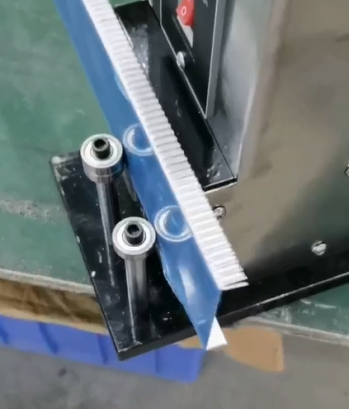

- Insert the metal sheet into the front of the gear and push it along the gear from beginning to end.
- Turn off the power after use.
Please see the attachment for the operation video.
SHIPPING LIST
One main unit, One power cable, One spare gear (one set contains two gears)
MAINTENANCE
1. After the gear is worn, the gear should be replaced in time
2. In terms of daily maintenance, it is necessary to clean the iron filings on the gears every day.
STORAGE
Pay attention to waterproof and moisture-proof.
TECHNICAL DATA
| Size | 460x150x260mm |
| Net. Weight | Around 12kg |
| Voltage | 220V |
| Power | 250W |
| Engine speed | Maximum 70-80 RPM, adjustable |
| Metal sheet size |
Stainless steel: Width ≤20mm; Thickness 0.3-0.8mm Width ≤25mm; Thickness 0.3-0.6mm Galvanized steel: Width ≤25mm; Thickness 0.3-1.0mm |
| Packing size | 56x20x30cm |
| Gross weight | Around 20kg |
