Ceramic Band Heater Edge Forming Machine, New Model, Smaller And Lighter

Ceramic Band Heater Edge Forming Machine, New Model, Smaller And Lighter

    • Ceramic Band Heater Edge Forming Machine, New Model, Smaller And Lighter
    • Ceramic Band Heater Edge Forming Machine, New Model, Smaller And Lighter
  • Ceramic Band Heater Edge Forming Machine, New Model, Smaller And Lighter

    Product Details:

    Place of Origin: China
    Brand Name: GME

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: Standard exporting package
    Delivery Time: 1-3 weeks
    Payment Terms: L/C, Western Union, T/T, Paypal
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Material: Steel Color: White
    Size: 460x150x260mm Gross Weight: 12kg
    Voltage: 220V Power: 250W
    Application: Ceramic Band Heater Edge Forming

    CERAMIC BAND HEATER FORMING EDGE MACHINE





    SAFETY

    Pay attention to electricity safety.

    During operation, keep your hands away from the gear.

    The equipment must be placed on a flat ground during installation and cannot be shaken.





    INTRODUCTION

    This machine presses the metal sheet into a wave shape, which is used for the edging of the ceramic band heater.



    Ceramic Band Heater Edge Forming Machine, New Model, Smaller And Lighter





    OPERATION INSTRUCTION

    1. Power on, start switch



    2. Prepare the metal sheet that need to be formed, and select the control speed.



    Ceramic Band Heater Edge Forming Machine, New Model, Smaller And Lighter

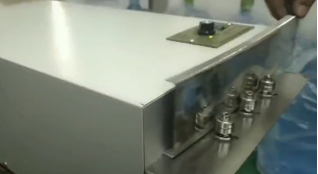

    3. Insert the metal sheet into the front of the gear and push it along the gear from beginning to end.



    Ceramic Band Heater Edge Forming Machine, New Model, Smaller And Lighter



    4. Turn off the power after use.





    PACKING LIST

    The product is equipped with a host, a power cord, and a spare gear (there are two gears in a set).





    MAINTENANCE

    1. After the gear is worn, the gear should be replaced in time

    2. In terms of daily maintenance, it is necessary to clean the iron filings on the gears every day.





    STORAGE

    Pay attention to waterproof and moisture-proof.





    TECHNICAL SPECIFICATIONS



    Size 460x150x260mm
    Net. Weight 12kg
    Voltage 220V
    Power 250W
    Material Steel
    Metal sheet size Width 5-20mm; Thickness 0.3-0.8mm
    Packing size 52x20x30cm
    Gross weight 20kg
