Heating Resistance Wire Winding Machine For Mica Heater And Cartridge Heater

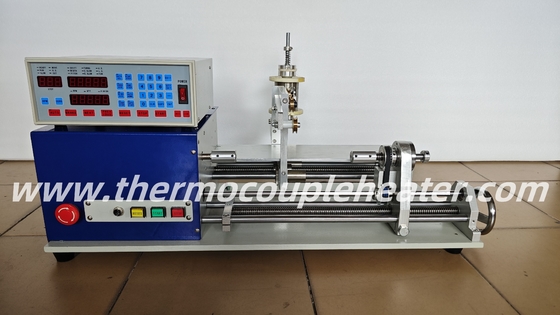

Large Image : Heating Resistance Wire Winding Machine For Mica Heater And Cartridge Heater

Product Details:

Place of Origin:	China
Brand Name:	GME
Model Number:	GME-830S

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	Standard exporting package
Delivery Time:	1-3 weeks
Payment Terms:	L/C, Western Union, T/T, Paypal
Supply Ability:	1000 units per month

Contact Now

Detailed Product Description

Voltage:	AC 220V	Motor:	Three Phase Machine 750W(1/2hp)
Number Of Wire Coil:	1	Size:	800330380mm
Gross Weight:	75KG	Application:	Mica Band Heating Wire Winding
Highlight:	Heating Resistance Wire Winding Machine , Cartridge Heater Winding Machine , Mica Heater Winding Machine

Heating Resistance Wire Winding Machine For Mica Heater And Cartridge Heater

Introduction

Long trip type mica winding machine can set starting point, wire size, winding width, number of turns, climbing turns, stop turns, winding speed,slow winding speed,winding direction, stopping at both ends, automatic reset, automatic start, auto jump to next slot and winding.

Heating Resistance Wire Winding Machine For Mica Heater And Cartridge Heater 0

Scope of application

Suitable for heating wire, resistance wire, mica sheet around the heating wire, mica band heating wire winding, porcelain tube winding , and all longer coil products.

Technical data

Item	Technical Parameter
Model	GME-830S
Power / voltage	single phase AC 220V 50/60HZ(110V optional)
Motor	three phase machine 750W(1/2hp)
Spindle speed	3000rpm
Spindle motor	Brushless DC
Number of wire coil	1
Winding wire gauge	Φ0.03-0.80mm
Winding length	1-320MM
Winding diameter	1-80mm
Storable winding groups	999 groups
Counting resolution	0.1 circle
Complete appliance weight	52kg
Machine Size	800330380mm
Wooden box size	950500560mm
Gross weight	75KG
