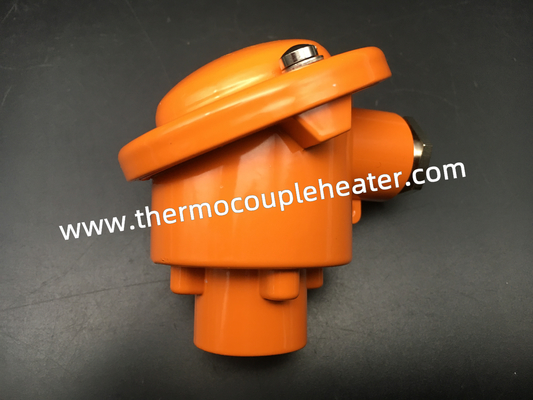

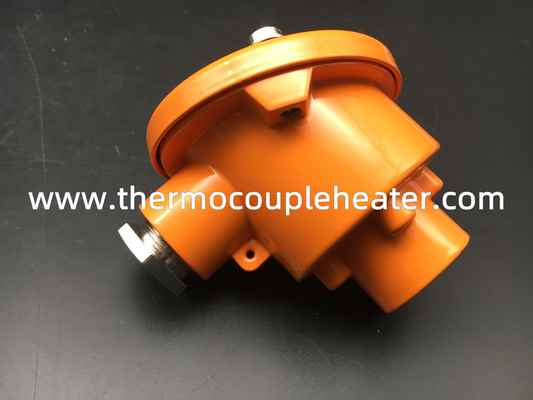

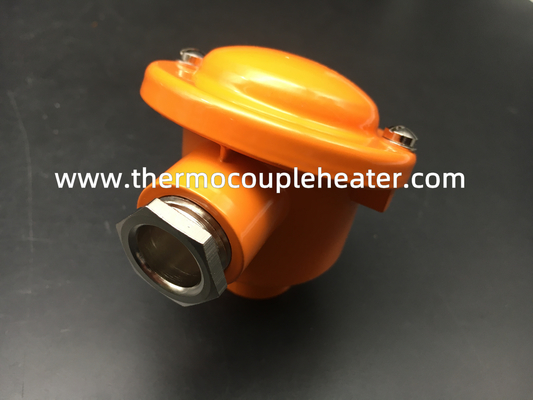

Customized Orange Aluminum Die Cast Thermocouple Connector Type KD
1. Description:
This heavy duty thermocouple is specifically designed for temperature sensing in arduous industrial environments such as blast or carburizing furnaces, kilns, large ovens and galvanising baths where their robust construction ensures a prolonged sensor life.
Thermocouple head is widely used in thermocouple and RTD assembly. It can be made of aluminium, stainless stee, bakelite or iron. Protection class IP65.
We can produce thermocouple heads in custom colors.
2. Specifications:
| 1. Approved IEC529 IP65 |
| 2. Thermocouple or RTD head |
| 3. Type: KD,KMC,KNE, KNY, KB, CMS, KSB, KSE, KSY, DAN, etc., all types available |
| 4. Material: Alluminum, stainless steel, bakelite or iron |
| 5. Wire entry: M20*1.5, NPT1/2’’, NPT3/4’’, G1/2’’, G3/4’’ |
| 6. Probe entry: M24*1.5, M16*1, G1/2’’, G3/4’’,NPT1/2’’, NPT3/4’’ |
| 7. Ball chain or Jack chain available |
| 8. Terminal block: 2P, 3P, 4P, 6P ,8P |
| 9. Terminal block material: Bakelite or ceramic. |
| 10. Wide range of specification; |
| 11. High precision painting |
| 12. Accessory: cover sealing and cable gland sealing in silicone free material |
| 13. Protection level: IP65 of IEC529 Enclosure protection class |
| 14. Place of Origin: China (Mainland) |
3. Technical Drawing:
