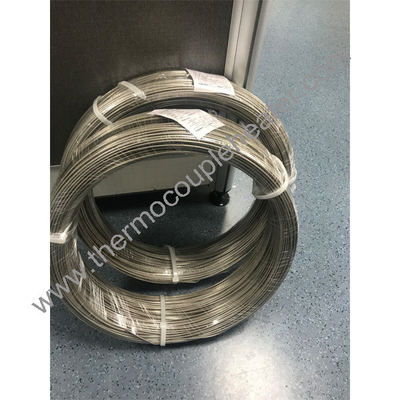

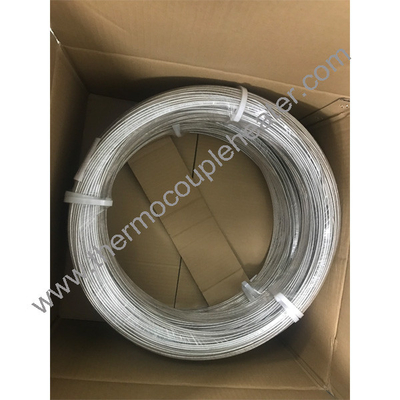

0.05mm To 10.0mm Alloy Wire NiCr-NiSi K Type Thermocouple Bare Wire

Large Image : 0.05mm To 10.0mm Alloy Wire NiCr-NiSi K Type Thermocouple Bare Wire

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	100meters
Price:	USD
Packaging Details:	carton
Delivery Time:	7-10days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100meter

Contact Now

Detailed Product Description

Model Number::	K ,J, N, E ,T ,S ,B, R	Application::	Connecting With Thermocouple And Instrument Machine
Conductor Material:	NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Kon	Insulation Material:	99.6% High Purity MgO
Sheath Material:	SS347,800,800H,825,INCONEL601,INCONEL625,GH4145	Dia(mm):	From 0.25mm To 12.7mm
Highlight:	K Type Thermocouple Bare Wire , NiSi Thermocouple Bare Wire , NiCr Thermocouple Alloy Wire

0.05mm to 10.0mm Alloy wire NiCr-NiSi K Type Thermocouple Bare Wire

Description:

NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.The main chemical composition of positive leg NiCr (KP) are Ni≈90% and Cr≈10%; negative leg NiSi (KN) are Ni≈97% and Cr≈3%. The operating temperature range is -200~1300°C(for short term) and 0~1100°C( for long term) .

Thermocouple bare wire is used at temperatures up to 1260°C (2300°F). MICC thermocouple bare
wire is supplied with bright or oxidized surface according to standard or special EMF requirements.

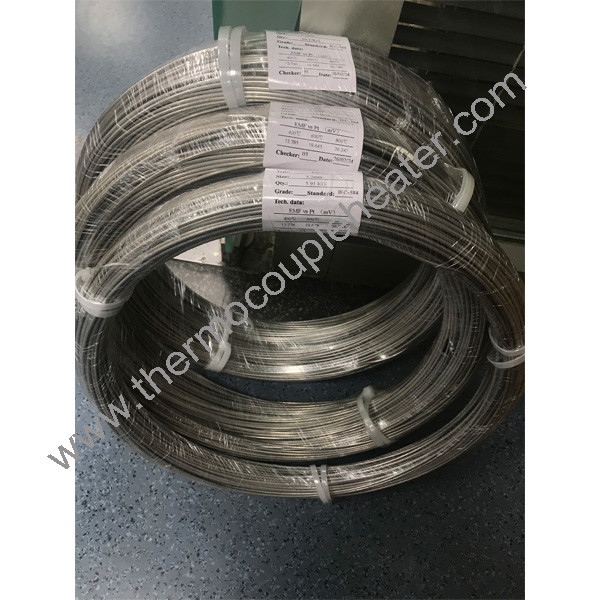

Each individual lead is calibrated against platinum and the EMF values are shown on each coil or spool.

Thermocouple Variety and Index
Variety	Type	Measurement Range(℃)
NiCr-NiSi	K	–200–1300
NiCr-CuNi	E	–200–900
Fe-CuNi	J	–40–750
Cu-CuNi	T	–200–350
NiCrSi-NiSi	N	–200–1300
NiCr-AuFe0.07	NiCr-AuFe0.07	–270–0

0.05mm To 10.0mm Alloy Wire NiCr-NiSi K Type Thermocouple Bare Wire 0
