Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 100meters |
|---|---|
| Price: | USD |
| Packaging Details: | carton |
| Delivery Time: | 7-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100meter |
| Model Number:: | K ,J, N, E ,T ,S ,B, R | Application:: | Connecting With Thermocouple And Instrument Machine |
|---|---|---|---|
| Conductor Material: | NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Kon | Insulation Material: | 99.6% High Purity MgO |
| Sheath Material: | SS347,800,800H,825,INCONEL601,INCONEL625,GH4145 | Dia(mm): | From 0.25mm To 12.7mm |
| High Light: | Alumel Thermocouple Bare Wire,Chromel Thermocouple Bare Wire,Thermocouple Bare Wire Type K |
||

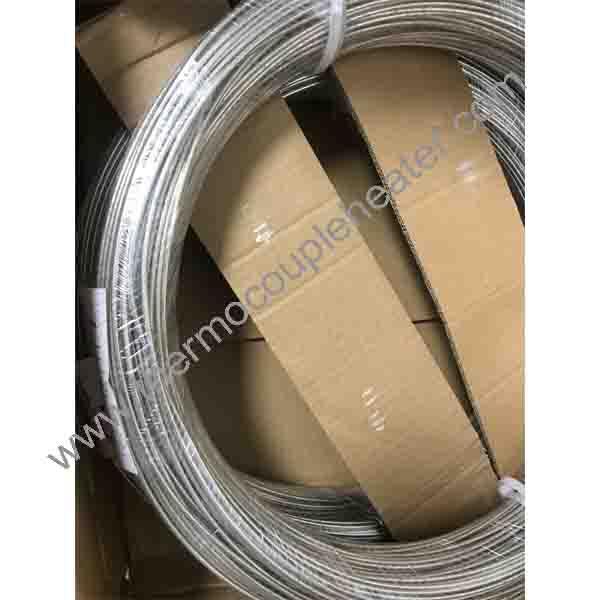

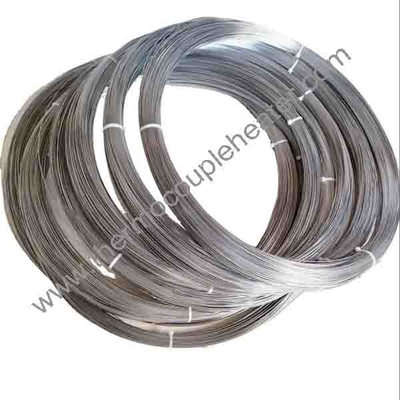

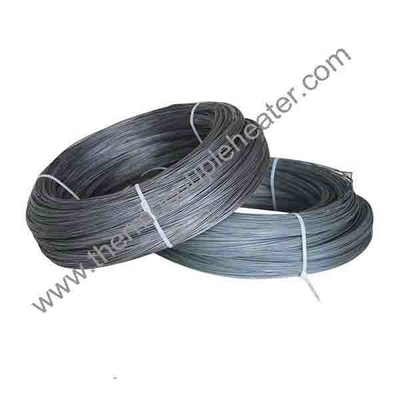

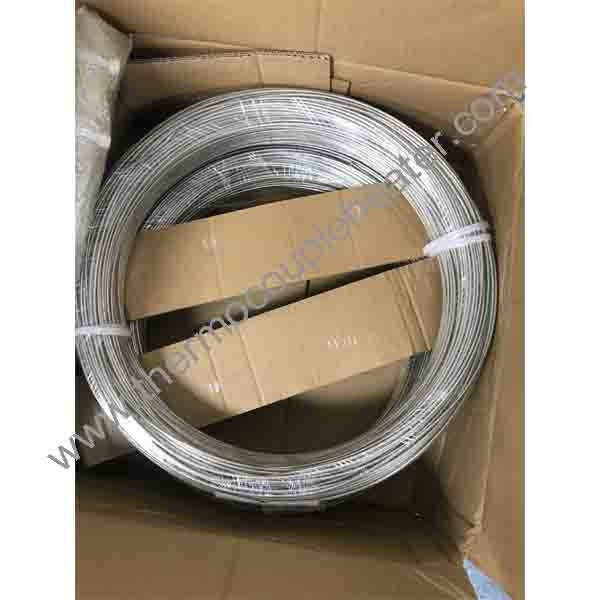

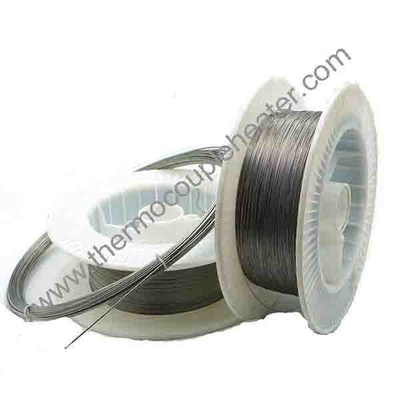

Chromel / Alumel Thermocouple Bare Wire (Type K)
Description:
NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.The main chemical composition of positive leg NiCr (KP) are Ni≈90% and Cr≈10%; negative leg NiSi (KN) are Ni≈97% and Cr≈3%. The operating temperature range is -200~1300°C(for short term) and 0~1100°C( for long term) .
Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following case:
(1) Alternatively oxidizing and reducing atmosphere,
(2) Atmosphere with sulphur gases,
(3) Long time in vacuum,
Type K Temperature Range:
(1)Thermocouple grade wire, -200~1300℃(for short term) and 0~1100℃( for long term)
(2)Extension wire, 32 to 392F (0 to 200C)
Working temperature:
| Diameter/mm | Long time Working | Short period Working |
| temperature/°C | temperature/°C | |
| 0.3 | 700 | 800 |
| 0.5 | 800 | 900 |
| 0.8,1.0 | 900 | 1000 |
| 1.2,1.6 | 1000 | 1100 |
| 2.0,2.5 | 1100 | 1200 |
| 3.2 | 1200 | 1300 |
