Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable For Industry

Large Image : Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable For Industry

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Temperature Range:	-200~650℃
Voltage:	12-480V	Probe Material:	Stainless Steel Or Nickel
Pairs Quantity Of Element:	Simplex/duplex	Heating Element:	Nichrome Resistance
Mounting:	Thread/flange/none	Function:	Temperature Sensor
Types Of Terminal Box:	Anti-spray/water-proof	Connection:	Thread
Highlight:	Thermocouple Mineral Insulated Cable , Type K Mineral Insulated Cable , Type R Thermocouple Mi Cable

Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable for Industry

Description:

K Type Thermocouple Mineral Insulated Electrical Cables (MI Cable)


Name: Sheath Wire Type K

Type: K, N, E, J, T

Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe Konstantan, Cu Konstantan

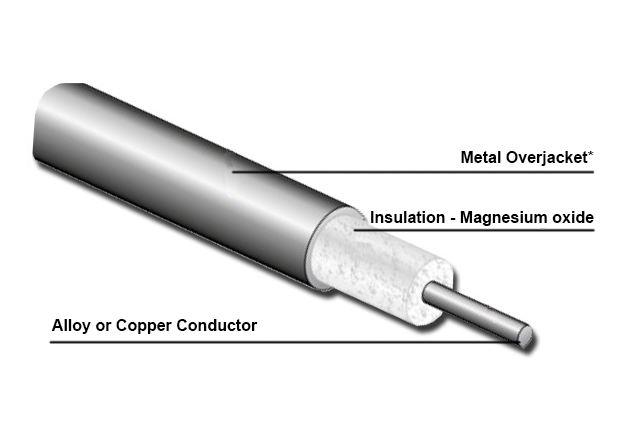

Insulator: 99.6% high purity MgO

Core number: 2, 4, 6

Sheath material: SS321(SS304), SS316, SS310, INCL600, Nicrobell

Dia(mm): from 0.25mm to 12.7mm

Application: connecting with thermocouple and instrument machine

Place of Origin: Jiangsu, China (Mainland)

Specification:

1) S/B/R type pt-rh thermocouple
2).wire diameter: 0.3 mm, 0.4 mm, 0.5 mm
3).length:can be customized as for customer's requirement
4).measuring range:0-1600 C
5).fixed device:screw thread/flange
6).terminal box: water-proof type, splash-proof type, anti-explosion type, connector type

1).material: PtRh10-Pt, PtRh30-PrRh6, PtRh13-Pt

2).use temperature:0-1300,0-1600

3).max temperature: 1800°C

4).experiment temperature: 0-1600°C

5).thermal response Time:≤120 s

Conductor material	Wire Calibration	Accuracy
		Class		Class
		Accuracy	Temperature range(℃)	Accuracy	Temperature range(℃)
Ni Cr-Ni Si	K	1.5 or 0.4%t	-40-1000	2.5 or 0.75%t	-40-1000
Ni Cr Si-Ni Si	E		-40-1100		-40-1200
NiCr-Konstantan	N		-40-800		-40-800
Fe-Konstantan	J		-40-750		-40-750
Cu-Konstantan	T	1 or 0.4%t	-40-350	1.5 or 0.75%t	-40-350
Pt Rh 10-Pt	S	1 or 1+t-1100x0.003	0-1600	1.5 or 0.25%t	0-1600
PtRh 13-Pt	R	1 or 1+t-1100x0.003	0-1600		0-1600
Pt Rh30-PtRh 6	B				600-1700

Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable For Industry 0
