| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 100meters |
|---|---|
| Price: | USD |
| Packaging Details: | carton |
| Delivery Time: | 7-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100meter |
| Model Number:: | K ,J, N, E ,T ,S ,B, R | Application:: | Connecting With Thermocouple And Instrument Machine |
|---|---|---|---|
| Conductor Material: | NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Kon | Insulation Material: | 99.6% High Purity MgO |
| Sheath Material: | SS347,800,800H,825,INCONEL601,INCONEL625,GH4145 | Dia(mm): | From 0.25mm To 12.7mm |

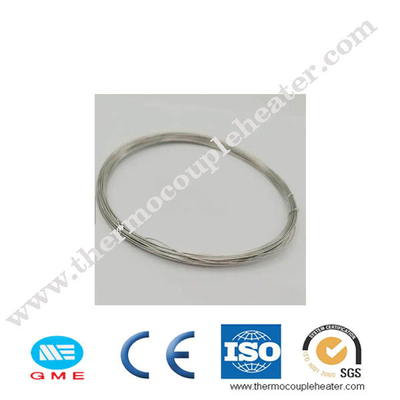

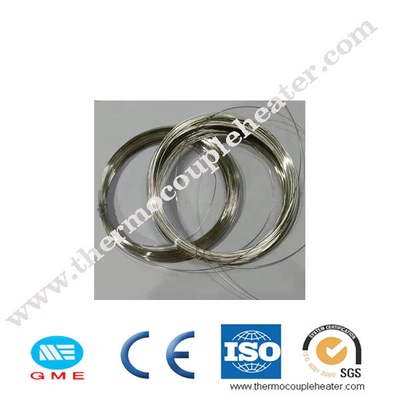

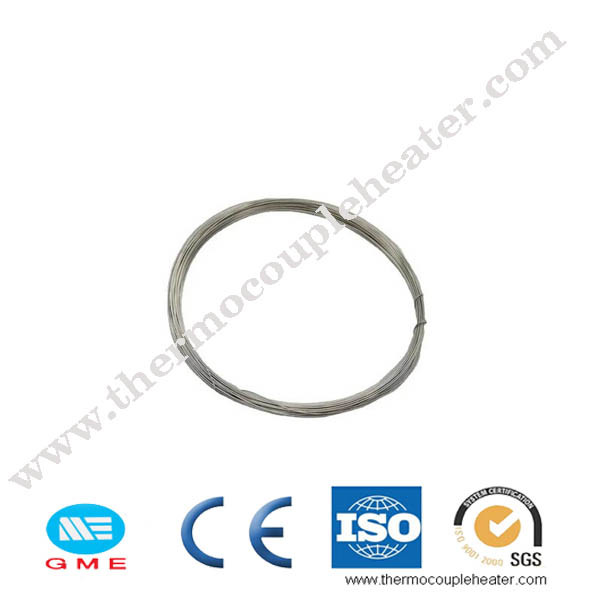

S/R/B Type Platinum Rhodium Thermocouple Bare Wire for high temperature thermocouple with customizable specification
Description:
High temperature thermocouple material (precious metal)
Common industrial precious metal thermocouple is platinum rhodium wire thermocouple, including thermocouple type B(PtRh6-PtRh30), S(Pt-PtRh10), R(Pt-PtRh13).
Platinum rhodium wire has the highest accuracy, the best stability, wide temperature range, long service life, high temperature upper limit in thermocouple series. Suitable for oxidizing and inert atmospheres, but not for reducing atmospheres or atmospheres containing metal or nonmetal vapors.

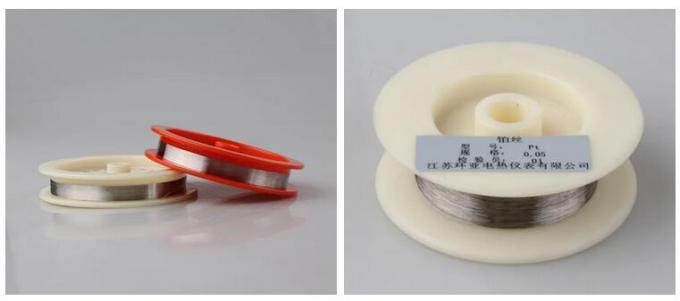

Platinum rhodium wire processing performance is good, less than 0.1mm wire used for rapid temperature thermocouple, widely used in metal smelting factory.
Medium and low temperature measuring materials (inexpensive metal)
K type thermocouple wire can effectively control the linear, the temperature point is controlled in 1.1℃, meet the aerospace standard.
N-type thermocouple wire have good thermoelectric potential accuracy accuracy and service life.
