Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Standard exporting package |
| Delivery Time: | 1-3 weeks |
| Payment Terms: | L/C, Western Union, T/T, Paypal |
| Supply Ability: | 1000 units per month |
| Material: | Steel | Color: | White |
|---|---|---|---|
| Size: | 450x250x200mm | Gross Weight: | 19kg |
| Voltage: | 220V | Power: | 200W |
| Application: | Ceramic Band Heater Edge Forming | ||
| High Light: | Ceramic Band Heater Edge Forming Machine,Stainless Steel Belt Edge Forming Machine,Belt 0.8mm Heater Edge Forming Machine |
||
SAFETY
Pay attention to electricity safety.
During operation, keep your hands away from the gear.
The equipment must be placed on a flat ground during installation and cannot be shaken.
INTRODUCTION

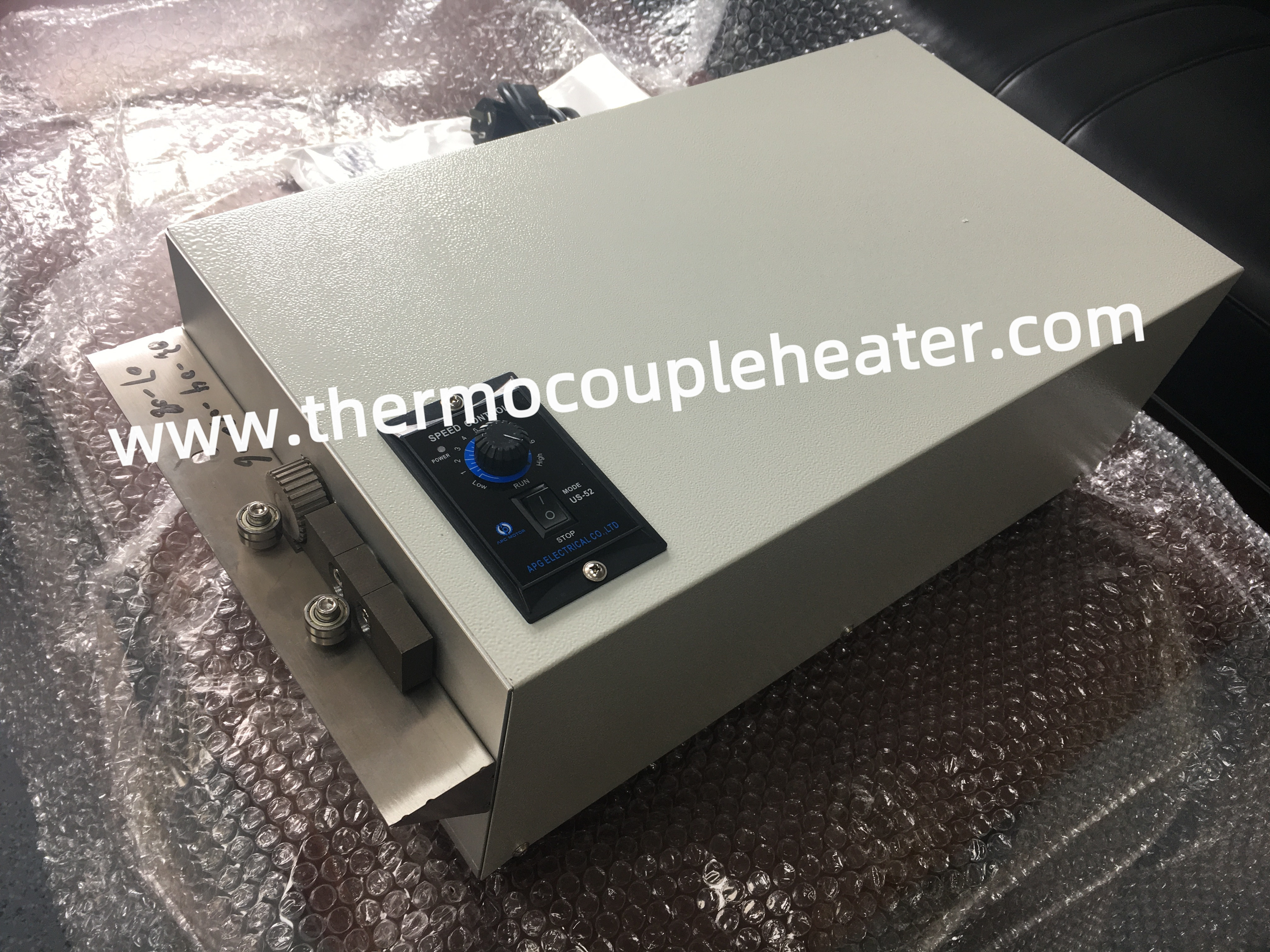

This machine presses the metal sheet into a wave shape, which is used for the edging of the ceramic band heater.
OPERATION INSTRUCTION
1. Power on, start switch

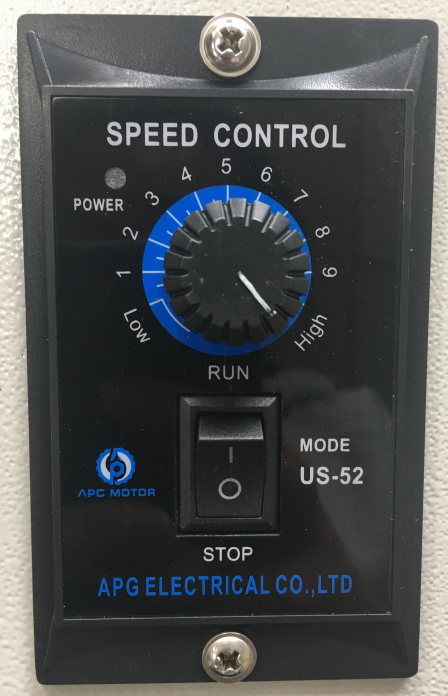

2. Prepare the metal sheet that need to be formed, and select the control speed.

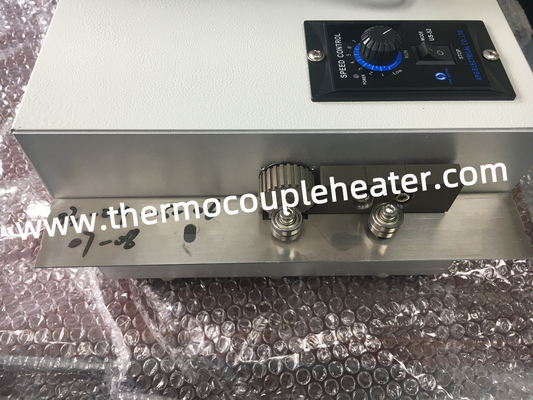

3. Insert the metal sheet into the front of the gear and push it along the gear from beginning to end.
4. Turn off the power after use.
PACKING LIST

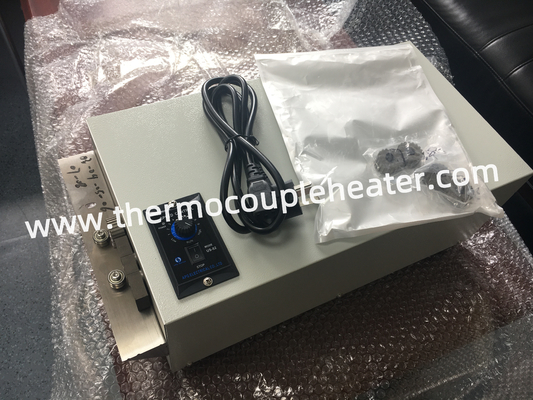

The product is equipped with a host, a power cord, and a spare gear (there are two gears in a set).
MAINTENANCE
1. After the gear is worn, the gear should be replaced in time
2. In terms of daily maintenance, it is necessary to clean the iron filings on the gears every day.
STORAGE
Pay attention to waterproof and moisture-proof.
TECHNICAL SPECIFICATIONS
| Size | 450x250x200mm |
| Weight | 17kg |
| Voltage | 220V |
| Power | 200W |
| Material | Steel |
| Color | White |
| Metal sheet size | Width 13mm-25mm; Thickness 0.3-0.8mm |
| Packing size | 455x160x210mm |
| Gross weight | 19kg |
