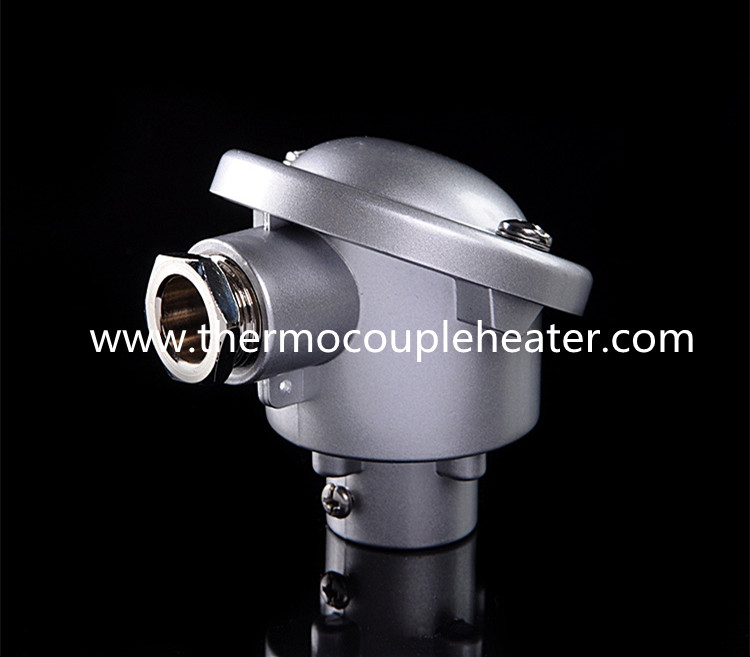

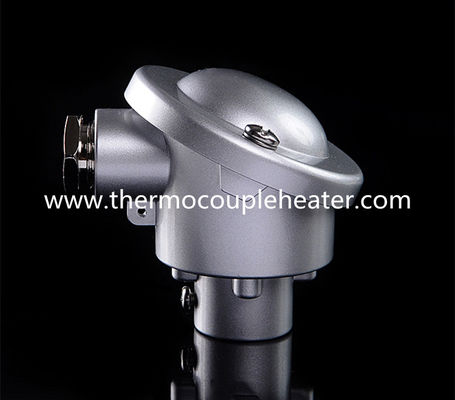

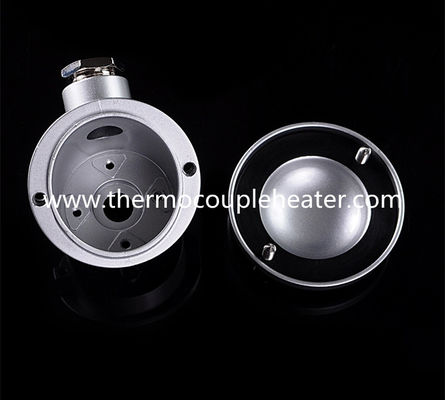

Aluminum Die Casting PT100 Type KD RTD Thermocouple Connection Head

Large Image : Aluminum Die Casting PT100 Type KD RTD Thermocouple Connection Head

Product Details:

Place of Origin:	China
Brand Name:	GME
Model Number:	KD

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Packaging Details:	Standard exporting package
Delivery Time:	10-20 Working Days
Payment Terms:	L/C, Western Union, T/T, Paypal
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Usage:	Connection Between Thermocouple And Extension Wire	Type:	KD,KMC,KNE, KNY, KB, CMS, KSB, KSE, KSY, DAN, Etc.
Material:	Alluminum, Stainless Steel, Bakelite Or Iron	Terminal Block:	2 Poles, 3 Poles, 4 Poles, 6 Poles
Fitting Block:	47mm	Thread:	Metric, NPT, BSPP
Protection Class:	IP65	Color:	Silvery, Orange, Red, Blue, Black, Customized.
Highlight:	Aluminum Die Casting Thermocouple Connection Head , Type KD Thermocouple Connection Head , PT100 RTD Connection Head

Aluminum Die Casting Connection Head For Thermocouple And RTD PT100 Type KD

1. Description:

This heavy duty thermocouple is specifically designed for temperature sensing in arduous industrial environments such as blast or carburizing furnaces, kilns, large ovens and galvanising baths where their robust construction ensures a prolonged sensor life.

Thermocouple head is widely used in thermocouple and RTD assembly. It can be made of aluminium, stainless stee, bakelite or iron. Protection class IP65.

2. Specifications:

1. Approved IEC529 IP65

2. Thermocouple or RTD head

3. Type: KD,KMC,KNE, KNY, KB, CMS, KSB, KSE, KSY, DAN, etc., all types available

4. Material: Alluminum, stainless steel, bakelite or iron

5. Wire entry: M20*1.5, NPT1/2’’, NPT3/4’’, G1/2’’, G3/4’’

6. Probe entry: M24*1.5, M16*1, G1/2’’, G3/4’’,NPT1/2’’, NPT3/4’’

7. Ball chain or Jack chain available

8. Terminal block: 2P, 3P, 4P, 6P ,8P

9. Terminal block material: Bakelite or ceramic.

10. Wide range of specification;

11. High precision painting

12. Accessory: cover sealing and cable gland sealing in silicone free material

13. Protection level: IP65 of IEC529 Enclosure protection class

14. Place of Origin: China (Mainland)

3. Technical Drawing:

Aluminum Die Casting PT100 Type KD RTD Thermocouple Connection Head 0
