1500RPM CNC Cartridge Heater Wire Winding Machine

1500RPM CNC Cartridge Heater Wire Winding Machine

1500RPM CNC Cartridge Heater Wire Winding Machine

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE
Model Number: No

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD3000
Packaging Details: wooden carton
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description
Name: Wire Winding Machine Speed: 0-1500RPM
High Light:

CNC Wire Winding Machine

,

1500RPM Wire Winding Machine

,

1500RPM Wire Coiling Machine

Cartridge Heaters Manufacture CNC Heating Resistance Wire Winding Coiling Machines

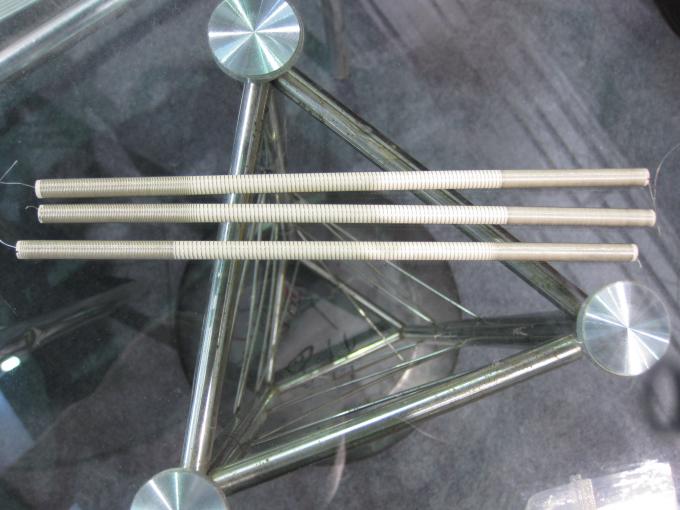

Cartridge heater wires CNC winding machine ,is use for mini diameter like 1.5mm 3mm 3.2mm 4mm 4.5mm 5mm 6mm the heating wires winding on MGO rod ,and also easy winding to Segmented heating type cartridge heaters heating wires winding on Mgo rod.



Spindle number 1
Wire size range 0.05-1.0mm
Loop Diameter 140mm
Max Wire Distance 9.9mm
Mgo Rod Length 0-600mm
Winder Width 600mm, 1500mm
Max. Speed 0-1500/min RPM
Spindle motor Three Phase motor + AC Drivers
Winder Motor stepping Motor
Max.Winder Diameter 80mm
Machine Size 1130x450x450mm
Package Size 1300x 520x 610mm
Net Weight 95kg
Gross Weight 151kg

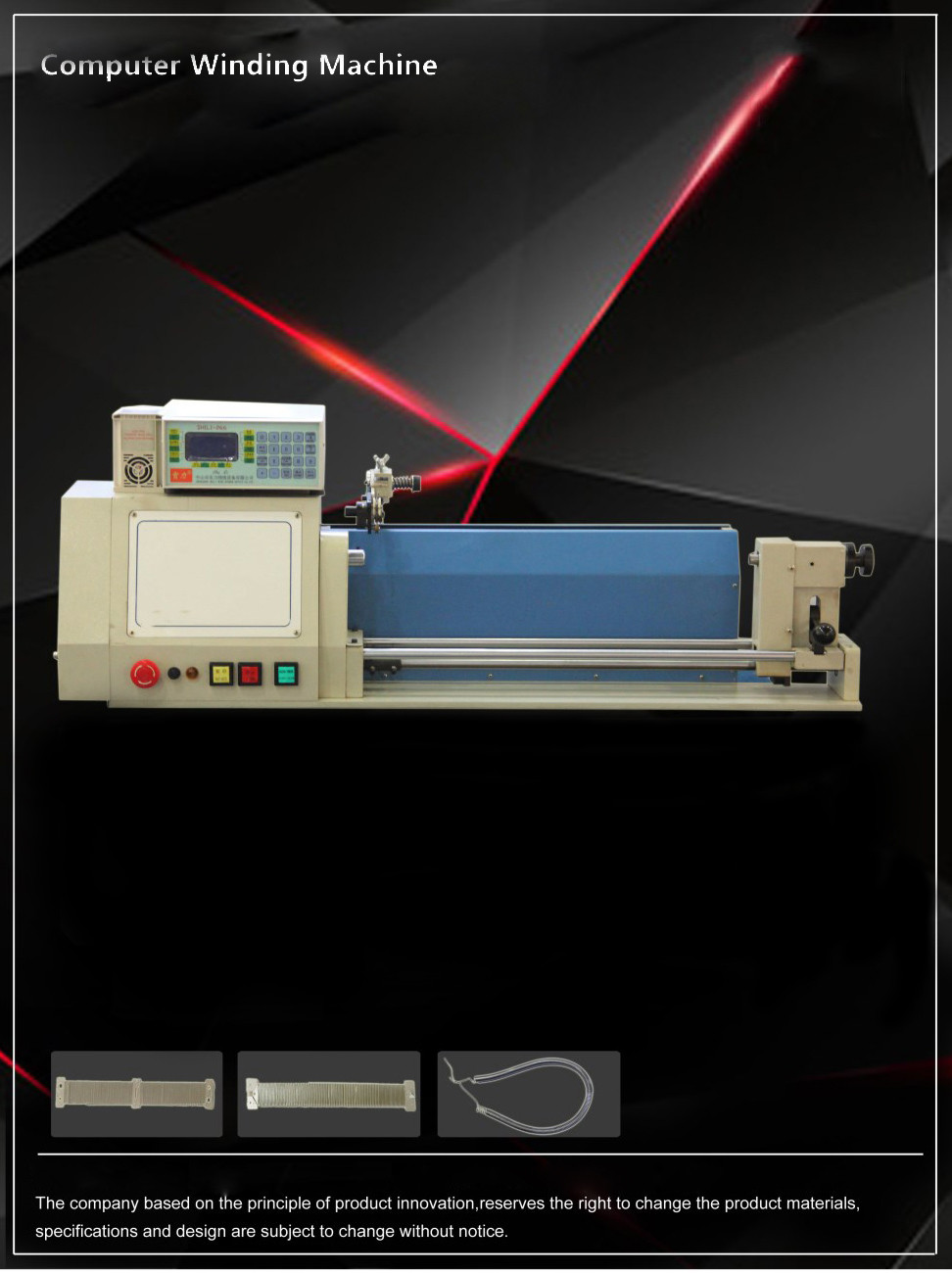

1500RPM CNC Cartridge Heater Wire Winding Machine

Features:

Professional winding various long type coil, two side spindle synchronous rotation, stable and reliable. this machine design of 32 bit controller chip. It will be faster and higer reliability. In Chinese and English display, easy to operation, winding data retention after power failure, not to discarded products. All the parts for this machine are imported prats, such as: Japan Bearing (NSK, NTN), Japan BANDO belt, Japan GATES Belt, Taiwan Ball Screw (TBI), Taiwan AC Drive and so on
