Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Current: | 0-20mA.4-20mA |
| Input Type: | K.J.R,S,B,E,N.T | Volt: | 0-5V.1-5V |
| RTD: | PT100.CU50 | Feature: | Economical |
| Operating Temperature: | 0~50℃ | Sampling Period: | 0.5s |
| High Light: | multi-zone temperature controller,hot runner temperature controller |
||

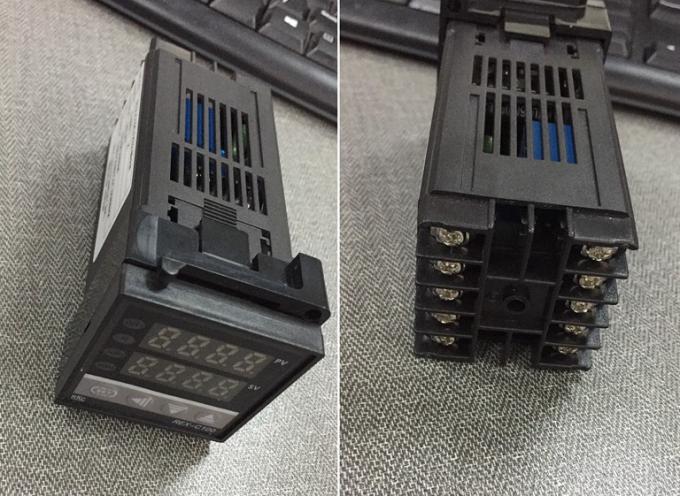

Temperature Controller 0-400 Degree Thermostat Switch Thermocouple Input Relay Output AC 220V
controllers
1.Specification
Input:Thermocouple/RTD
Output:Relay/SSR
Alarm:1
Power:100-240VAC
Product Feature:
*Dual display for both set temperature and process temperature
*Size:72*72
*Universal input,support 10 different types of thermocouple and RTD inpits by custimer selected at panel.
*Auto-turn function can find the best PID parameter automatically
*Display temperature in Celsius.
*Four digit LED display can go up to "999"
*Can be powered by either DC or AC power source.
*Uses it for Kiln,Furnace,Oven,Incubator temperature control
*Uses it in heating,control as well ad for cooling control
*It is used in various industries to control and monitor process temperatures.
| Input type |
TC:K.E.S.R.J.T.B.Wre3-Wre25 RTD:pt100.Cu50 DC voltage:0~5V.1~5V,0~10V DC Current :4~20mA |
| Inoput range | K:(-200~+300℃)S(-50℃~+1600℃).Wre3-Wre25(0~230℃)R:(-50℃~1600℃)T:(-200℃~~400℃)E(-200℃~900℃)(-200℃~1200℃)B(350℃~1800℃)pt100(-99~600.0℃)Cu50(-50℃~150℃) |
| Display | Two lines,Four digits,℃ |
| Accuracy | ±0.5% or ±1 units of full input range |
| Control mode | PID,on-off |
| Output mode |
Relay contact:3A at 240VAC SSR:12VDC Current:4~20mA Voltage:0~10V |
| Alarm | upper-limit bias alarm |
| Power consumption | <2Watt |
| Power supply voltage rating | 85~265VAC/50~60HZ |
| Dimension | Rex0c70072*72*100mm |
Caution:
*Only clean the instrument when power off.
*Please use a soft cloth of cotton paper to clean up the stain on the display.
*Dot not clean up or touch the display by hard matters in case of any scrach.
*Never use sharp&hard matters such ass screwedrivers or ball pan to touch the buttons on the panel,in case of any scrath or damage.
