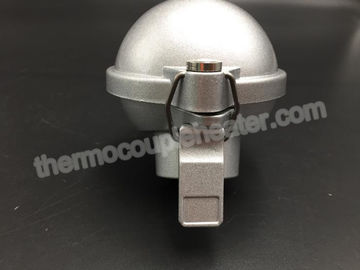

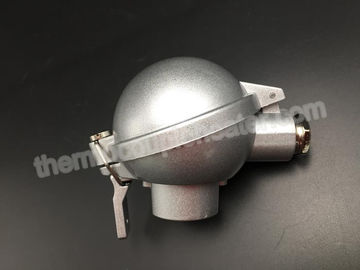

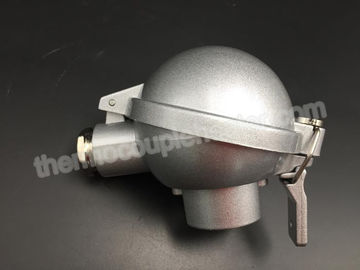

DAN / BUZ / DAN Thermocouple RTD Connection Head For Industrial Assembly

DAN / BUZ / DAN Thermocouple RTD Connection Head For Industrial Assembly

1. Description:

Thermocouple heads provide the means for making connection between thermocouple and extension wire, and protect the connection against corrosion, abrasion and breakage caused by handling. Thermocouple heads are easy to install and are convenient for checking purposes. An outlet for conduct connection is provided with a selection of threaded outlet sizes for the protection tube.

Weatherproof Head with Internal Threads Weatherproof heads provide complete protection from weather in outdoor locations. In sheltered areas they provide greater protection in chemical and petroleum plants. The screw on cover, with close fitting threads, tightens against a gasket. The internal threads are protected from ambient atmosphere by the gasket seal. Double lugs, integral with the cast

General Purpose Heads Available in aluminum or cast iron, these heads are superior in durability and convenience. A quick acting, tempered wire clamp holds the molded cover tightly against a gasket, making a positive seat. Aluminum head weighs 10 ounces; cast iron head weighs 27 ounces.

2. Specifications:

1. DAN Thermocouple head

2. Type: DAN, all type available

3. Material: Aluminum(ADC-12), Stainless steel

4. Wire entry: M20*1.5, NPT1/2’’, G1/2’’

5. Probe entry: M24*1.5, M16*1, G1/2’’, NPT1/2’’

6. Standard wire entry and probe entry;

7. Wide range of specification;

8. High precision painting

9. Material: Aluminum Alloy,

10. Approved IEC529 IP65

11. Terminal block: 2P, 3P, 4P, 6P ,8P

12. Terminal block material: bakelite or ceramic.

13. Accessory: cover sealing and cable gland sealing in silicone free material

14. Protection level: IP65 of IEC529 Enclosure protection class

15. Place of Origin: China (Mainland)

16. Eco-friendly: Yes

17. MOQ: 50PCS

18. Certificate: ISO,

19. Making sample time: all type in stock

20. Trade term: FOB, EXW, CIF, CFR

21. Payment term: T/T, Western Union, Paypal

3. Technical Drawing

4. Competitive Advantage:

1. Beautiful outlook and good performance

2. Suitable for all kinds of thermocouple or thermal resistance

3. Small minimum order quantity

4. All sizes available

5. Make head with logo according to your demand

6. Excellent corrosion resistance

7. Moisture and dust-resistant

8. High precision painting

9. Mullti explosion-proof type, good explosion-proof performance

10. Wide measuring range

11. High mechanical strength and good pressure-resistant performance

12. Certain modification can be done according to your designs

5. Applications:

• Excellent appearance with fine finish.

• Assembling easily.

• Available for Spring-loaded blocks.

• H=19 33 36 40mm size is suitable for various types of blocks, an international design.

• Can assemble with thermocouple and RTD
