Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 100 meters |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton or as per your request |
| Delivery Time: | 3~7 working days |
| Payment Terms: | T/T, Western Union, L/C, Paypal |
| Supply Ability: | 300000 Meters per Month |
| Name: | Armoured K Type Thermocouple With SS Sheath And Mineral Insulated Cable | Calibration: | Type K |
|---|---|---|---|
| Accuracy: | Class I | Sheath Material: | SUS316 |
| Application: | Industrial Temperature Sensor | Core: | Duplex, Triplex |
| Diameter: | From 0.5-12.7mm | Insulation Material: | 99.6% High Purity MgO |
| Highlight: | mineral insulated metal sheathed cable,mineral insulated heating cable |
||

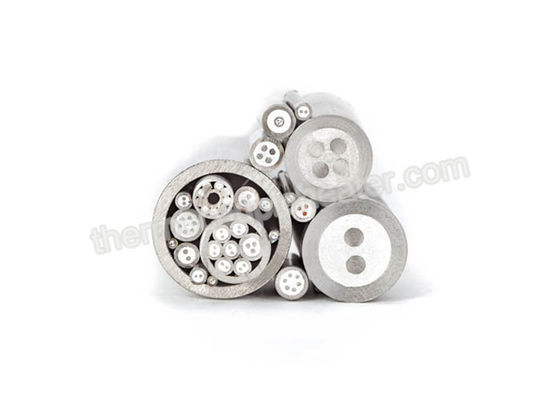

Armoured K type thermocouple with SS sheath
and Mineral insulated cable
Feature
Specification
| Rated voltage U0/U | 450-750V/0.6KV-1KV |
| Standard | IEC227 |
| Max.Working temperature | a.Not exceeding 70℃ for general types;b.Not exceeding 90℃ for XLPE; |
| Conductor | Copper |
| Insulation | PVC/PE |
| Sheath | YES |
| Cross section area | 0.5-10mm ² |
| Cores | as your need |
| Packing | as your requirement |
| Certification | ISO/IEC/CCC |
| Remark | Print&pack as your requirement |
| Outside Sheath Diameter available | 0.25mm-12.7mm |
| Calibration Available | J, K, T , E , N, S, R, B |
| Sheath Material |
304 Stainless Steel 316 Stainless Steel 310 Stainless Steel Inconel 600 Incoloy800 |
| Sheath Material | Maximum Temperature In Air | Melting Temperature |
| SS304 | 900℃ | 1405℃ |
| SS321 | 870℃ | 1400℃ |
| SS316 | 925℃ | 1370℃ |
| SS310 | 1090℃ | 1405℃ |
| INC600 | 1090℃ | 1400 |
Company introduction
Wuhan Global Metal Engineering Co., Ltd (GME) professionally manufactures electric heaters, temperature sensors(thermocouples & RTDs), sacrificial anode, temperature controller and the related accessories primarily to industry since year 1995. After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries in the world.
RFQ
1.Q:Are you a factory or trading company?
A:GME cable is a cable manufacturing base in Wenzhou,China,with more than 500 workers.
2.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if checked available,Freight Charge normally will be on buyer’s account.
3.Q:How does your factory do regarding quality control?
A: Changcheng cable group has ISO9001 and ISO14004 certificate and strict QC system,we deliver only qualified cable.
4. Have you ever supplied cables to our country?
A: GME Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
5. What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables.
Any questions you have, please kindly contact me.
Armoured K type thermocouple with SS sheath
and Mineral insulated cable
