Multi Cavities Hot Runner Temperature Controller for Industrial Process Control System

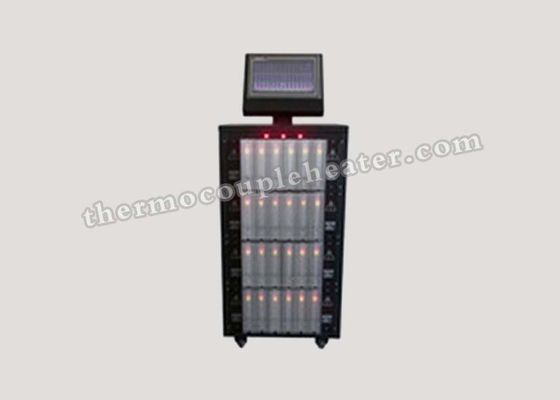

Large Image : Multi Cavities Hot Runner Temperature Controller for Industrial Process Control System

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE/UL/CSA/ISO

Payment & Shipping Terms:

Minimum Order Quantity:	I PC
Price:	USD800-10000 FOB Shanghai /pc
Packaging Details:	Export Carton Package or as Customer Request
Delivery Time:	7-15 Working Days
Payment Terms:	T/T, Western Union, L/C,PayPal
Supply Ability:	10pcs/Month

Contact Now

Detailed Product Description

Product Name:	Touch Screen Temperature Controller	Application:	Industrial Process Control System
Temperature Unit:	°C Or °F	Temperature Range:	0-450°C
Thermocouple Type:	K/J Optional	Control Accuracy:	±0.5 °C
Highlight:	multi-zone temperature controller , hot runner temperature controller

Touch screen Temperature Controller for Industrial Process Control System

1. Description:

Extremely powerful and intuitive temperature controllers offer integrated, adaptive processing control for your complete hot runner system. Temperature control zones with valve gate sequence control. System software is programmed, tested and optimized for your specific hot runner mold.

64zone multi cavities touch screen temperature controller for hot runner plastic injection, blowing, extrusion machine

2. Specifications:

Control Mode	Auto & Manual
Temperature Range	0°C-450°C
Control Accuracy	±0.5 °C
Compensated Manual Control	yes
Thermocouple type	J/K optional
Advance diagnostics Indicators	yes
Temperature unit	°C or °F
Temp control range	0°C to 450°C
T/C cold junction compensation	Dynamic tracking
Point Load	15A/30A optional
Relative humidity	20%-95%
Operational Mode Priority	OFF MODE
Input Voltage	AC185V-245V
Frequency	50/60HZ

Table 1 Adjustment period comparisons

		First cycle			Second cycle			Third cycle
Brand	Set	Measured (High)	Measured (low)	period	Measured (High)	Measured (low)	period	Measured (High)	Measured (low)	period
MASTIP	200℃	213.6	192.7	8′00″	201.2	196	8′20″	200	196.7	3′44″
Ours	200℃	205.2	199.9	1′38″	201.8	200.5	2′36″	201	200.5	2′45″
MASTIP	230℃	236.5	220.1	4′22″	230.3	226.3	3′36″	227.8	227.1	3′40″
Ours	230℃	233.5	228.7	1′30″	231.1	229.2	2′14″	230.5	229.4	1′41″
MASTIP	260℃	272	255.7	5′05″	260.7	256.3	4′09″	259.9	256.4	4′00″
Ours	260℃	263	257.9	1′43″	260.6	258.2	1′22″	260	258.6	1′30″

Table 2

Set	Brand	First cycle		Second cycle		Third cycle
Set	Brand	Measured(low)	Measured (High)	Measured (low)	Measured(high)	Measured (low)	Measured (high)
200℃	DME	195	204	196．1	203．8	195．5	204
	MASTIP	196	201．2	196．7	200．4	197．3	199．7
	Ours	200．5	201．8	200．5	201	200	200．9
Set	Brand	First cycle		Second cycle		Third cycle
Set	Brand	Measured(low)	Measured (high)	Measured(low)	Measured(high)	Measured(low)	Measured (high)
230℃	DME	228．3	231．3	228．7	229．6	228．6	229．4
	MASTIP	226．3	230．3	227．1	227．8	227．5	231．3
	Ours	229．2	231．1	229．4	230．5	229．6	230．2
Set	Brand	First cycle		Second cycle		Third cycle
Set	Brand	Measured(low)	Measured (high)	Measured(low)	Measured(high)	Measured(low)	Measured (high)
260℃	DME	254．1	263．5	254．6	262．4	255．6	262．6
	MASTIP	256．3	260．7	256．4	259．9	257	257．7
	Ours	258．6	260．6	258．6	260	258．7	259．6

3. Applications:

This kind of controller could auto induct to any heating models and greatly improve the work capacity

Inner and outer ring to dynamic tracking the ambient temperature effectively prevent the influence of ambient temperature during measurement.

Cold compensation with thermostat of outer ring makes the control measure more precision through removing the ambient influence dynamically

Controller can easy detect to T/C reversed or T/C Open, and will be operated according to error information and control mode when detected the problems.

4. Competitive Advantage:

High accuracy

Fast reaction

12 /24 /36 /48 zones is available
