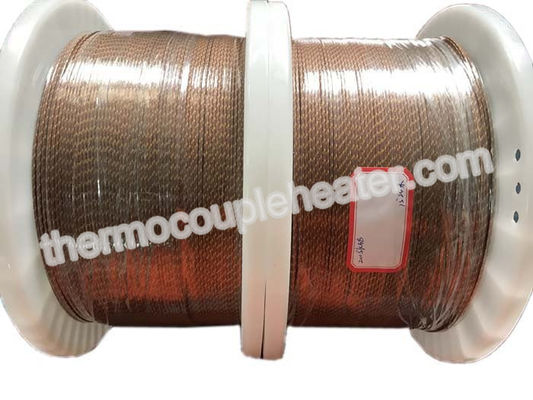

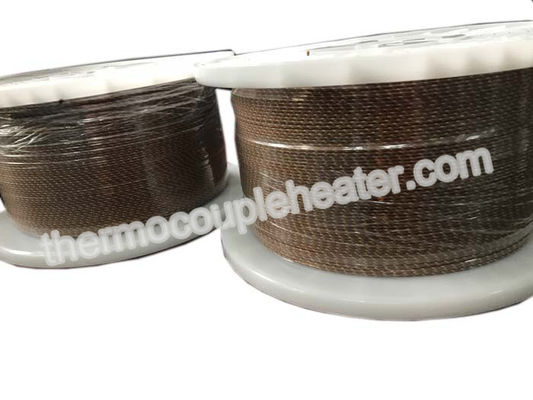

Type K Fiberglass Thermocouple Compensating Cable 24AWG Solid , American Standard

Type K Fiberglass Thermocouple Compensating Cable 24AWG Solid , American Standard

    • Type K Fiberglass Thermocouple Compensating Cable 24AWG Solid  , American Standard
    • Type K Fiberglass Thermocouple Compensating Cable 24AWG Solid  , American Standard
    • Type K Fiberglass Thermocouple Compensating Cable 24AWG Solid  , American Standard
  • Type K Fiberglass Thermocouple Compensating Cable 24AWG Solid  , American Standard

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE/UL/CSA/ISO
    Model Number: FB+FB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000Meter
    Price: USD 0.5-3 FOB Shanghai /Meter
    Packaging Details: Export Carton Package
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, L/C, Western Union, PayPal
    Supply Ability: 100000Meter/Month
    Contact Now
    Detailed Product Description
    Product Name: Thermocouple Extension Wire Max Temperature: 400℃
    Wire Size: Customer’s Request Conductor Insulator Material: Fiberglass
    Sleeve: Fiberglass Structure: FB AND FB
    High Light:

    extension grade thermocouple wire

    ,

    compensating cable for k type thermocoupl

    24AWG Solid Type K Fiberglass Thermocouple Compensating Cable In American Standard



    Description:

    Thermocouple Compensating Cable (FB+FB), conductor are fiberglass insulated, overall fiberglass jacket,  Max. Environment temperature 400 ℃. Impregnated with silicone varnish is available upon request.
    Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided tinned brasses braided are also commonly used in the cable. Customers from different areas possibly require different color style for the cable, all color standard are available upon requests.

    Type K Fiberglass Thermocouple Compensating Cable 24AWG Solid  , American Standard

    Type K Fiberglass Thermocouple Compensating Cable 24AWG Solid  , American Standard





    Specifications:

    1 Calibration: Type K
    2 Conductor insulation material: Fiberglass
    3 Jacket insulation material: Fiberglass



    Type   Contractors Color Code
    K Wire size Section (mm’) AWG
    J 2X1/0.2   32 FB+FB ANSI
    E 2X1/0.5   24 FB+FB DIN
    T 2X1/0.65   22 FB+FB IEC
    N 2X1/0.8   20 FB+FB JIS
    S 2X7/0.2   24 FB+FB BS
      2X7/0.3   20 FB+FB NFC
          20 FB+FB



    Applications:

    Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range.

    The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.

    Multi-strand core or small diameter wire compensation can improve the flexibility of the line and make the connection convenient. Besides, It is easy to shield from outside interference and reduce the Road costs for measurement line.



    Thermocouple cable not only measurement errors but also can improve physical and mechanical properties of thermocouple line

    Competitive Advantage

    1. Our measurement accuracy of thermocouple cable can reach the level of grade 1
    2. The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)

    3. 10,000 meters without joints
