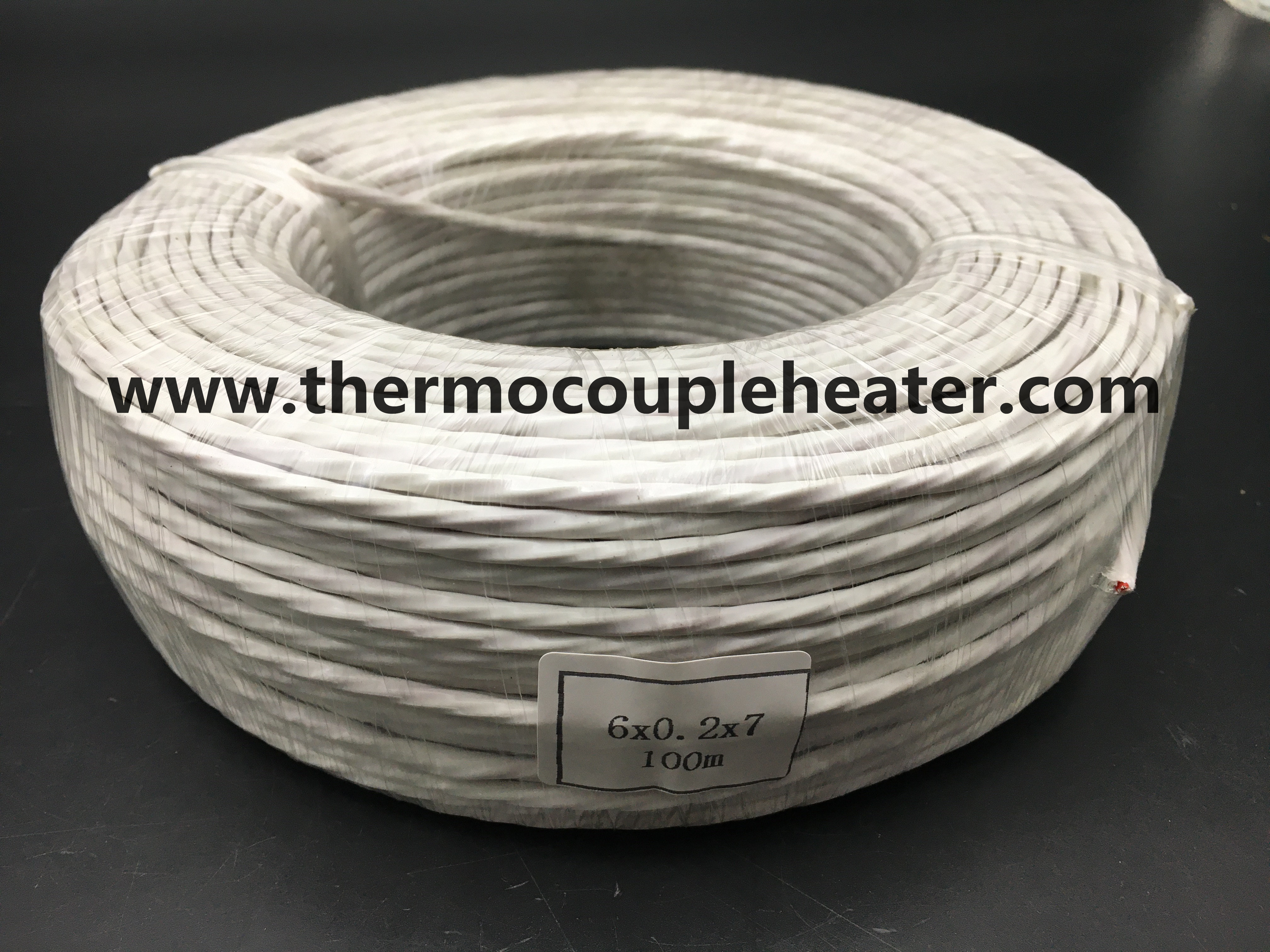

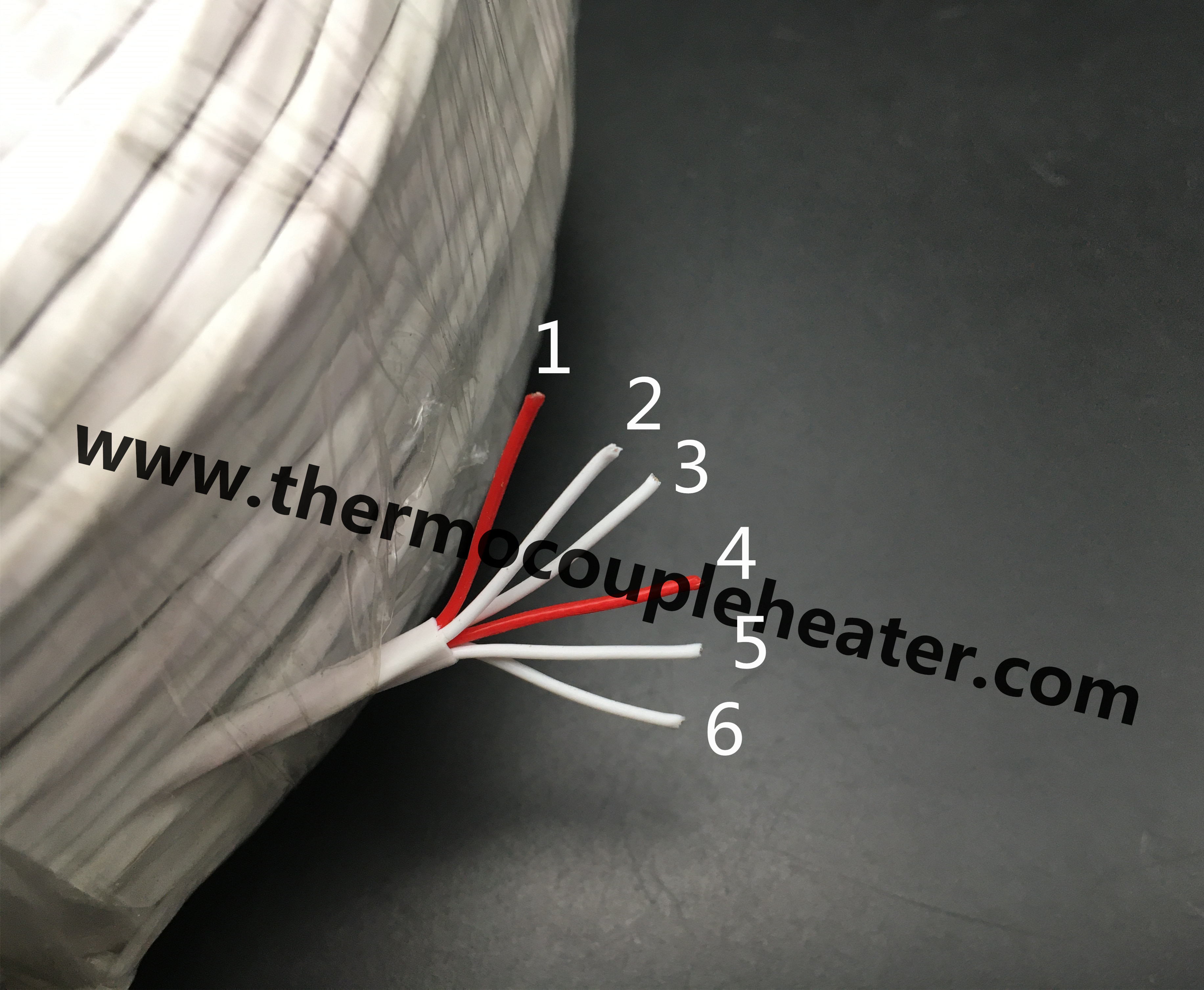

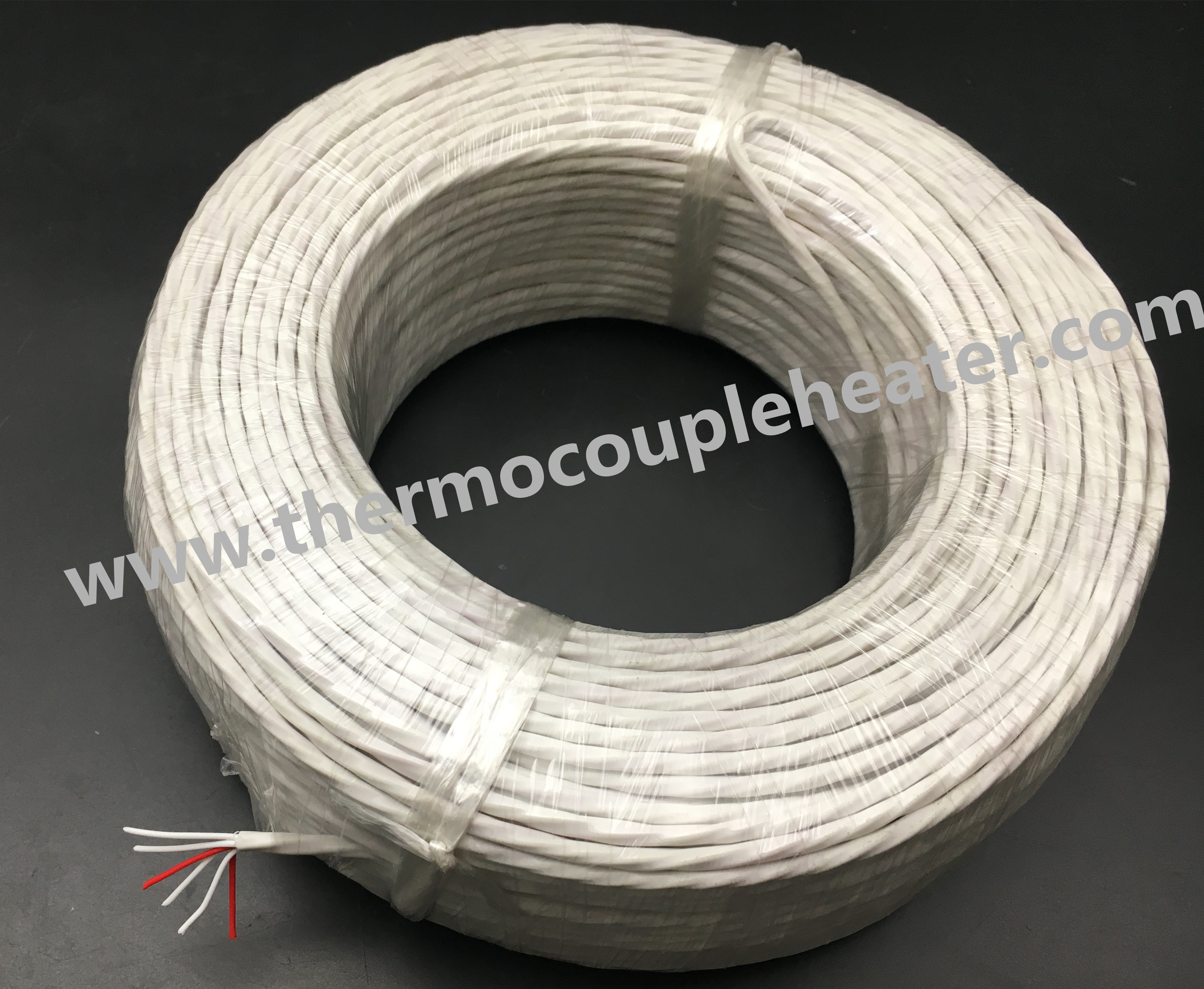

PT100 RTD Cable 6-Wire With PTFE Insulation

Large Image : PT100 RTD Cable 6-Wire With PTFE Insulation

Product Details:

Place of Origin:	China
Brand Name:	GME
Model Number:	TF+TF

Payment & Shipping Terms:

Minimum Order Quantity:	500 meters
Packaging Details:	Standard exporting package
Delivery Time:	5-15 days
Payment Terms:	L/C, Western Union, T/T, Paypal
Supply Ability:	1,000,000 meters per month

Contact Now

Detailed Product Description

Insulation Material:	PTFE	Jacket Material:	PTFE
Type:	RTD PT100	Core Material:	Cu / Ni
Dimension:	Customized	Temperature Range:	Up To 200℃
Color:	2 White / 1 Red, Or Customized	Application:	Connecting RTD Sensor And Instrument Machine
Highlight:	PT100 RTD Cable , PTFE Insulation PT100 RTD Cable

PT100 RTD Cable 6-Wire With PTFE Insulation

1. Brief Introduction

RTD cable is used to carry the RTD signals to control room or field mounted interments.

It is a type of instrumentation cable in 2,3,4,6 or 8 cores or possibly groups of pairs/triads/quads depending on the type of RTD being used and number of devices being monitored.

2. Specifications

Conductor Material	Nickel / Copper
Conductor Type	Stranded / Solid
Codnuctor Size	18-32AWG
No. of Core	2 / 3 / 4 / 6 / 8
Sheath Material	PTFE / Fiberglass / PVC / Silicone / Steel mesh

3. Order Code Example

When asking for quotations, customers are required to provide order specifications, including

- Type

- Conductor Size

- Constructure

- Color

- Order Quantity

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728
