Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
|Place of Origin:||China|
|Minimum Order Quantity:||1000Meter|
|Price:||USD 0.5-3 FOB Shanghai /Meter|
|Packaging Details:||Export Carton Package|
|Delivery Time:||7-15 Working Days|
|Payment Terms:||T/T, L/C, Western Union, PayPal|
|Product Name:||Thermocouple Extension Wire||Max Temperature:||400℃|
|Wire Size:||Customer’s Request||Conductor Insulator Material:||Fiberglass|
|Jacket:||Stainless Steel||Structure:||FB AND FB AND SS|
type k thermocouple extension wire,
extension grade thermocouple wire

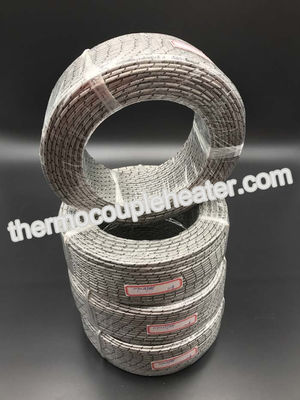

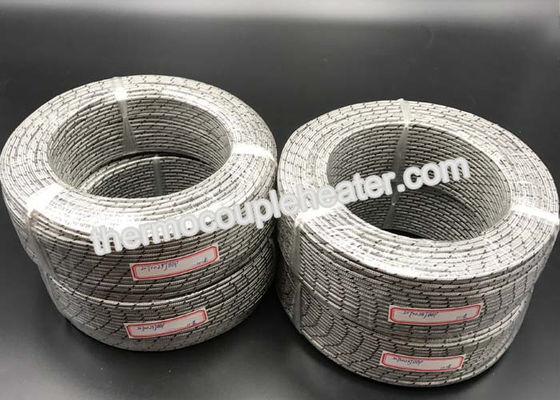

24AWG Type K Fiberglass And Fiberglass Thermocouple Compensating Wire
Thermocouple Compensating Cable (FB+FB), conductor are fiberglass insulated, overall fiberglass jacket, Max. Environment temperature 400 ℃. Impregnated with silicone varnish is available upon request.
Commonly there are four types of insulation material for extension cable: fiberglass, Teflon, PVC and silicone. Stainless steel braided tinned brasses braided are also commonly used in the cable. Customers from different areas possibly require different color style for the cable, all color standard are available upon requests.
1 Calibration: K
2 Conductor insulation material: Fiberglass
3 Inner shield material: SSB
4 Jacket insulation material: Fiberglass and stainless steel braided shielding
5 Outer shield material: SSB
|K||Wire size||Section (mm’)||AWG|
Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range.
The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.
Multi-strand core or small diameter wire compensation can improve the flexibility of the line and make the connection convenient. Besides, It is easy to shield from outside interference and reduce the Road costs for measurement line.
Thermocouple cable not only measurement errors but also can improve physical and mechanical properties of thermocouple line
1. Our measurement accuracy of thermocouple cable can reach the level of grade 1
2. The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
3. 10,000 meters without joints
