Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Minimum Order Quantity: | 500 M |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 10-20 working days after received your payment |
| Payment Terms: | T/T, Western Union, Paypel |
| Supply Ability: | 100000 m per month |
| Calibration: | K Type | Size: | 2 X 4/0.65 |
|---|---|---|---|
| Insulation Material: | PVC+PVC | Package: | In Roll Or Spool |
| Color Code: | ANSI, DIN, LEC, ETC | Color: | Red, Black, Blue, Yellow |
| Max. Temperature: | 80°C | ||
| High Light: | extension grade thermocouple wire,compensating cable for k type thermocoupl |
||

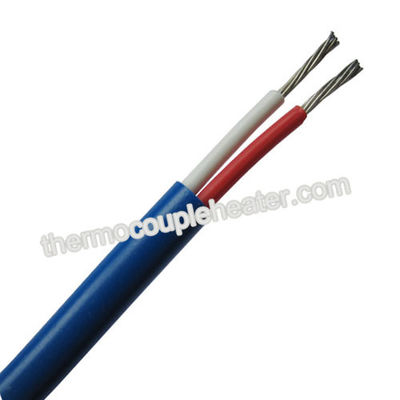

PVC Insulation Thermocouple Compensating Cable K Type PVC Sheath
1. Introduction
Thermocouple compensating cables are available in a variety of connector and jacket configurations to make connections between process and instrumentation easy.
2. Application
Thermocouple compensation cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouples’ reference junction.
Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided and tinned brass braided is also commonly used in the cable.
Customers from different areas possibly require different color style for the cable, all color standard are available upon request.
Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range.
The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.
3. Competitive Advantage
| Type | Contractors | Color Code | |||
| K | Wire size | Section (mm’) | AWG | ||
| J | 2X1/0.2 | 32 | FB+FB | ANSI | |
| E | 2X1/0.5 | 24 | FB+FB | DIN | |
| T | 2X1/0.65 | 22 | FB+FB | IEC | |
| N | 2X1/0.8 | 20 | FB+FB | JIS | |
| S | 2X7/0.2 | 24 | FB+FB | BS | |
| 2X7/0.3 | 20 | FB+FB | NFC | ||
| 20 | FB+FB | ||||
4. Delivery
