| Model Number: | REX-C100 Temperature Controller | Input Range: | Pt100(-200~+600°C) , Cu50(-50-+150°C) |
|---|---|---|---|
| Product Name: | C100 Intelligent PID Temperature Controller | Input Signal: | Thermocouple,RTD |
| Alarm: | 4 Level Alarm | Input Linear Current: | 0~10Ma,0~20mA,4~20mA |
| Highlight: | multi-zone temperature controller,hot runner temperature controller |
||

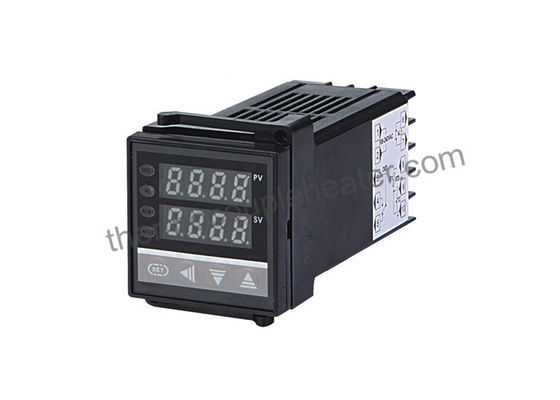

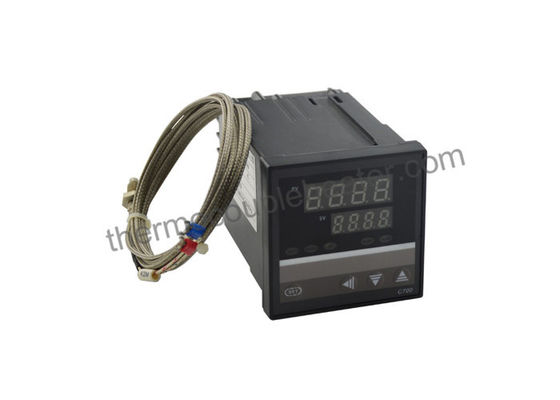

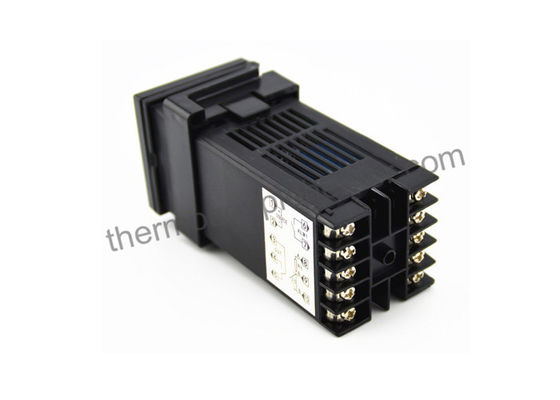

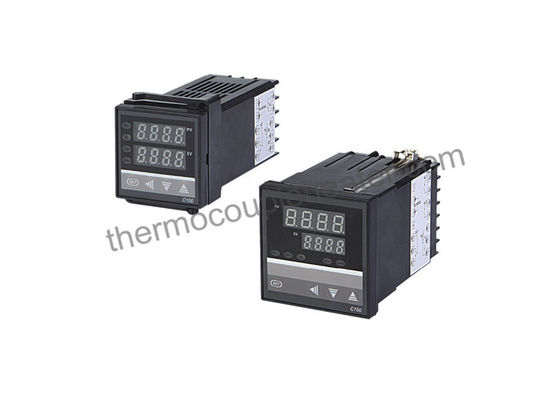

REX - C100 PID xmtg Hot Runner Temperature Controller , intelligent temperature controller
General Description
1. The product adopts digital calibration technology for input measurement and support various thermocouples and resistances, max resolution could reach to 0.01°C.
2. With advanced PID intelligent control algorithm and auto tuning (AT) function, no overshoot.
3. The advanced modular structure provides better user experience and easy maintenance. Various output options are able to meet requirements of different applications.
4. Friendly and customized operating interface.
5. Editable permission level and able to set password.
6. 100-240VAC power supply or 24VDC adaptor as power source.
7. Various installation dimensions options.
8. Anti-interference performance comply with EMC under harsh industrial environment.
Specitications
| Input | |
| Thermocouple | K, S, R, E, J, N, T, B, WRe3-WRe25, WRe5-WRe26 |
| Thermal resistor | Pt100, Cu50 |
| Linear voltage | 0~5V, 1~5V, 0~1V, 0~100mV, 0~20mV, 0~500mV etc. |
| Linear Current | 0~20mA, 4~20mA or two-way transmitter |
| Optional extended input |
Together with above mentioned inputs, an additional input can be provided upon request. (Graduation index is needed) |
| Range | |
| Thermocouple |
K(-50~1300℃), S(-50~1700℃), R(-50~1700℃), E(0~800℃), J(0~1000℃), N(0~1300℃), T(-200~+350℃),B(200~1800℃) |
| Thermal resistor | Cu50(-50~+150℃), Pt100(-200~+600℃) |
| Linear Input | -9990~+32000 (shall be set by user in this range) |
| Accuracy | 0.3% |
| Resolution | 0.1°C for K, E, T, N, J, Cu50, Pt100;1°C for S, R |
| Sampling period | 8 times per second; (when digital filter parameter FILt=0, the period could be ≤0.5s) |
| Temp. drift | ≤0.015%FS /℃ (typical value is 80ppm/℃) |
| Alarm |
Top value, bottom value, deviation top value, deviation bottom value. Max. output 4 ways, provides function of temperately alarm free while power on |
| Control period | selectable between 0.24~300.0 seconds range |
| Control (output) mode | ||
| Relay (NO+NC) | 250VAC/2A,30VDC/2A,250VAC/1A ,30VDC/1A | |
|
TRIAC no contact discrete output (NO or NC) |
100~240VAC/0.2A(continuous),2A (20mS instantaneous, repeat period≥5s) |
|
| SSR Voltage output | 12VDC/30mA (to drive SSR) | |
| Thyristor trigger output | Can trigger TRIAC of 5~500A, a pair of inverse paralleled SCRs or SCR power module |
|
| Linear current output |
0~20mA or 4~20mA (Output voltage with X3 module: ≥10.5V; with X5 module: ≥7V |
|
| EMC | ±4KV/5KHz according to IEC61000-4-4; 4KV according toIEC61000-4-5. | |
| Isolation | Between power, relay and signal | ≥2300VDC |
| Between SSR voltage output and thermocouple input | ≥600VDC | |
| Power |
100~240VAC/50-60Hz,+10%,-15%, 120~240VDC or 24VDC/AC +10%, -15% |
|
| Power consumption | ≤5W | |
| Operation condition |
Temp. -10 ~ +60℃ Humidity ≤90%RH |
|
| panel dimension |
96×96mm, 160×80mm, 80×160mm, 48×96mm 96×48mm, 48×48mm, 72×72mm |
|
| Panel cutout dimension |
92×92mm, 152×76mm, 76×152mm, 45×92mm 92×45mm, 45×45mm, 68×68mm |
|
| Install depth | ≤100mm | |
