Industrial Hot Runner Digital Temperature Controller common 48X48 TC
Description:
1) GME's series controller has been designed for moulding applications with a low number of control zones. Extremely compact, these twin zone modular controllers can be fitted into cabinets.
2) It benefits from the latest manufacturing technology,including the optimum use of surface mounted electronic components(SMC) and becomes a new milestone in terms of performance, robustness and price
Specification:
1. Simple Modular Controller
2. More cabinet sizes to be selected
3. 15 Amps per zone
4. Press up/down to adjust set temperature
| Items |
Specification |
| Input Sensors |
K, J,R,S,B,E N,T |
| Accuracy |
1.0%FS±1℃ /0.1℃ |
| Resolution |
T: 0.1 C / RH: 0.1%, MODIFY |
| Sampling Time |
1 second or 5 second |
| Control Mode |
On-off control mode, Time proportion control,PID control |
| Power Supply |
220 VAC, 12V AC/DC; 45/60Hz |
| Environmental requirements |
Operating Temperature:0 ~ 50 ℃, Humidity ≤85% |
| Power Consumption |
≤6VA |
| Note |
Allow Modify In-place can be set by user |

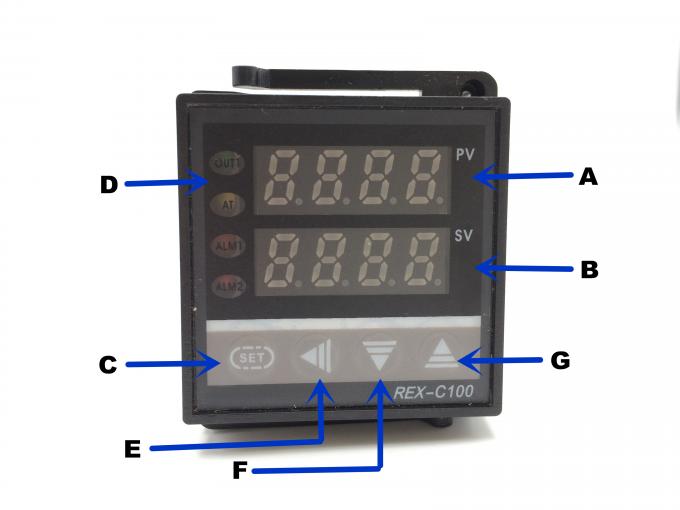

A:Measured value(PV) displayer(red)
Display measured values(PV)
Display parameter name
Measure the abnormal expression of the circuit
B: Set point (SV) displayer (green)
Display the set point
Display the parameter content
C: Button of setting(SET)
SV setting: press SET button, the single digital tube of the SV displayer will twinkle, then the other three buttons can be used to amend. Press SET button to confirm and return to the normal display.
D: Indicator light
Control the output indicator light (OUT)(green)
OUT: control the output indicator light, which will illuminate the warning light during the operation of the output
ALM1: illuminated during the output of the first alarm (upper limit)
ALM2: illuminated during the output of the second alarm (lower limit)
E:Shift key : enter the password set when it is displayed normally; however, it will be used as a shift key in the condition of parameter setting.
F:Decreasing button : adjust the set point when it is displayed normally; however, it will be used as a decreasing button in the condition of parameter setting.
G:Increasing button : adjust the set point when it is displayed normally; however, it will be used as an increasing button in the condition of parameter setting.
Application:
Widely used in the below areas:
Mechanical
Chemical
Ceramics
light industry
Metallurgy
Petrochemical
Heat treatment
Other industries, such as temperature, flow, pressure, liquid level and automatic control system
